1981 Yamaha XT250H_1981 Handle Switch Lever Diagram

← All diagrams

Find the part on the Handle Switch Lever diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

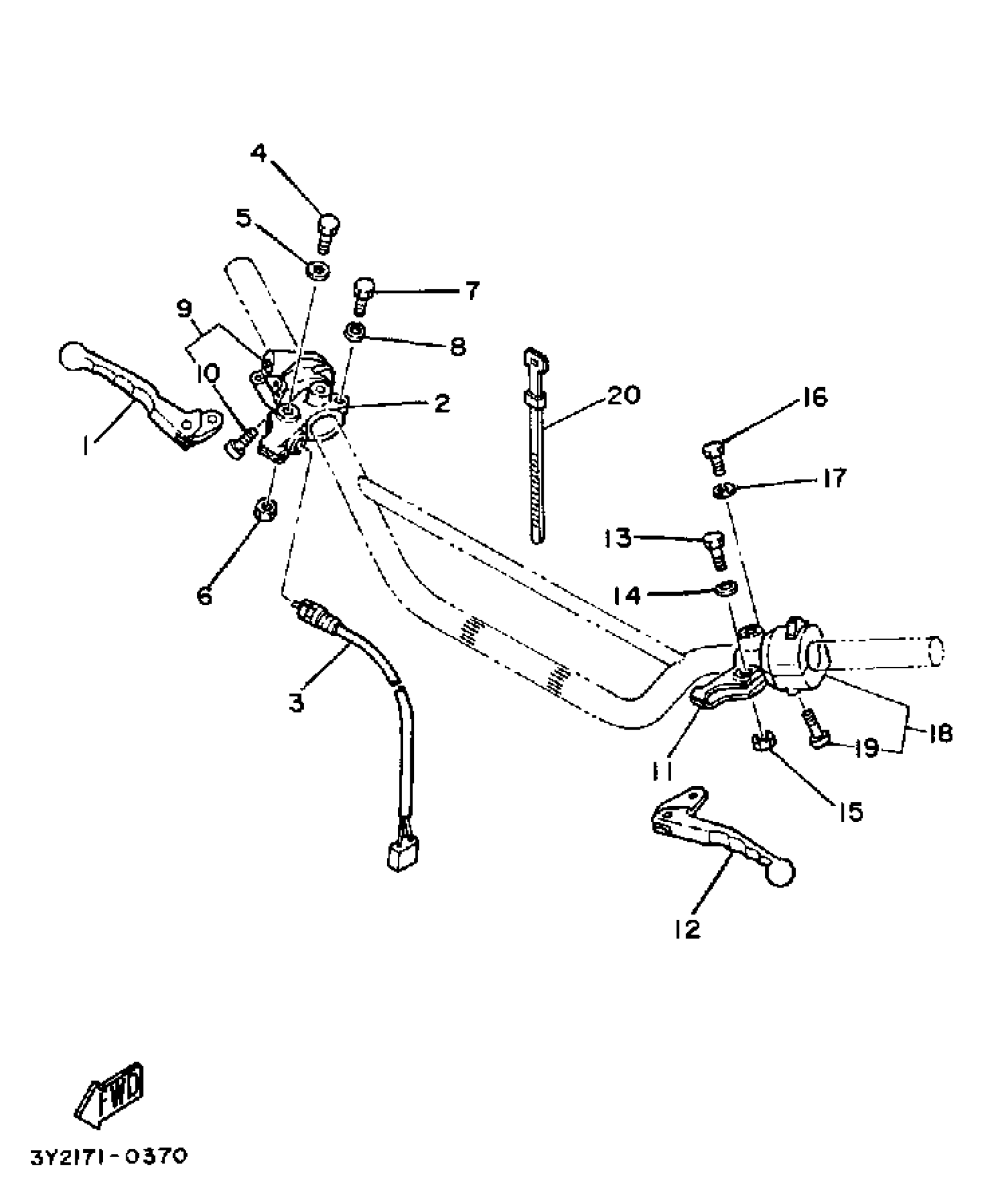

1981 Yamaha XT250H_1981 Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER R

2H0-83922-31-00

1
Out of stock

2

LEVER HOLDER ASSEMBLY 2

361-83920-93-00

1
Out of stock

3

FRONT STOP SWITCH ASSY

1M1-83980-31-00

1
Out of stock

4

BOLT(3GB)

90109-061F3-00

1
Out of stock

5

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

6

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

7

BOLT, HEXAGON

97013-06022-00

1
Out of stock

8

WASHER, SPRING

92995-06100-00

1
Out of stock

9

SWITCH, HANDLE 1

3Y1-83976-01-00

1
Out of stock

10

SCREW, PAN HEAD

98580-05020-00

1
Out of stock

11

HOLDER, LEVER 1

3Y6-82911-00-00

1
Out of stock

12

LEVER L

2H0-83912-31-00

1
Out of stock

13

BOLT

90109-06255-00

1
Out of stock

14

WASHER, PLATE

90201-08030-00

1
Out of stock

15

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

16

BOLT, HEXAGON

97013-06022-00

1
Out of stock

17

WASHER, SPRING

92995-06100-00

1
Out of stock

18

SWITCH, HANDLE 3

1M1-83973-50-00

1
Out of stock

19

SCREW, PAN HEAD

98580-05020-00

1
Out of stock

20

BAND, SWITCH CORD

437-83936-01-00

—
Out of stock
