1982 Yamaha XT125 (XT125J) Swing ARM Diagram

← All diagrams

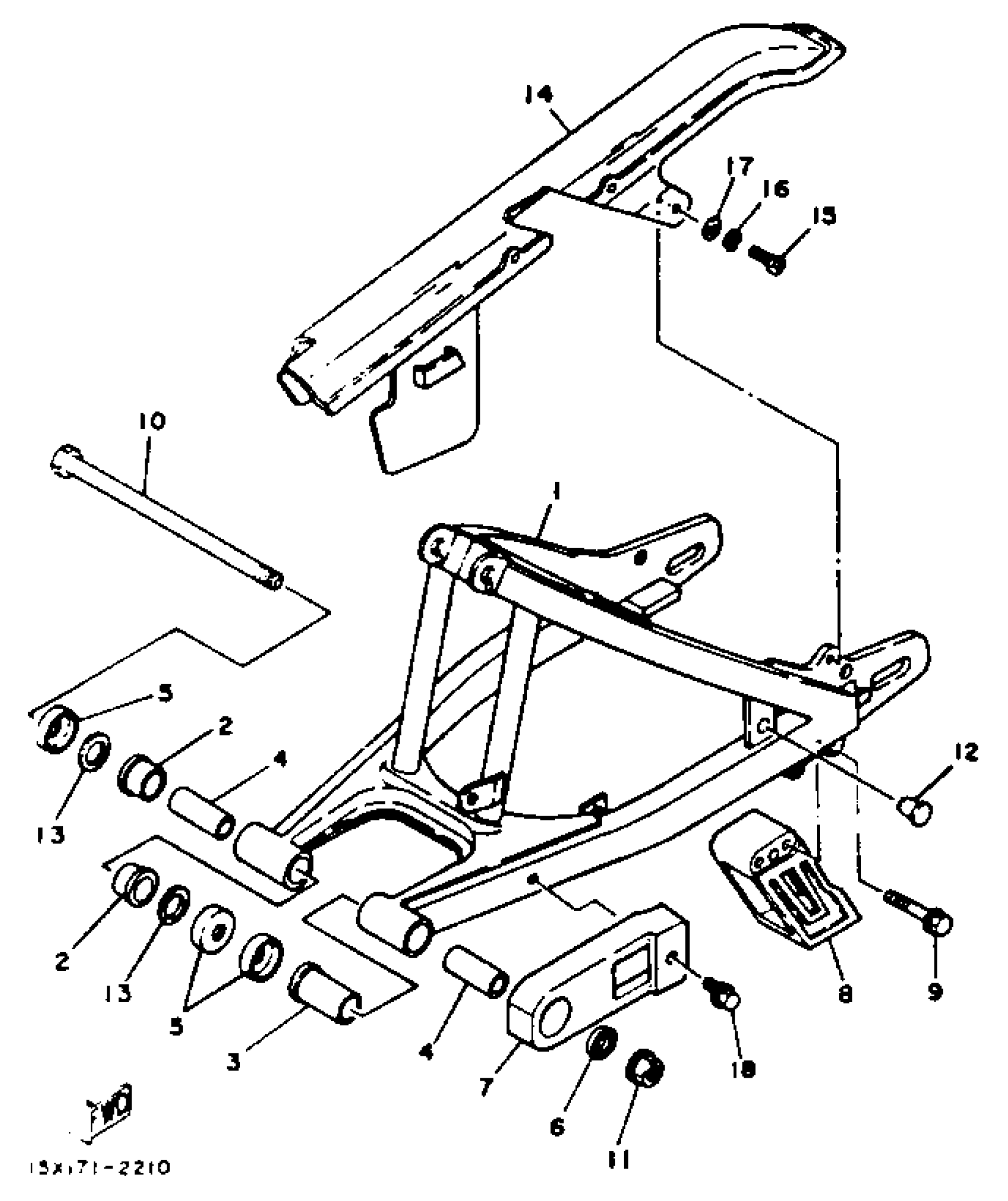

Find the part on the Swing ARM diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT125 (XT125J) Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

15A-22110-01-35

1
Out of stock

2

BUSH 1

15A-22123-00-00

1

$25.31

In stock

3

BUSHING (401-22123-00)

90386-18028-00

1

$21.40

In stock

4

COLLAR(J45)

90387-124R8-00

1
Out of stock

5

COVER, THRUST 1

401-22128-01-00

1

$25.49

In stock

6

UNAVAILABLE IN PRICE BOOK

92109-18020-00

1
Out of stock

7

SEAL, GUARD

15A-22151-01-00

1
Out of stock

8

GUARD, CHAIN

10V-22153-00-00

1
Out of stock

9

BOLT, FLANGE

95817-06050-00

1
Out of stock

10

SHAFT, PIVOT

4V0-22141-00-00

1
Out of stock

11

NUT, SELF LOCKING (1M1)

90185-12072-00

1

$8.31

In stock

12

PLUG (3Y1)

90338-11111-00

—

$2.20

In stock

13

SHIM

401-22127-00-00

1

$6.62

In stock

14

CHAIN CASE ASSEMBLY

15A-22310-00-00

1
Out of stock

15

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

16

WASHER, SPRING

92907-06100-00

—
Out of stock

17

WASHER, PLATE (4L0)

90201-062A8-00

—

$6.23

In stock

18

BOLT, WITH WASHER (10V)

90119-05062-00

—

$5.45

In stock
