1982 Yamaha XT125 (XT125J) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

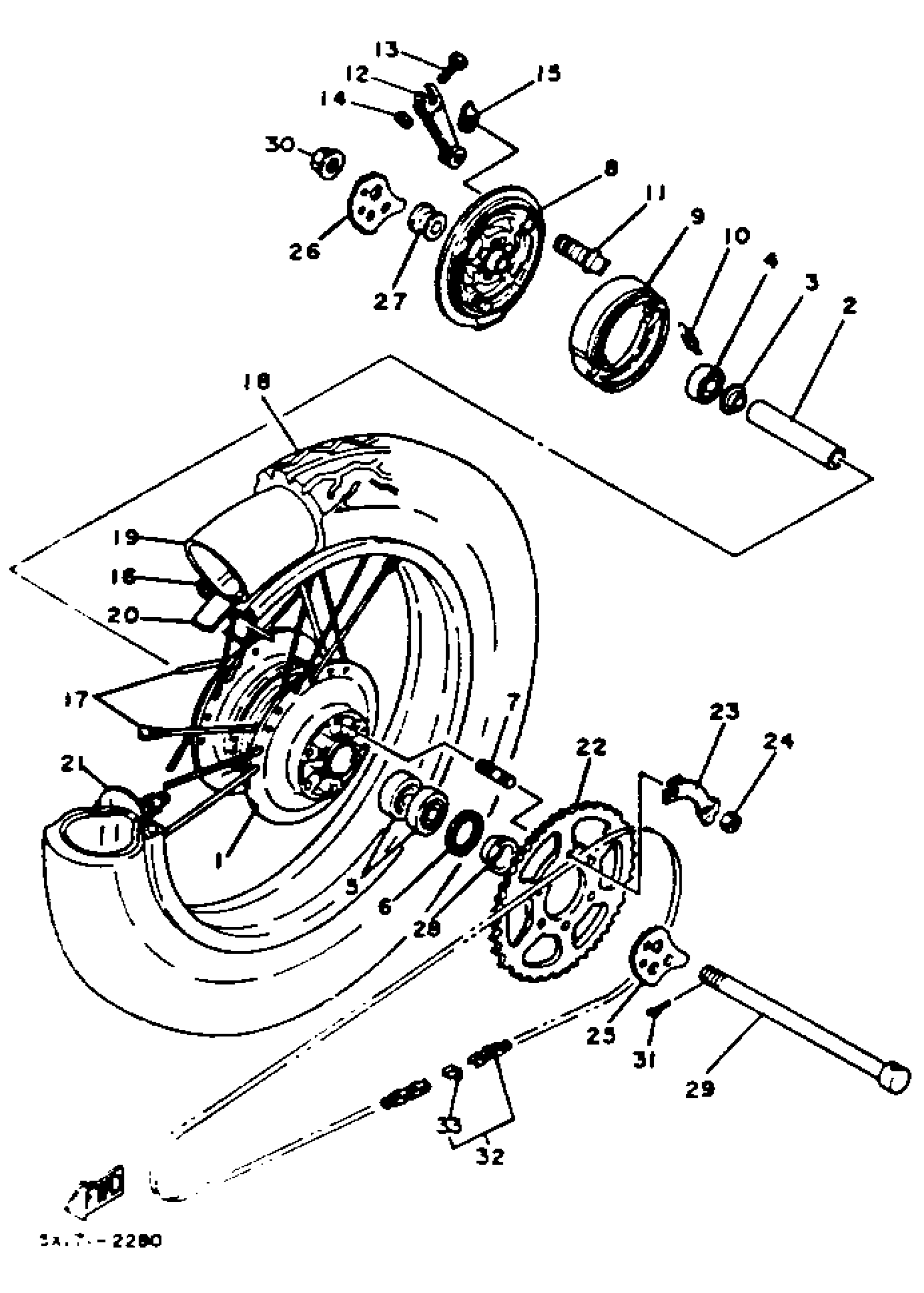

1982 Yamaha XT125 (XT125J) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

15A-25311-00-98

1
Out of stock

2

SPACER

90560-15313-00

1

$39.77

In stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

5

BEARING

93306-20205-00

1

$32.63

In stock

6

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

7

BOLT, STUD (483)

90116-08218-00

1

$7.08

In stock

8

PLATE, BRAKE SHOE

15A-25321-04-98

1
Out of stock

9

BRAKE SHOE KIT

4BE-W253E-00-00

1

$22.27

In stock

10

SPRING, TENSION

90506-15260-00

1

$5.75

In stock

11

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

12

LEVER, CAM SHAFT

2N3-25155-00-00

1

$25.17

In stock

13

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

PLATE, INDICATOR

4H7-2533A-02-00

1
Out of stock

16

RIM 1.85X17 (1.85-17) ((94418-1734, D, +'', F, ))

94418-17344-00

1
Out of stock

17

SPOKE SET, REAR (15A-25304-00)

15A-25304-01-00

1
Out of stock

18

UNAVAILABLE IN PRICE BOOK (100/80-17)

94-11017-1M-80

1
Out of stock

19

TUBE

94210-17211-00

1
Out of stock

20

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

—
Out of stock

21

SPACER, BEAD

3Y1-25394-00-00

—

$27.98

In stock

22

SPROCKET, DRIVEN (54T)

15A-25454-11-00

—

$20.34

In stock

23

WASHER, LOCK (3Y2)

90215-08160-00

—

$8.31

In stock

24

NUT (3Y2)

90170-08258-00

—
Out of stock

25

PULLER, CHAIN 1

5H0-25388-00-00

—
Out of stock

26

PULLER, CHAIN 2

5MP-25389-00-00

—
Out of stock

27

COLLAR

90387-15770-00

1
Out of stock

28

COLLAR (12T)

90387-155F2-00

—

$6.95

In stock

29

AXLE, WHEEL (2R7-25381-00)

401-25381-00-00

1
Out of stock

30

NUT, CASTLE (4V7)

90171-14031-00

—
Out of stock

31

PIN, COTTER

91490-30030-00

—

$7.15

In stock

32

SET, CHAIN

94A40-08120-00

—
Out of stock

33

JOINT, CHAIN

94682-51001-00

—

$4.42

In stock
