1982 Yamaha XT125 (XT125J) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

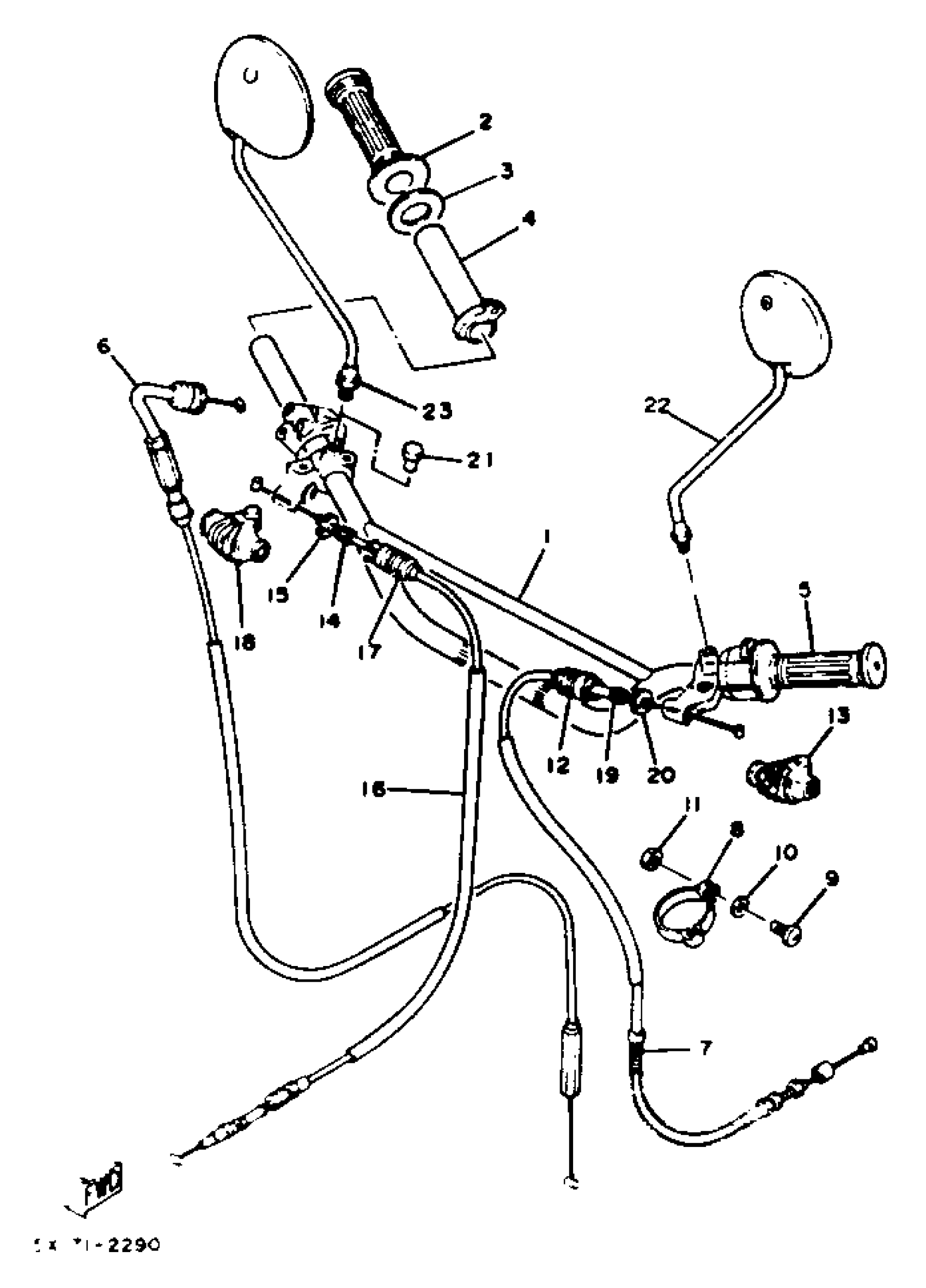

1982 Yamaha XT125 (XT125J) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

3G7-26111-00-00

—
Out of stock

2

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

3

RING, LEAF

1M1-26249-01-00

1
Out of stock

4

TUBE, GUIDE.

434-26243-00-00

1
Out of stock

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

6

CABLE, THROTTLE 1

15A-26311-00-00

—

$67.03

In stock

7

CABLE, CLUTCH

15A-26335-00-00

1
Out of stock

8

BAND

3Y1-26397-00-00

1
Out of stock

9

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

10

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

11

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

12

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

13

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

14

BOLT

90123-08002-00

1

$8.93

In stock

15

NUT

90179-08030-00

1

$3.78

In stock

16

CABLE, BRAKE

15A-26341-00-00

1
Out of stock

17

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

18

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

19

BOLT

90123-08002-00

1

$8.93

In stock

20

NUT

90179-08030-00

1

$3.78

In stock

21

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

22

MIRROR ASSY., 2

5Y1-26290-11-00

—
Out of stock

23

—

$45.60

In stock
