1982 Yamaha XT125 (XT125J) Rear Shocks Diagram

← All diagrams

Find the part on the Rear Shocks diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

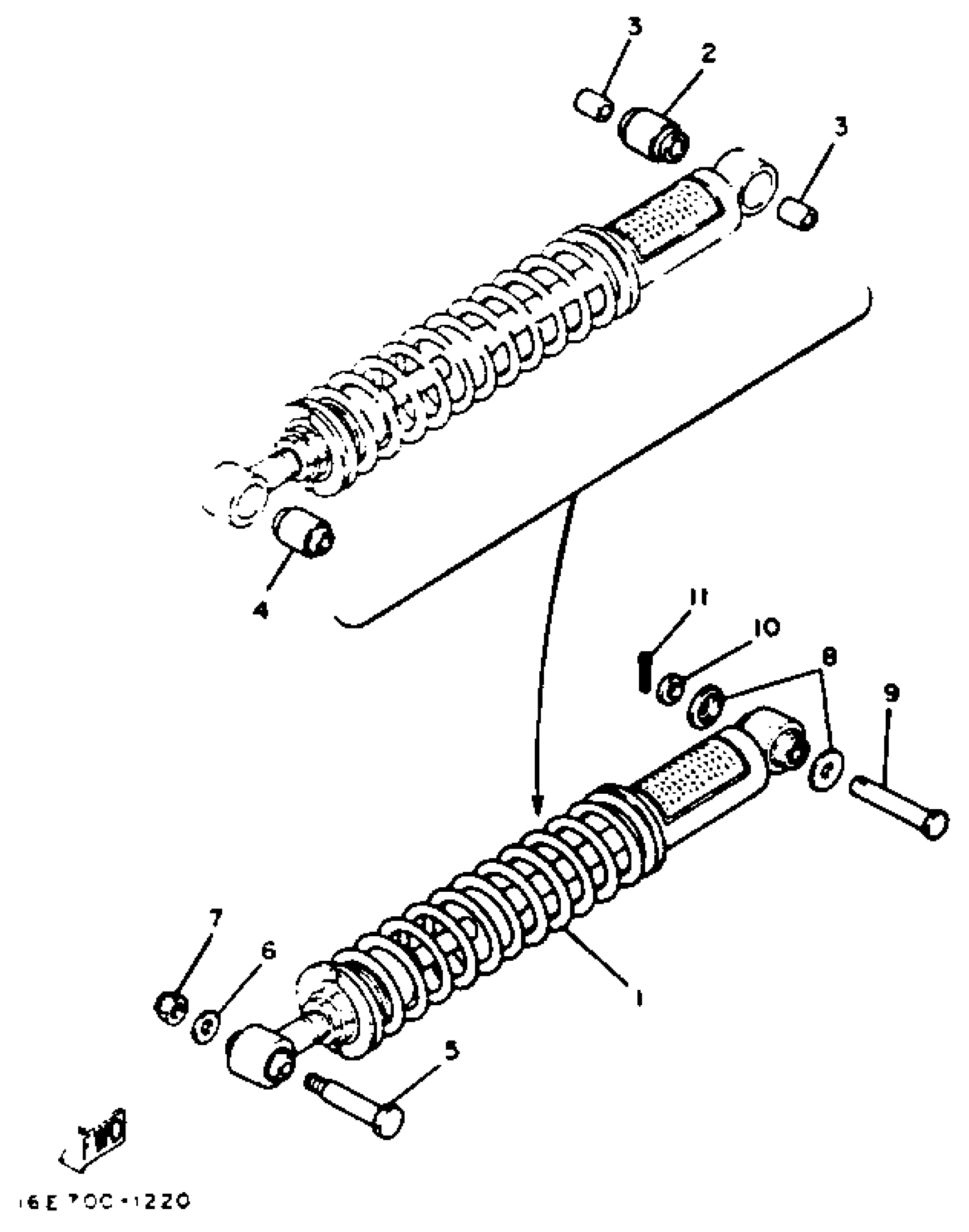

1982 Yamaha XT125 (XT125J) Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

15-E2221-00-00

1
Out of stock

2

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

—
Out of stock

3

BUSH, SOLID (1M1)

90380-12051-00

1
Out of stock

4

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

—

$40.54

In stock

5

BOLT (1M1)

90109-10453-00

—

$15.92

In stock

6

WASHER, PLATE (26H)

90201-102G9-00

1

$6.38

In stock

7

NUT, U

95617-10100-00

1
Out of stock

8

COVER, THRUST

1W1-22128-00-00

1

$17.09

In stock

9

PIN, CLEVIS (10V)

90240-12092-00

1

$7.63

In stock

10

WASHER, PLATE(663)

92990-12600-00

1

$6.68

In stock

11

PIN, COTTER

91490-30030-00

1

$7.15

In stock
