1982 Yamaha XT125 (XT125J) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

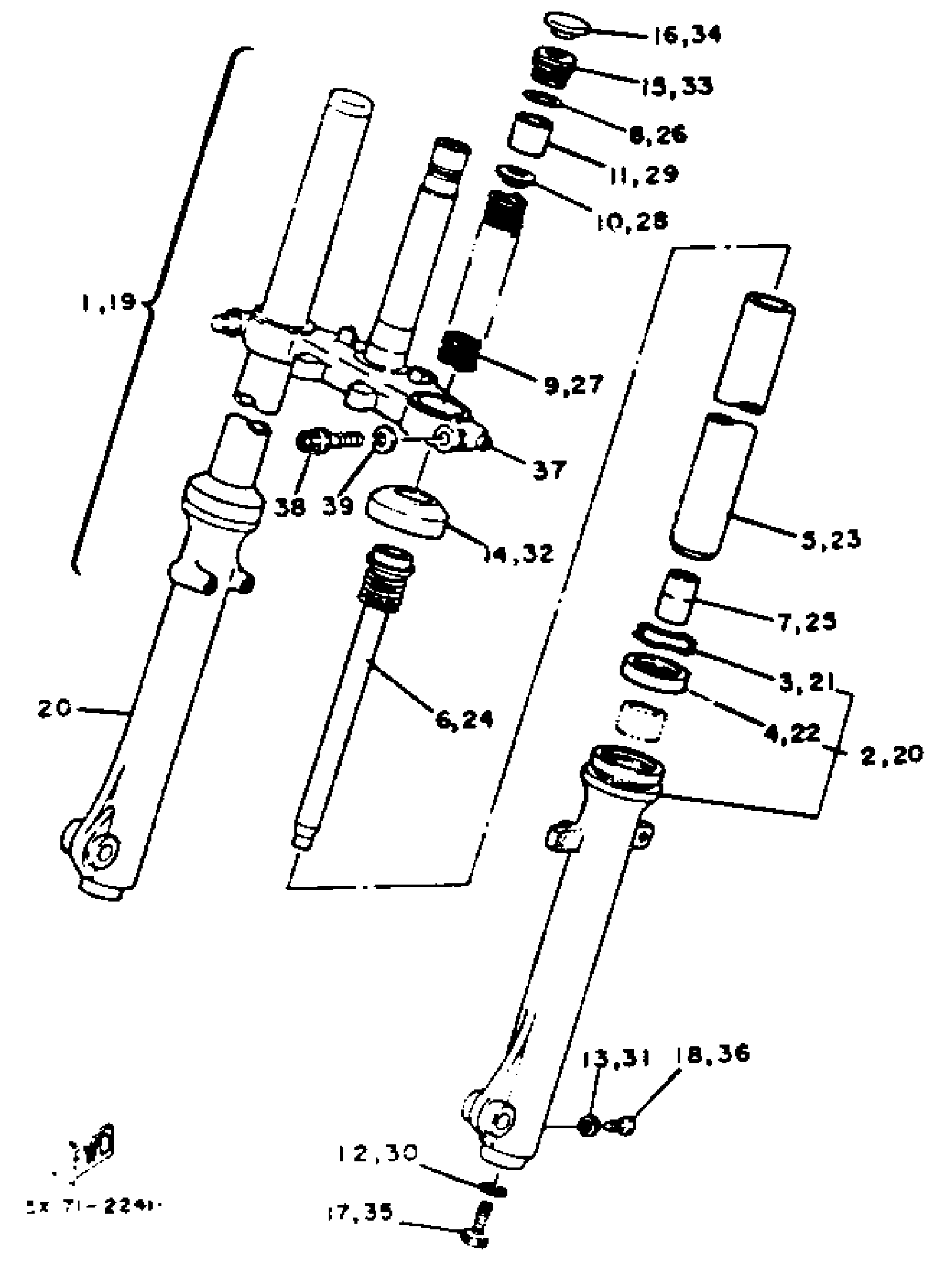

1982 Yamaha XT125 (XT125J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK (L.H)

15-E2310-20-00

1
Out of stock

2

. UNAVAILABLE IN PRICE BOOK

15-E2312-60-03

1
Out of stock

3

.. UNAVAILABLE IN PRICE BOOK

15-E2315-60-00

1
Out of stock

4

OIL SEAL

2K5-23145-00-00

—

$27.50

In stock

5

INNER TUBE 1

(15E-23110-00-00)

1
Out of stock

6

. UNAVAILABLE IN PRICE BOOK

15-E2317-00-00

1
Out of stock

7

SPINDLE

2K5-23173-00-00

1
Out of stock

8

PACKING(O-RING)

146-23114-00-00

1
Out of stock

9

. SPRING, FRONT FORK

15E-23141-00-00

1
Out of stock

10

. SEAT, SPRING UPPER

256-23142-60-00

1
Out of stock

11

. UNAVAILABLE IN PRICE BOOK

15-E2311-80-00

1
Out of stock

12

GASKET

509-23158-L0-00

1

$14.34

In stock

13

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

14

. SEAL, DUST

15E-23144-00-00

1
Out of stock

15

BOLT, CAP

1X0-23111-00-00

—
Out of stock

16

CAP

1X0-23168-00-00

—
Out of stock

17

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

18

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

19

UNAVAILABLE IN PRICE BOOK (R.H)

15-E2310-30-00

1
Out of stock

20

. UNAVAILABLE IN PRICE BOOK

15-E2313-60-03

1
Out of stock

21

.. UNAVAILABLE IN PRICE BOOK

15-E2315-60-00

1
Out of stock

22

OIL SEAL

2K5-23145-00-00

—

$27.50

In stock

23

INNER TUBE 1

(15E-23110-00-00)

1
Out of stock

24

. UNAVAILABLE IN PRICE BOOK

15-E2317-00-00

1
Out of stock

25

SPINDLE

2K5-23173-00-00

1
Out of stock

26

PACKING(O-RING)

146-23114-00-00

1
Out of stock

27

. SPRING, FRONT FORK

15E-23141-00-00

1
Out of stock

28

. SEAT, SPRING UPPER

256-23142-60-00

1
Out of stock

29

SPACER

(15E-23118-00-00)

1
Out of stock

30

GASKET

509-23158-L0-00

1

$14.34

In stock

31

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

32

. SEAL, DUST

15E-23144-00-00

1
Out of stock

33

BOLT, CAP

1X0-23111-00-00

—
Out of stock

34

CAP

1X0-23168-00-00

—
Out of stock

35

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

36

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

37

UNAVAILABLE IN PRICE BOOK

15-E2334-00-03

1
Out of stock

38

UNAVAILABLE IN PRICE BOOK

15-A2334-60-00

1
Out of stock

39

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock
