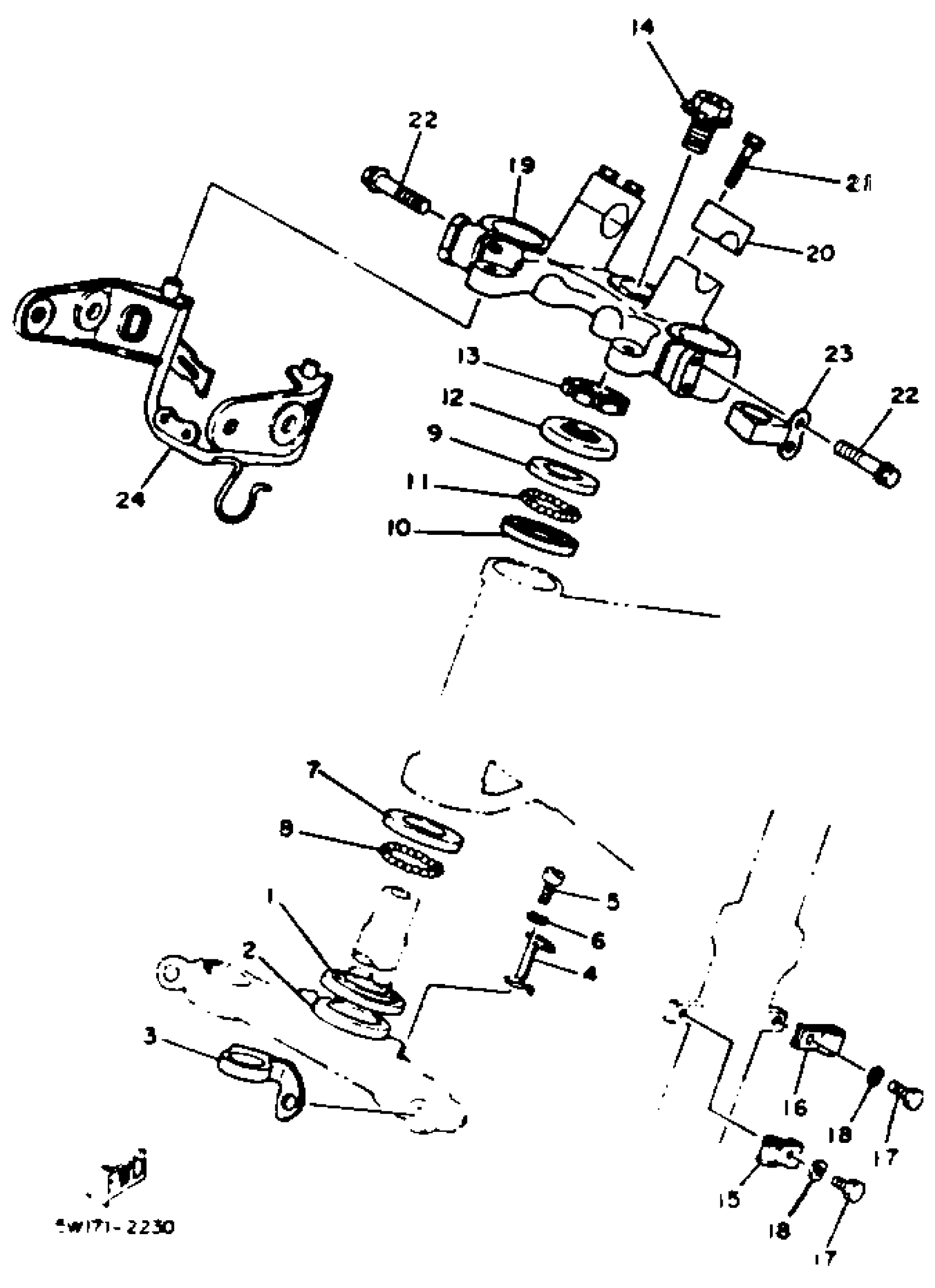

Yamaha XT125J (XT125) 1982 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$6.54

2

SEAL, DUST

164-23462-00-00

$5.98

3

GUIDE, CABLE

15A-23389-00-00

Unavailable

4

. GUIDE, CABLE

3Y1-2331E-00-00

Unavailable

5

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

6

WASHER, SPRING

92995-06100-00

$2.95

7

RACE, BALL 2

B6E-23412-00-00

$9.05

8

BALL

93501-04011-00

$5.84

9

RACE, BALL 1

BP2-23411-00-00

$7.83

10

RACE, BALL 2

BP2-23412-00-00

$5.33

11

BALL

93503-16003-00

$1.96

12

COVER, BALL RACE

122-23416-00-00

$5.98

13

NUT

90179-25004-00

$19.41

14

BOLT (2A2)

90105-14102-00

$4.81

15

HOLDER, CABLE 2

3Y1-23319-00-00

Unavailable

16

HOLDER, CABLE 2

3Y1-23319-00-00

Unavailable

17

BOLT, HEXAGON

97017-06012-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

CROWN, HANDLE

15E-23435-00-98

Unavailable

20

HOLDER, HANDLE UPPER

1E6-23441-00-00

Unavailable

21

BOLT, FLANGE

95817-08035-00

Unavailable

22

BOLT, FLANGE

95817-08040-00

Unavailable

23

HOLDER, CABLE

5Y1-23317-00-00

Unavailable

24

STAY, HEADLIGHT (15A-23174-00)

17T-23174-00-00

Unavailable
