2002 Kawasaki W650 (Canada Only) Taillight Diagram

← All diagrams

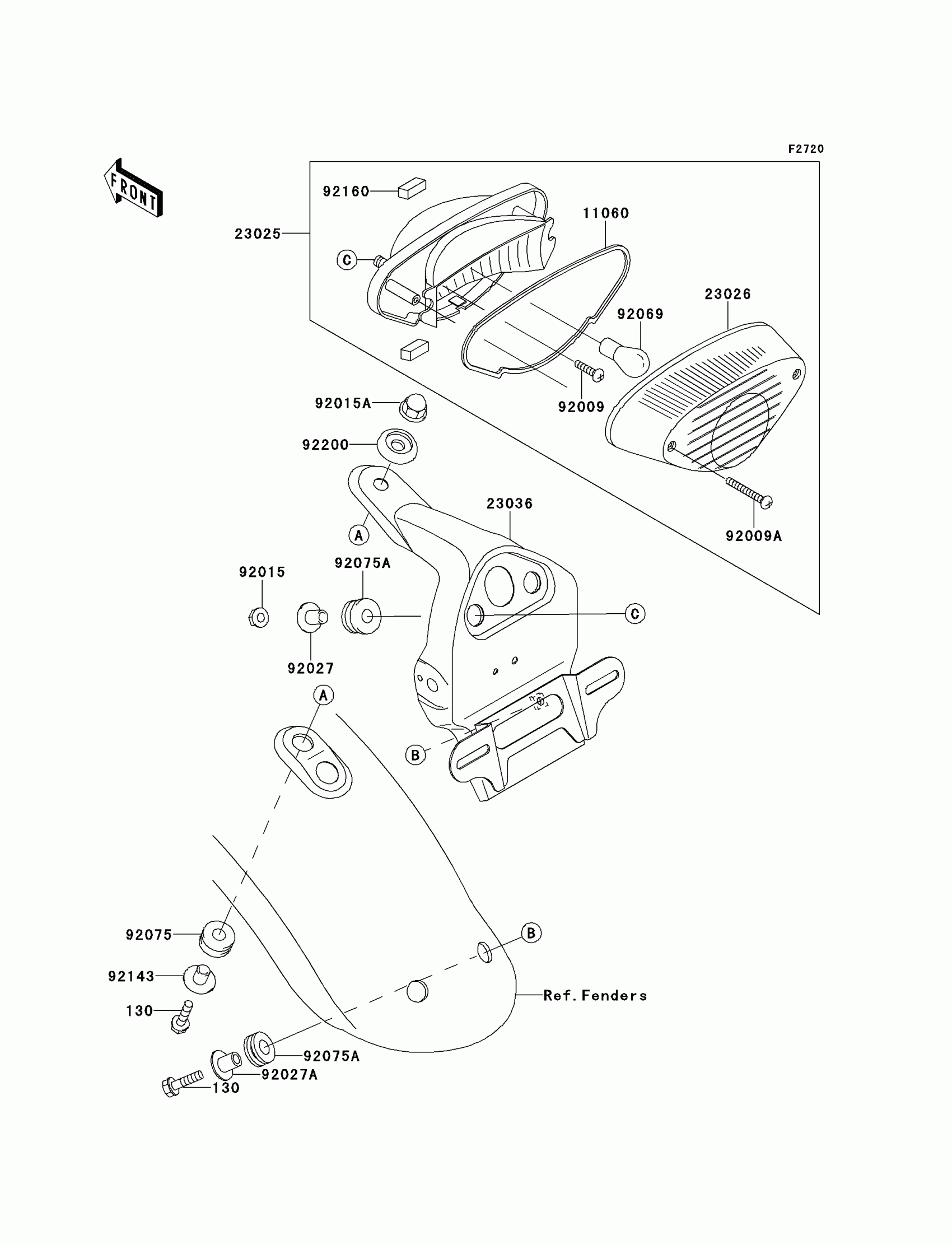

Find the part on the Taillight diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130H0620

1
Out of stock

11060

1

$5.19

In stock

23025

LAMP-TAIL

23025-1284

1

$275.31

In stock

23026

LENS,TAIL LAMP

23026-1222

1

$46.09

In stock

23036

BRACKET-TAIL LAMP

23036-1145

1
Out of stock

92009

SCREW,TAPPING,4X12

92009-1381

1
Out of stock

92009A

SCREW,TAPPING,4X35

92009-1687

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT,CAP,6MM

92015-1385

1

$3.43

In stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1

$4.93

In stock

92027A

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 21/5W

92069-063

1

$7.39

In stock

92075

DAMPER

92075-1185

1

$4.17

In stock

92075A

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92143

COLLAR,L=15.6

92143-1041

1

$7.93

In stock

92160

DAMPER

92160-1998

1

$3.25

In stock

92200

WASHER

92200-1153

1
Out of stock
