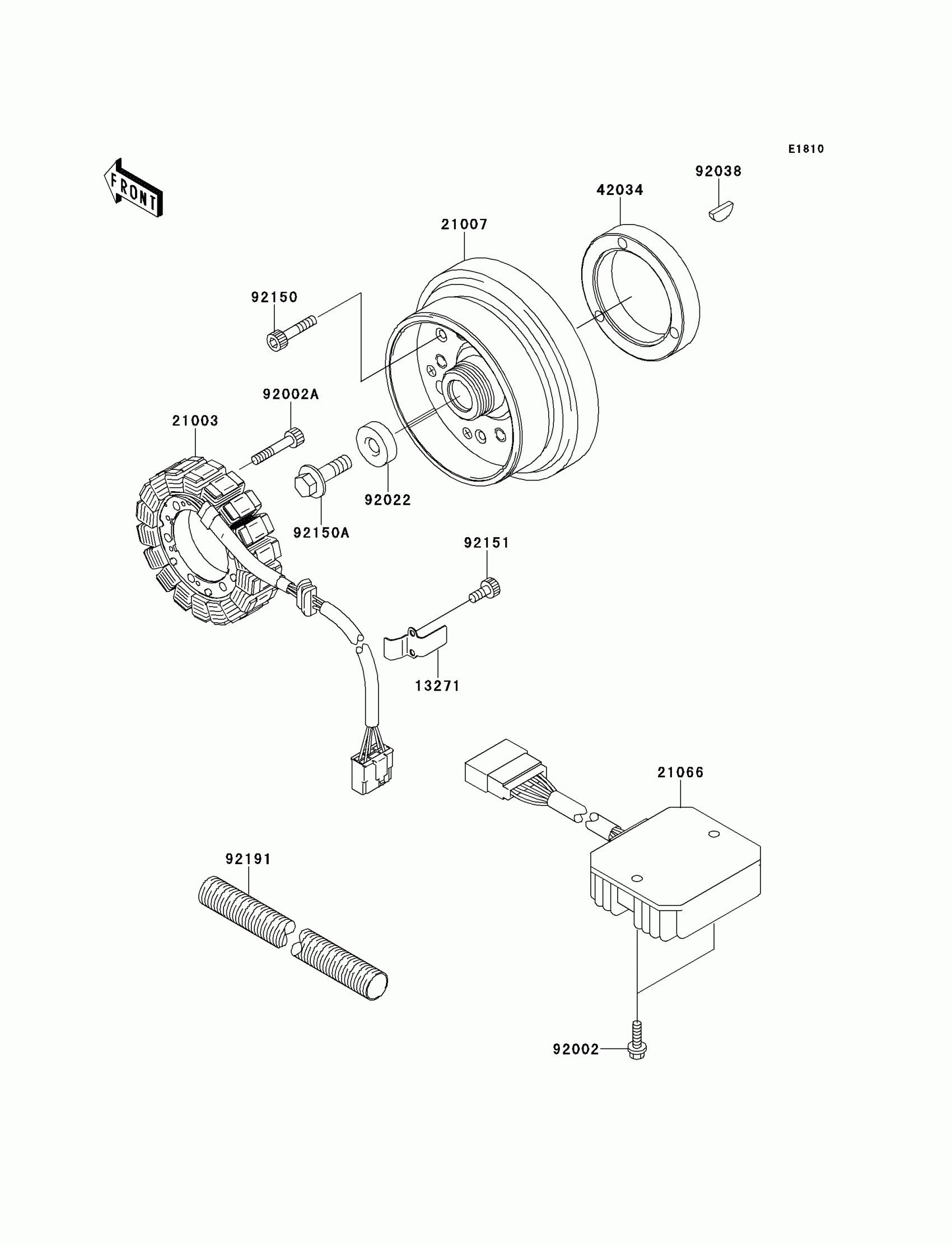

Kawasaki W650 (Canada Only) Generator Diagram

Description

Price

13271

PLATE

13271-1185

$3.20

21003

STATOR

21003-1348

$670.61

21007

ROTOR

21007-1351

Unavailable

21066

REGULATOR-VOLTAGE

21066-1106

$266.06

42034

COUPLING

42034-1143

$123.69

92002

BOLT,FLANGED,6X25

92002-1086

$4.18

92002A

BOLT,SOCKET,6X25

92002-1696

$1.43

92022

WASHER,12X40X6

92022-1904

$13.51

92038

KEY,WOODRUFF

92038-001

$3.78

92150

BOLT,SOCKET,8X30

92150-1604

$4.37

92150A

BOLT,12X50

92150-1708

$5.61

92151

BOLT,SOCKET,5X12

92151-1118

Unavailable

92191

TUBE

92191-1397

$4.25
