2002 Kawasaki W650 (Canada Only) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

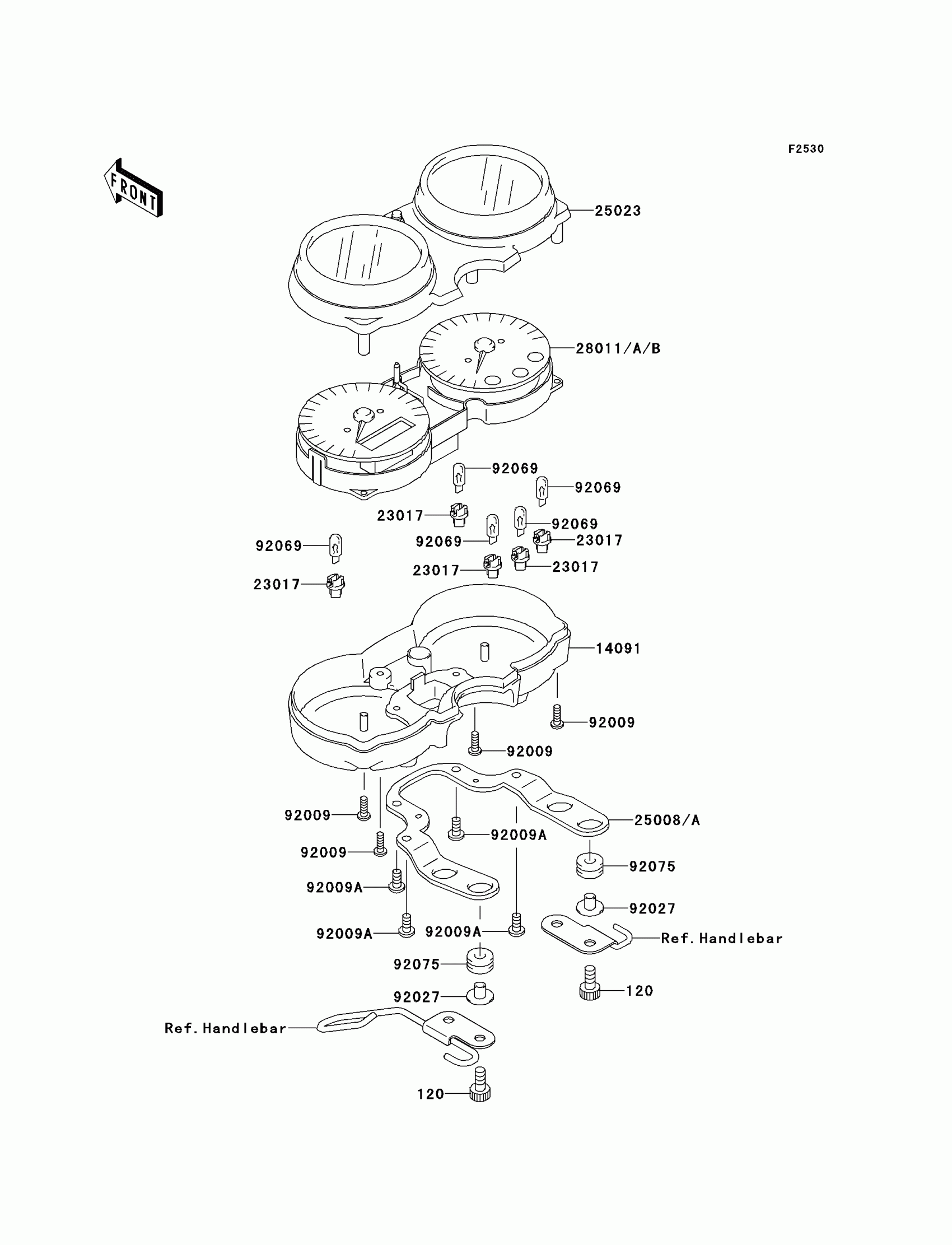

2002 Kawasaki W650 (Canada Only) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X22

120S0622

1
Out of stock

14091

1

$142.56

In stock

23017

1

$3.29

In stock

25008A

BRACKET-METER

25008-1229

1
Out of stock

25023

1

$157.66

In stock

28011B

METER,SPEED&TACHO,KPH

28011-1232

1
Out of stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92009A

SCREW,5X10

92009-1904

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1

$4.93

In stock

92069

BULB,12V 2W,T5

92069-1105

1

$4.07

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock
