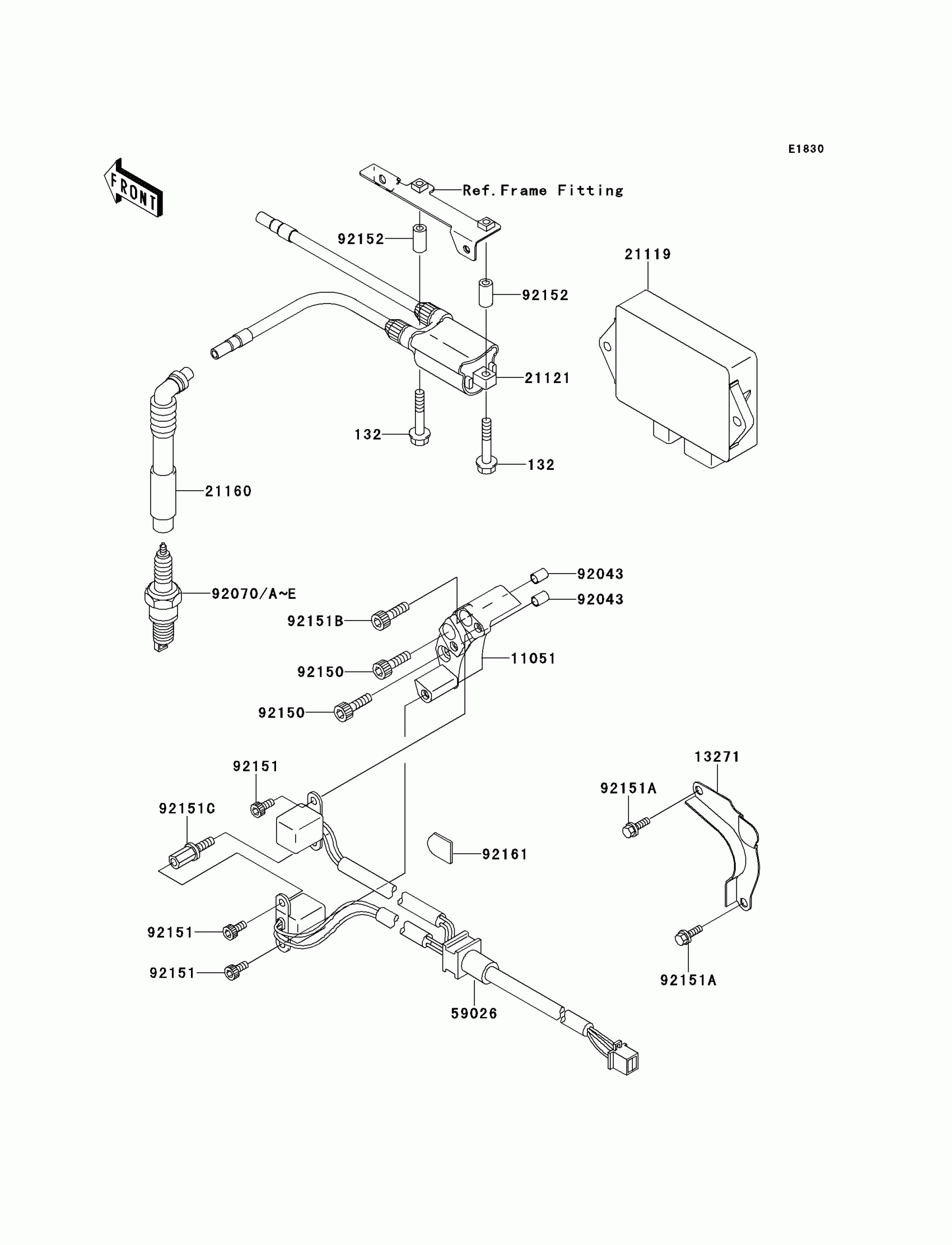

Find the part on the Ignition System diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132J0645

1
Out of stock

11051

1

$33.44

In stock

13271

PLATE

13271-1189

1
Out of stock

21119

IGNITER

21119-1549

1

$642.65

In stock

21121

COIL-IGNITION

21121-1283

1

$119.12

In stock

21160

CAP-ASSY-PLUG

21160-1081

1

$61.88

In stock

59026

COIL-PULSING

59026-1148

1

$134.62

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92070

Not Available As Spare Part - Friction Washer

1
Out of stock

92070A

1

$6.44

In stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92070C

1

$6.44

In stock

92070D

Not Available As Spare Part - Friction Washer

1
Out of stock

92070E

PLUG-SPARK,CR9E(NGK)

92070-1266

1
Out of stock

92150

BOLT,SOCKET,6X40

92150-1653

1

$1.44

In stock

92151

BOLT,SOCKET,5X12

92151-1118

1
Out of stock

92151A

1

$1.95

In stock

92151B

BOLT,SOCKET,6X45

92151-1471

1

$2.25

In stock

92151C

BOLT

92151-1574

1
Out of stock

92152

COLLAR,6.8X13X25

92152-1200

1

$5.19

In stock

92161

DAMPER

92161-1076

1
Out of stock
