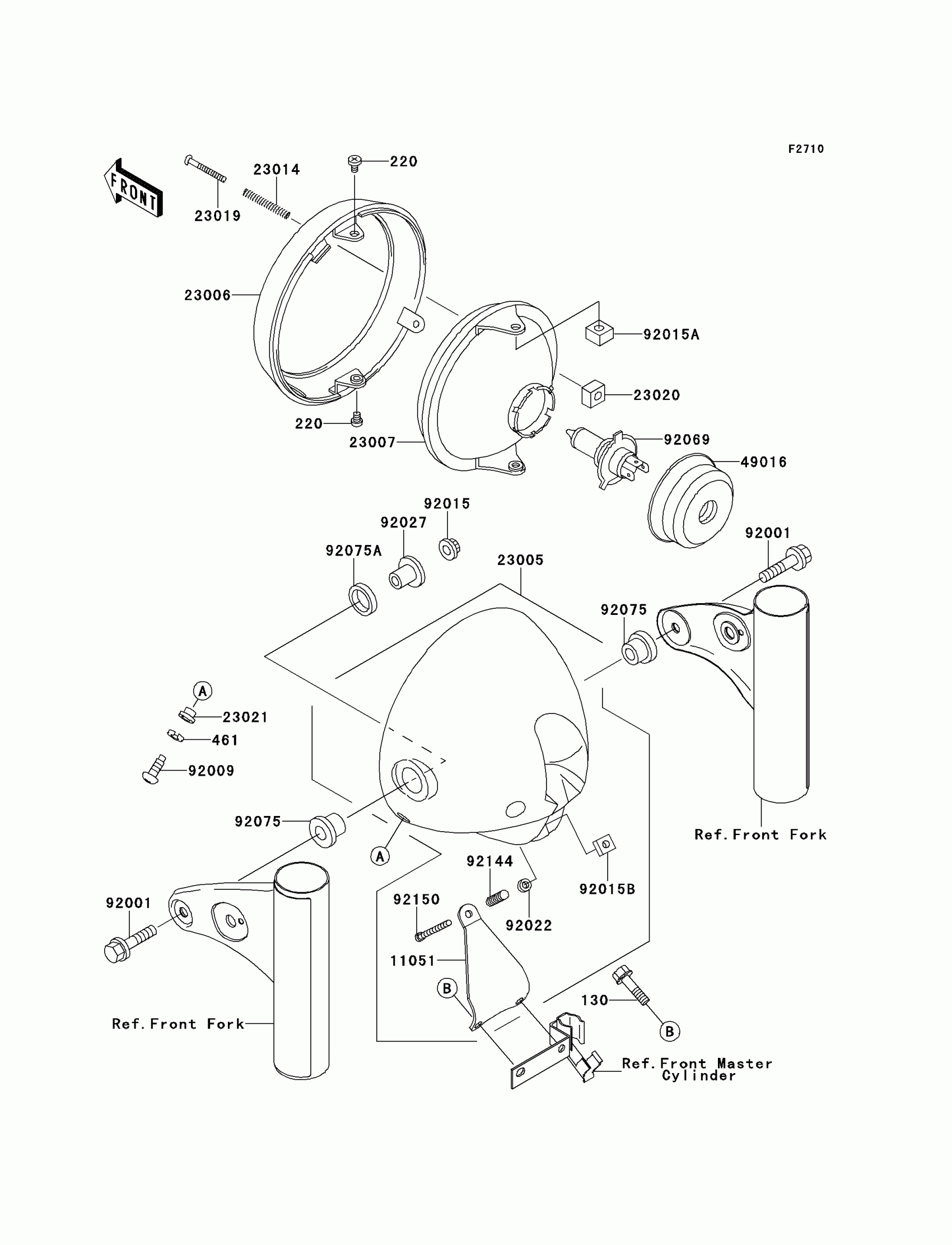

Find the part on the Headlight diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

220

SCREW-PAN-CROS,5X10

220D0510

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

11051

BRACKET

11051-1473

1

$9.52

In stock

23005

BODY-COMP-HEAD LAMP

23005-1177

1

$312.99

In stock

23006

RIM-LAMP

23006-1080

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1361

1

$150.51

In stock

23014

1

$3.19

In stock

23019

1

$4.17

In stock

23020

1

$3.69

In stock

23021

WASHER

23021-010

1

$3.43

In stock

49016

1

$11.85

In stock

92001

BOLT,FLANGED,8X35

92001-1910

1

$5.71

In stock

92009

SCREW,5MM

92009-1947

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,5MM

92015-1157

1
Out of stock

92015B

1

$3.88

In stock

92022

WASHER,5.2X13X1

92022-1380

1

$3.43

In stock

92027

COLLAR,L=20

92027-1131

1

$8.71

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

1

$5.42

In stock

92075A

1

$4.42

In stock

92144

SPRING

92144-1417

1

$4.10

In stock

92150

BOLT,ADJUST,5X45

92150-1590

1

$5.64

In stock
