2002 Kawasaki W650 (Canada Only) Ignition Switch/locks/reflectors Diagram

← All diagrams

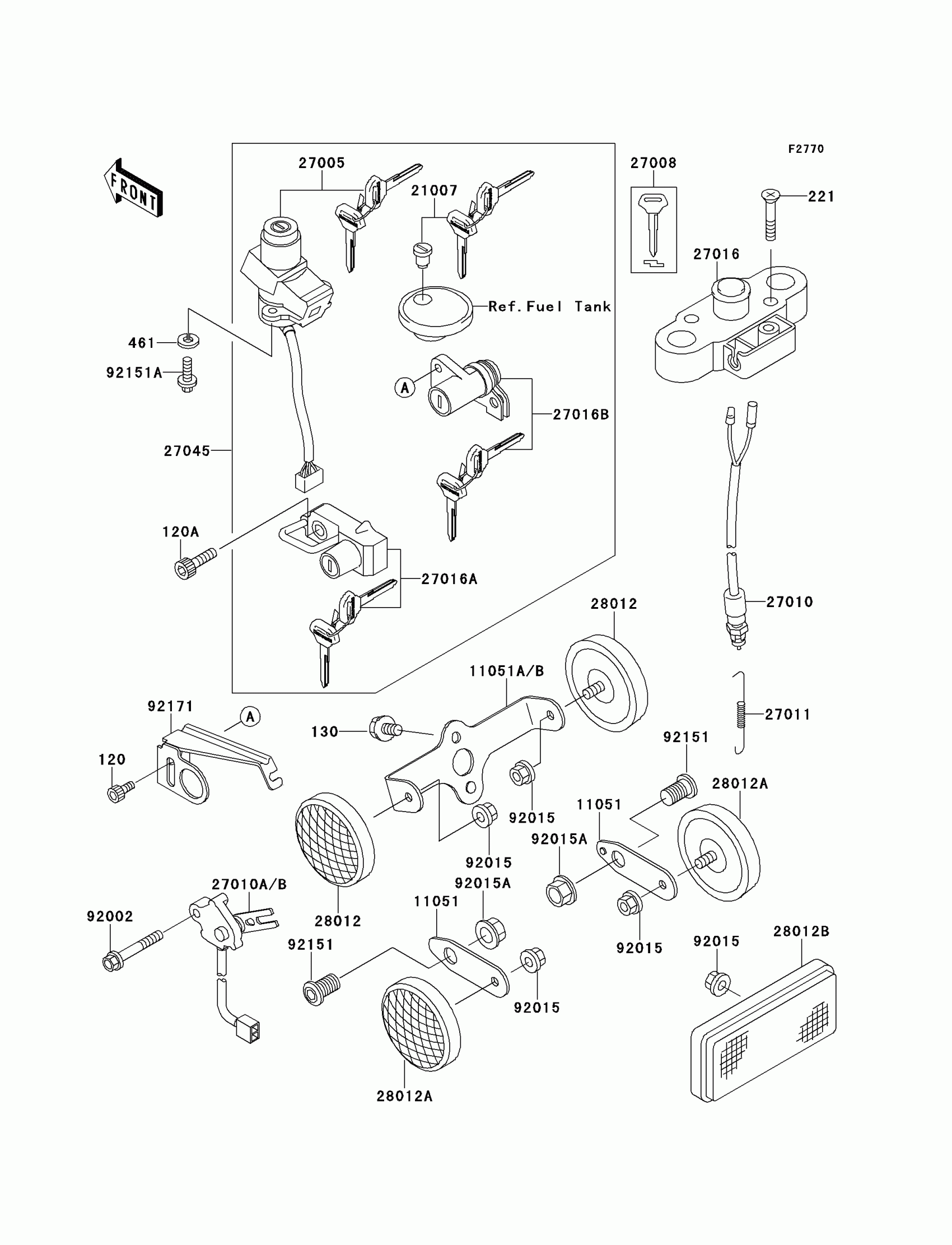

Find the part on the Ignition Switch/locks/reflectors diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

120A

BOLT-SOCKET,6X16

120S0616

1
Out of stock

130

BOLT-FLANGED

130J0610

1
Out of stock

221

SCREW-CSK-CROSS

221C0630

1
Out of stock

461

WASHER-SPRING

461L0600

1

$0.68

In stock

11051

1

$3.59

In stock

11051B

1

$8.22

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5043

1
Out of stock

27005

1

$193.32

In stock

27008

KEY-LOCK,BLANK

27008-1189

1

$13.89

In stock

27010

SWITCH,REAR BRAKE

27010-1399

1
Out of stock

27010B

SWITCH,SIDE STAND

27010-1423

1
Out of stock

27011

1

$6.75

In stock

27016

1

$86.38

In stock

27016A

LOCK-ASSY,HELMET

27016-5247

1
Out of stock

27016B

LOCK-ASSY,SEAT

27016-5256

1

$67.31

In stock

27045

SWITCH-ASSY

27045-5106

1
Out of stock

28012

1

$21.56

In stock

28012A

REFLECTOR-REFLEX

28012-1067

1

$21.58

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92002

BOLT,6X40

92002-1080

1

$3.74

In stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92151

BOLT,SOCKET,10X16

92151-1571

1

$3.81

In stock

92151A

BOLT,TORX,6X16

92151-1911

1

$2.15

In stock

92171

CLAMP

92171-1072

1

$9.90

In stock
