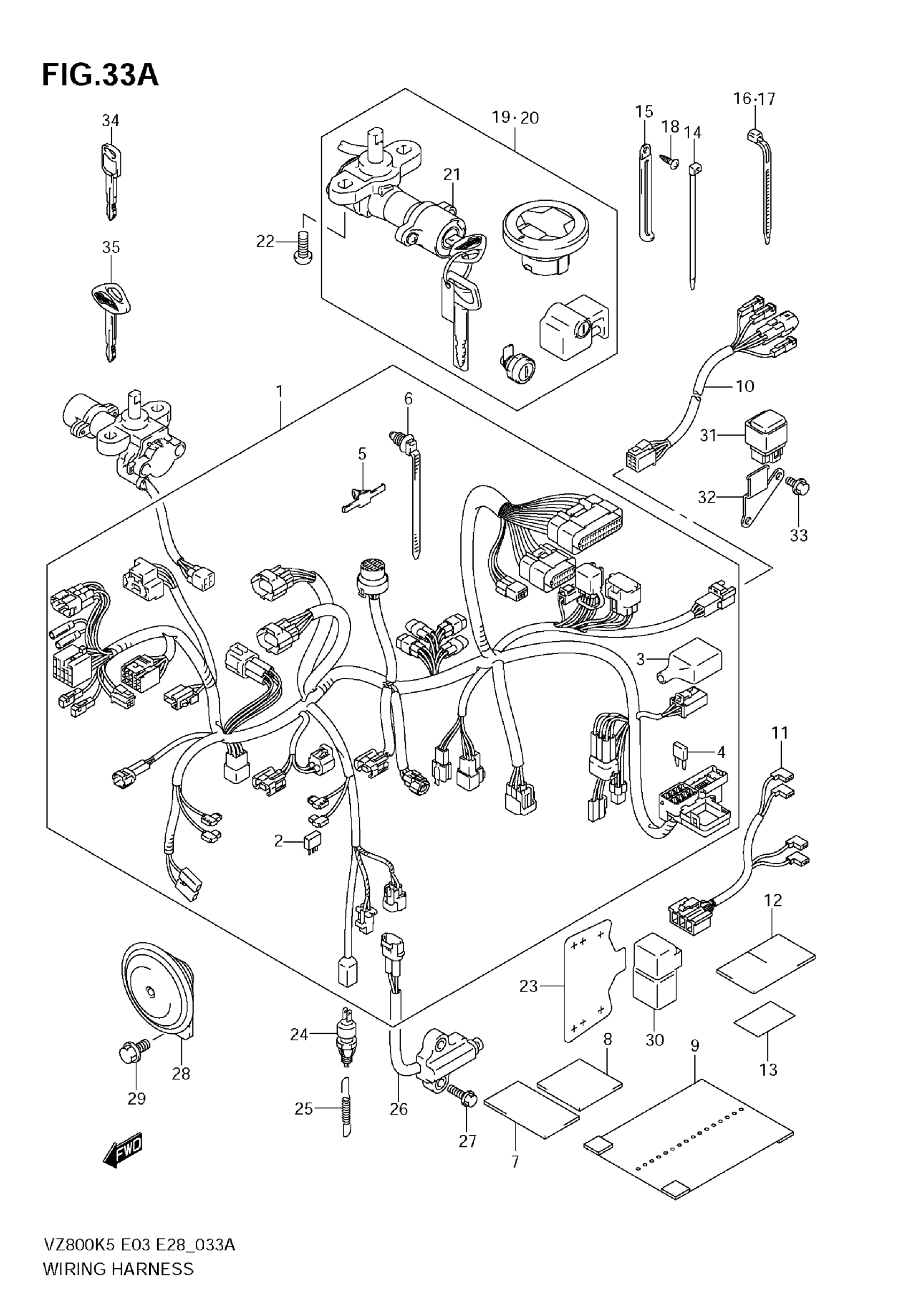

Suzuki VZ800 (2009) WIRING HARNESS (MODEL K9) Diagram

HARNESS,WIRING | E3,E28 This part replaces 36610-39GB0.

36610-39GB1

Unavailable

HARNESS, WIRING | E33; Includes Item(s) 2 - 6

36610-39GC0

Unavailable

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

BOOT

36717-41F00

Unavailable

FUSE (10A)

09481-10501

$2.07

FUSE (15A)

09481-15501

$2.07

CLAMP

09407-05410

Unavailable

CLAMP

09407-17403

$4.63

TAPE,HARNESS (28X50X0.13) | 28X50X0.13

36611-16G00

$3.42

TAPE, WIRING HARNESS | 35x35

36611-41F00

Unavailable

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$21.28

WIRE,REAR COMB This part replaces 36858-39G00.

36858-39G01

$101.83

WIRE, IGNITION COIL LEAD | E33

36854-39G00

Unavailable

TAPE, WIRING HARNESS | 30x50x3

36920-33C00

Unavailable

PROTECTOR, WIRING HARNESS | 30x20x0.13

94474-17H00

$5.18

CLAMP (L:145)

09407-14407

$2.80

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

CLAMP (L:135)

09404-06435

$4.00

CLAMP (L:165)

09407-18402

$2.21

CLAMP (L:190)

09407-19401

$3.32

SCREW

03541-0410B

Unavailable

LOCK SET This part replaces 37101-41890.

37101-41893

$520.92

LOCK SET | E33; Includes Item(s) 21

37102-41810

Unavailable

.LOCK ASSY,STEERING This part replaces 37100-41F70.

37100-41F71

$169.77

SCREW, STEERING LOCK

09139-08016

$3.04

PROTECTOR, IGNITION SWITCH

37187-41F10

$13.73

SWITCH ASSY, STOP LAMP

37740-24A00

$16.66

SPRING, STOP LAMP

09443-06073

$3.13

SWITCH ASSY,SIDE STAND This part replaces 37840-41F00.

37840-41F02

$67.80

BOLT (6X20)

09103-06279

Unavailable

HORN ASSY

38500-41F30

$98.98

BOLT

01550-0816B

$2.75

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

RELAY ASSY, HEAD LAMP

38740-24A00

$71.43

BRACKET, HEAD LAMP

38741-39G00

Unavailable

BOLT, BRACKET

01550-0612B

$2.38

KEY, BLANK | OPT

37146-41F10

$27.37

KEY, BLANK "BOULEVARD" | OPT

37146-41FA0

$56.87
