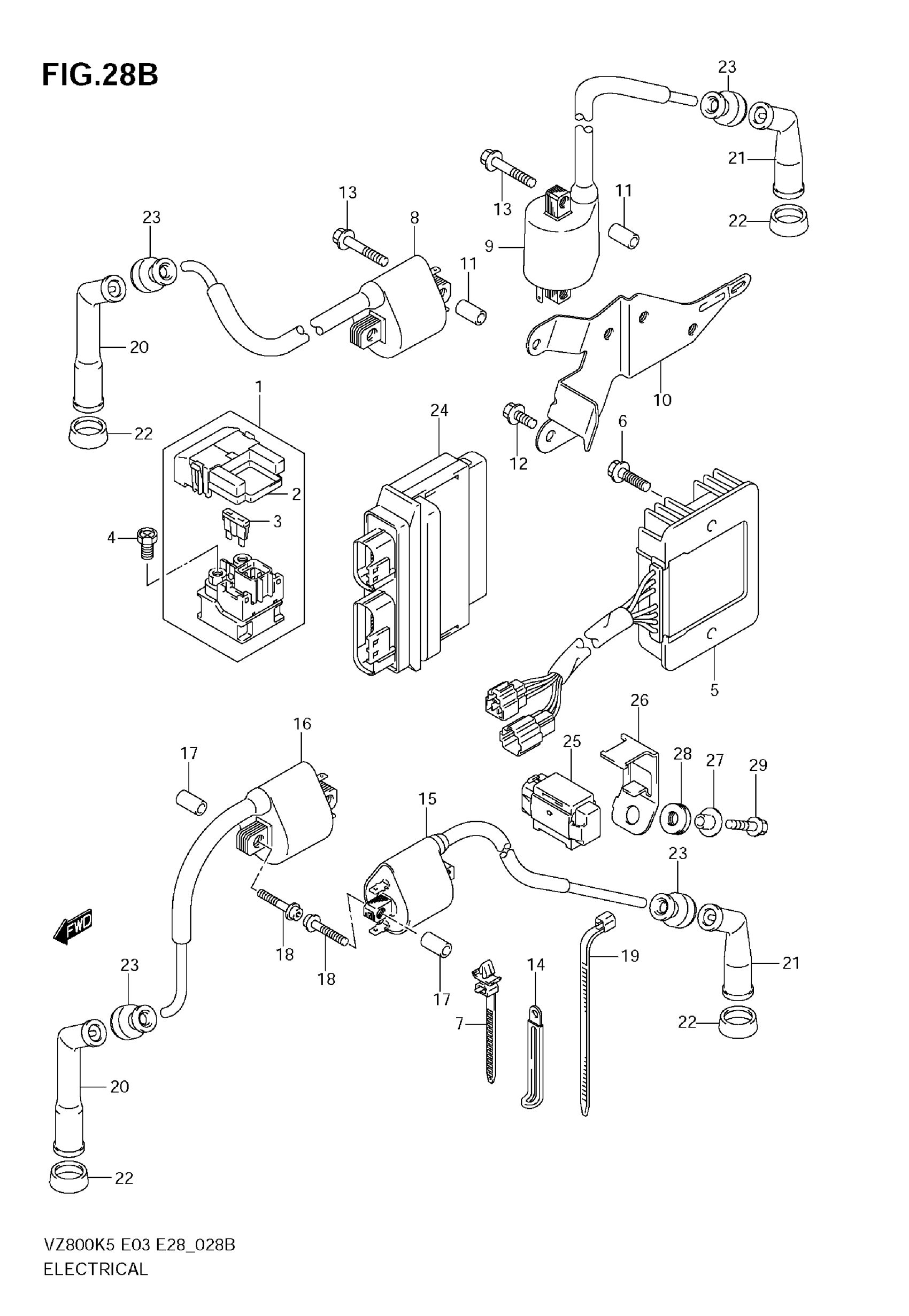

Suzuki VZ800 (2009) ELECTRICAL (MODEL K9 E33) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-21E20.

31800-21E30

$64.39

2

COVER, RELAY ASSY

31861-47E00

$18.23

3

FUSE (30A)

09481-30101

$2.35

4

BOLT (6X8)

09128-06013

$1.28

5

RECTIFIER ASSY This part replaces 32800-41F11.

32800-47H00

$250.53

6

BOLT

02162-0620B

$2.27

7

CLAMP (L:90)

09407-11402

$1.88

8

COIL ASSY, IGNITION REAR | FOR LH,FR

33410-39G00

$139.58

9

COIL ASSY, IGNITION REAR | FOR LH,RR

33410-39G10

$140.27

10

BRACKET, IGN COIL REAR

33414-39G00

Unavailable

11

SPACER (6.4X10X18)

09180-06195

$4.70

12

BOLT, BRACKET REAR

01547-0610A

$1.47

13

BOLT, IGN COIL REAR

01547-0635A

$2.38

14

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.81

15

COIL ASSY, IGNITION FRONT | FOR LH

33420-39G00

$139.58

16

COIL ASSY,IGNITION | FOR RH This part replaces 33420-41F10.

33420-41F11

$97.08

17

SPACER (6.4X10X18)

09180-06195

$4.70

18

BOLT, IGN COIL FRONT | 5x35

09106-05033

Unavailable

19

CLAMP (L:190)

09407-19401

$3.32

20

CAP, SPARK PLUG (CENTER)

33510-11410

$24.82

21

CAP, SPARK PLUG (SIDE)

33510-38B00

$35.80

22

SEAL, SPARK PLUG

33541-47D00

$7.50

23

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

24

CONTROL UNIT, FI

32920-39GC0

Unavailable

25

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01

26

BRACKET, FUEL CUT

33961-41F00

Unavailable

27

SPACER, FUEL CUT

09180-06325

$3.59

28

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.67

29

BOLT, FUEL CUT

01547-0616A

$2.09
