2009 Suzuki VZ800 Headlamp Assy Diagram

← All diagrams

Find the part on the Headlamp Assy diagram for your 2009 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

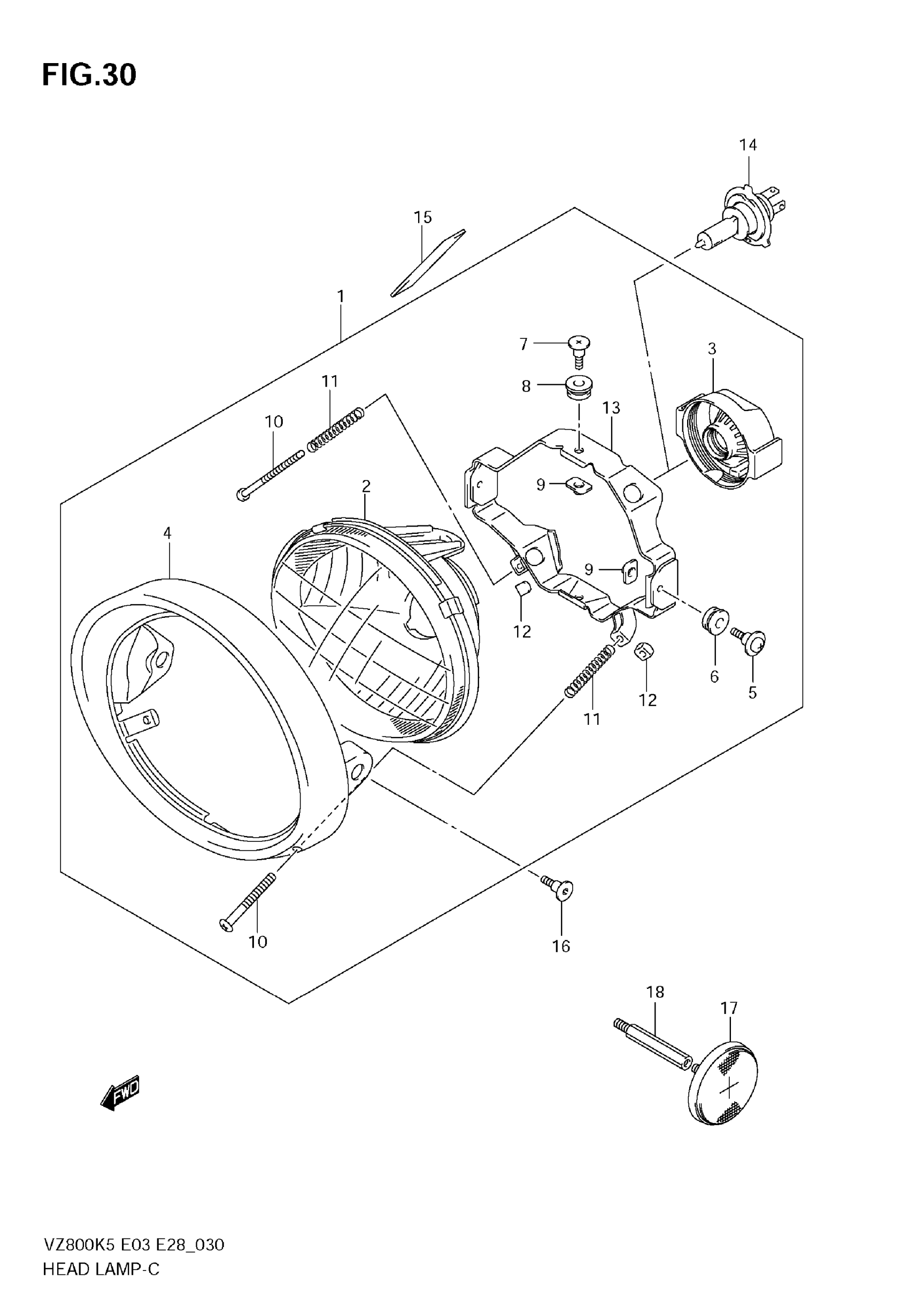

2009 Suzuki VZ800 Headlamp Assy Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 13

35100-39G30-999

1
Out of stock

2

UNIT

35121-39G30

1
Out of stock

3

COVER, SOCKET

35173-13E10

1
Out of stock

4

RIM

35111-39G20

1
Out of stock

5

.SCREW MOUNTING

35136-38A00

2

$4.53

In stock

6

CUSHION

35139-45230

2
Out of stock

7

SCREW

35136-39G20

2
Out of stock

8

CUSHION

35139-38A60

2
Out of stock

9

NUT

35155-38A60

4
Out of stock

10

SCREW, ADJUSTER

35151-39G30

2
Out of stock

11

SPRING, ADJUSTER

35154-39G20

2
Out of stock

12

.NUT

35152-45600

2
Out of stock

13

BRACKET

35130-39G30

1
Out of stock

14

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

1
Out of stock

15

PROTECTOR,20X90X1.0 (20X90X1. | 90x20x1.0

33652-26E00

3
Out of stock

16

SCREW

09139-05081

2
Out of stock

17

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

2
Out of stock

18

BOLT

09119-06104

2
Out of stock
