2009 Suzuki VZ800 Headlamp Housing Diagram

← All diagrams

Find the part on the Headlamp Housing diagram for your 2009 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

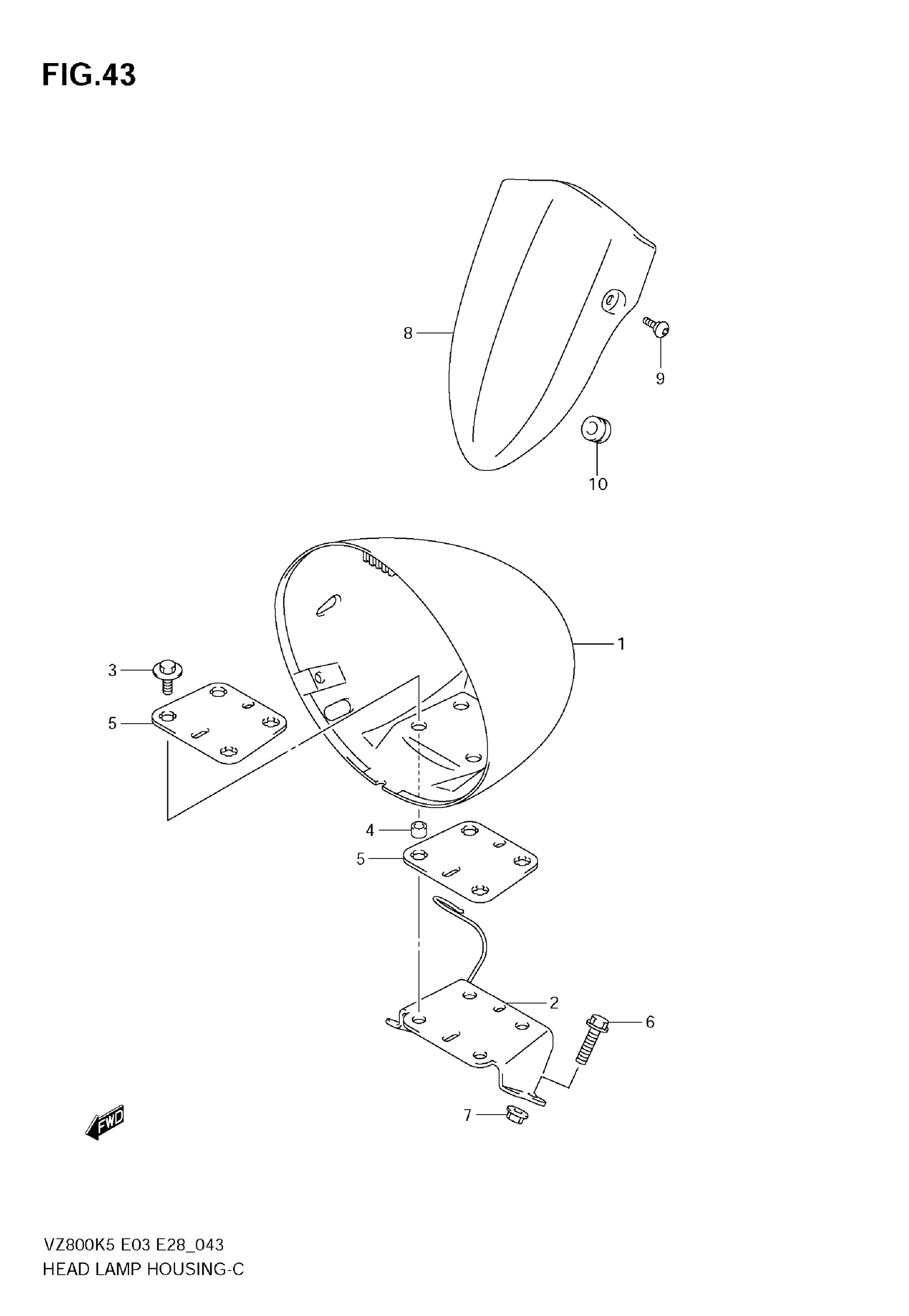

2009 Suzuki VZ800 Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING ASSY,HE This part replaces 51800-39G00.

51810-39G00

1
Out of stock

2

BRACKET

51850-39G00

1
Out of stock

3

BOLT, HOUSING

09116-06115

4
Out of stock

4

SPACER

09180-06106

4
Out of stock

5

CUSHION

51813-39G00

2
Out of stock

6

BOLT, BRACKET

09103-08413

2
Out of stock

7

NUT

08319-3108B

2
Out of stock

8

COVER,METER | MODEL K5/K6 This part replaces 51812-39G00.

51812-39G02

1
Out of stock

8

COVER,METER | MODEL K7/K8/K9 This part replaces 51812-39G01.

51812-39G02

1
Out of stock

9

SCREW

09139-05071

2
Out of stock

10

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

2
Out of stock
