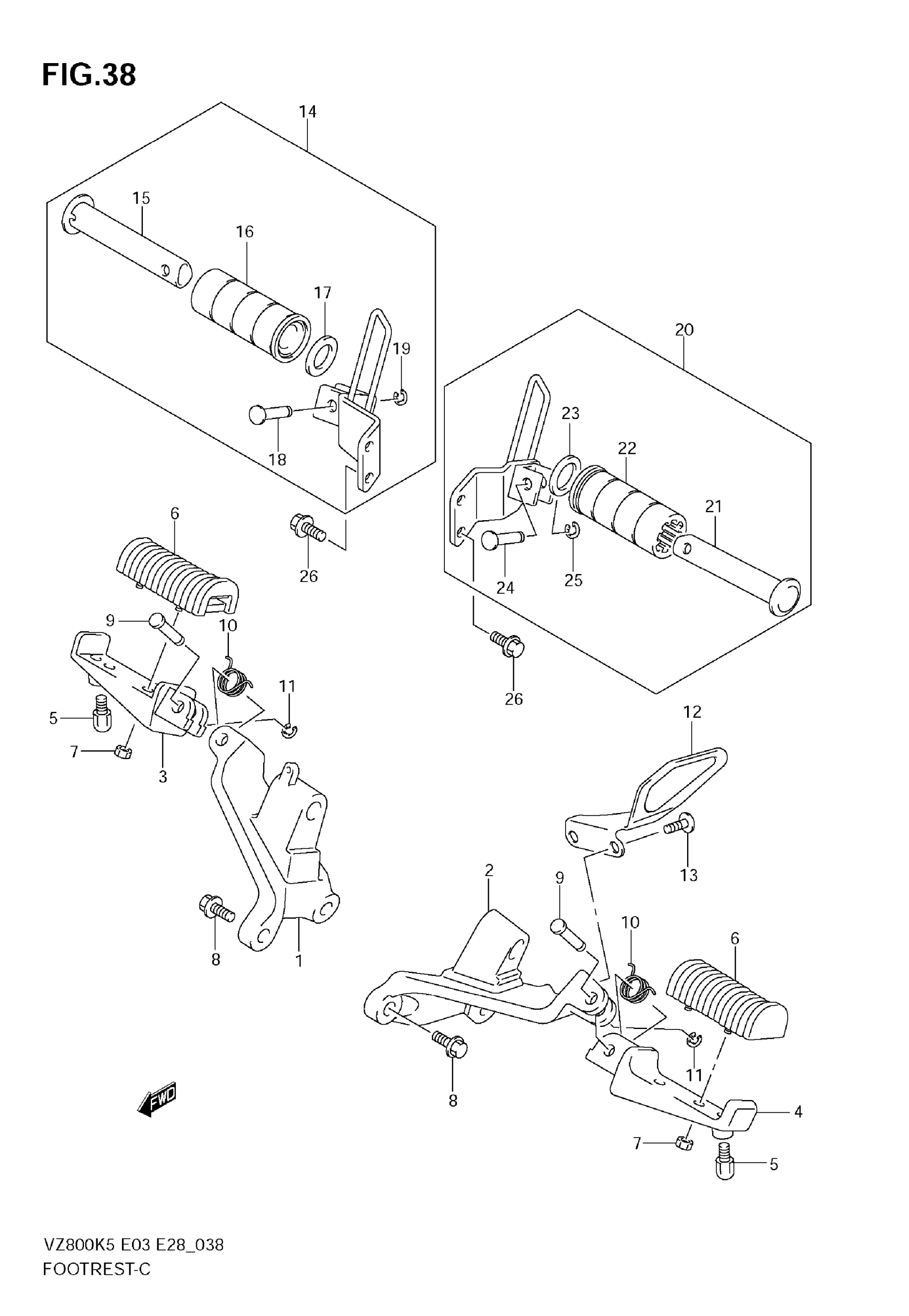

Suzuki VZ800 (2009) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-41F00

$200.27

2

BRACKET, FRONT FOOTREST LH

43521-41F01

$207.90

3

BAR, FRONT RH This part replaces 43531-41F00.

43531-41F02

$42.25

4

BAR, FRONT LH This part replaces 43541-41F00.

43541-41F02

$57.73

5

.BOLT,BANK SENSOR

43576-07D01

$8.10

6

RUBBER, FRONT FOOTREST

43550-41F00

$30.12

7

NUT

08319-2106B

$2.31

8

BOLT, BRACKET

01580-1030B

$5.63

9

PIN

09208-08010

$2.80

10

SPRING

09448-18022

$3.42

11

E-RING

08332-1106B

$1.98

12

GUARD, FRONT FOOTREST LH

43571-39G00

Unavailable

13

SCREW

09139-06108

Unavailable

14

FOOTREST ASSY, PILLION RH | MODEL K5/K6/K7/K8

43600-39G00

Unavailable

14

FOOTREST ASSY, PILLION RH | MODEL K9; Includes Item(s) 15 - 19

43600-41F50

$115.30

15

BAR

43610-39G00

$25.42

16

RUBBER

43612-39G00

$7.32

17

WASHER

09160-19024

$2.76

18

PIN

43636-25D00

$12.02

19

E-RING

08332-1104B

$1.80

20

FOOTREST ASSY, PILLION LH | MODEL K5/K6/K7/K8

43700-39G00

Unavailable

20

FOOTREST ASSY, PILLION LH | MODEL K9; Includes Item(s) 21 - 25

43700-41F50

$114.75

21

BAR

43610-39G00

$25.42

22

RUBBER

43612-39G00

$7.32

23

WASHER

09160-19024

$2.76

24

PIN

43636-25D00

$12.02

25

E-RING

08332-1104B

$1.80

26

BOLT, BRACKET

09103-08412

$3.30
