2003 Suzuki VZ800 Rear Carburetor Diagram

← All diagrams

Find the part on the Rear Carburetor diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

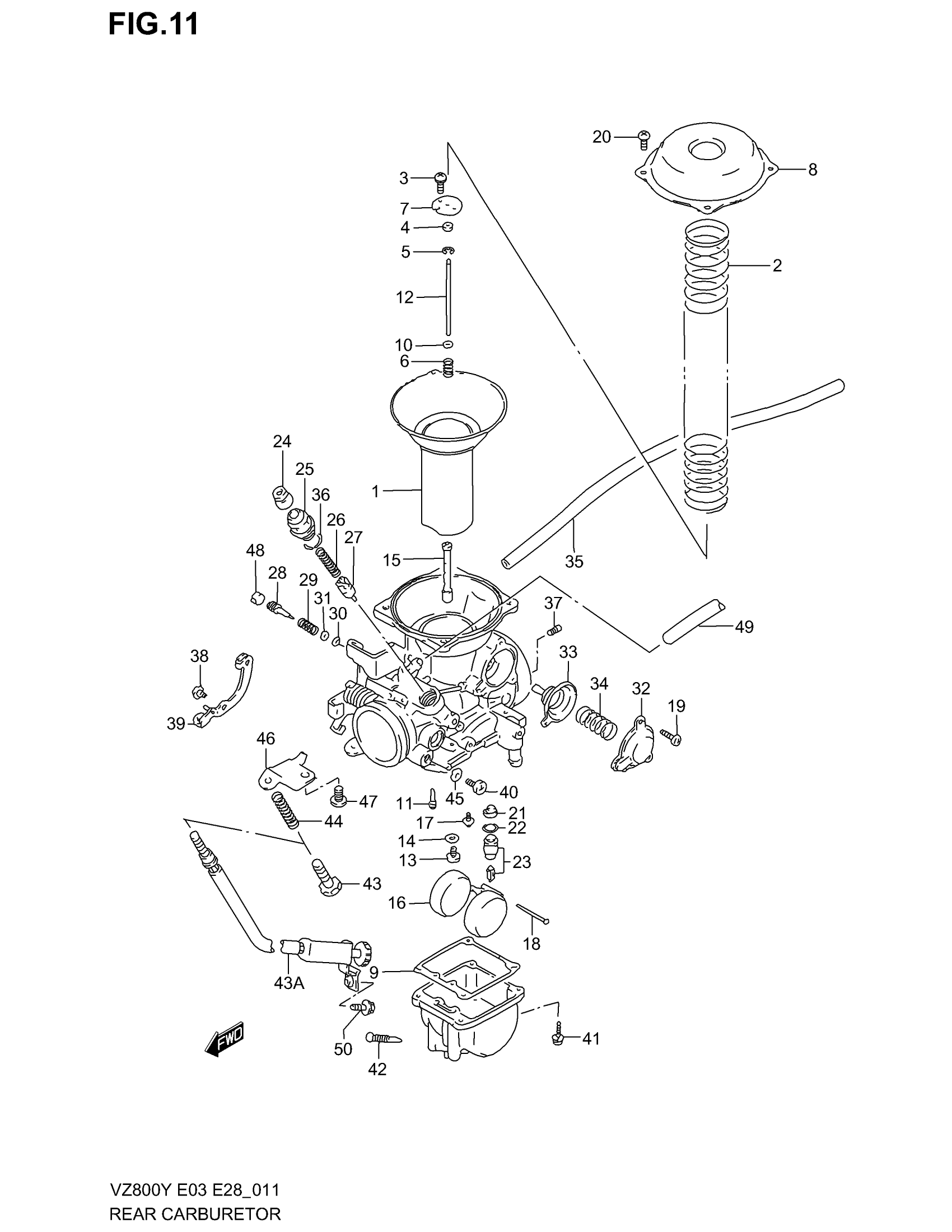

2003 Suzuki VZ800 Rear Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CARBURETOR ASSY, RR | MODEL V/W

13220-48E70

1
Out of stock

CARBURETOR ASSY, RR | MODEL V/W E33

13220-48EB0

1
Out of stock

CARBURETOR ASSY, RR | MODEL X/Y/K1/K2/K3

13220-48EF0

1
Out of stock

CARBURETOR ASSY, RR | MODEL X/Y/K1/K2/K3 E33; Includes Item(s) 1 - 49

13220-48EG0

1
Out of stock

1

DIAPHRAGM ASSY

13500-38A10

1
Out of stock

2

SPRING

13503-38B00

1
Out of stock

3

SCREW

02112-33073

2
Out of stock

4

RING

13387-47010

1

$7.41

In stock

5

CLIP

13394-10010

1

$4.76

In stock

6

SPRING

13388-44030

1

$9.17

In stock

7

PLATE

13389-37400

1

$7.98

In stock

8

COVER | MODEL V/W/X This part replaces 13502-38A10.

13502-45CE0

1
Out of stock

8

COVER | MODEL Y/K1/K2/K3

13502-45CE0

1
Out of stock

9

GASKET

13251-38A10

1
Out of stock

10

WASHER

13382-44030

1

$3.81

In stock

11

.JET, PILOT (#42.5)

09492-42010

1
Out of stock

12

NEEDLE, JET (5D83-1)

13383-48E70

1
Out of stock

13

JET, MAIN (100)

09491-20017

1
Out of stock

14

1

$2.92

In stock

15

JET, NEEDLE (P-3M)

09494-00902

1
Out of stock

16

FLOAT

13252-23010

1
Out of stock

17

SCREW

13602-05A10

1

$3.55

In stock

18

PIN

13254-92311

1

$2.41

In stock

19

SCREW

13602-19B50

2

$3.42

In stock

20

SCREW

13602-48B00

4

$4.70

In stock

21

1

$10.26

In stock

21

1

$10.26

In stock

22

1

$5.97

In stock

23

VALVE ASSY, NEEDLE

13370-39A00

1
Out of stock

24

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

25

HOLDER

13418-43410

1

$7.20

In stock

26

SPRING

13417-22010

1
Out of stock

27

PLUNGER

13411-01400

1

$13.27

In stock

28

SCREW, PILOT (1 5/8)

13279-47070

1

$13.33

In stock

29

.SPRING (NT:45)

13268-47070

1

$4.33

In stock

30

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

31

WASHER

13291-29900

1
Out of stock

32

COVER

13484-45C00

1
Out of stock

33

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

1
Out of stock

34

SPRING

13481-45C10

1
Out of stock

35

HOSE,5X10X600 | EXCEPT MODEL X/Y/K1/K2/K3 E33 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

35

HOSE | MODEL X/Y E33 This part replaces 13684-48EF0.

13683-19B81

1
Out of stock

35

HOSE | MODEL K1/K2/K3 E33,L:650!315 This part replaces 13683-19B80.

13683-19B81

1
Out of stock

36

1

$2.01

In stock

37

JET, AIR (70)

09492-70004

1
Out of stock

38

SCREW

13602-05A30

1
Out of stock

39

LEVER ASSY

13554-38A10

1
Out of stock

40

SCREW

09125-05122

1
Out of stock

41

SCREW | MODEL V/W/X This part replaces 13601-45C00.

13601-04148

4
Out of stock

41

SCREW | MODEL Y/K1/K2/K3

13601-04148

4
Out of stock

42

1

$4.97

In stock

43

ADJUSTER | MODEL V/W

13267-39E50

1
Out of stock

43A

ADJUSTER | MODEL X/Y/K1/K2/K3

13267-48E00

1
Out of stock

44

SPRING

13271-93011

1
Out of stock

45

GASKET

13523-46110

1
Out of stock

46

BRACKET

13621-38A10

1
Out of stock

47

SCREW | MODEL V/W/X/Y This part replaces 13602-45C00.

13602-06128

1
Out of stock

47

SCREW | MODEL K1/K2/K3

13602-06128

1
Out of stock

48

PLUG

13281-05A00

1
Out of stock

49

HOSE (5X8X430) | E33 This part replaces 13683-38B00.

13683-38B01

1
Out of stock

50

BOLT | MODEL X/Y/K1/K2/K3 This part replaces 01550-06103.

01550-0610A

1
Out of stock
