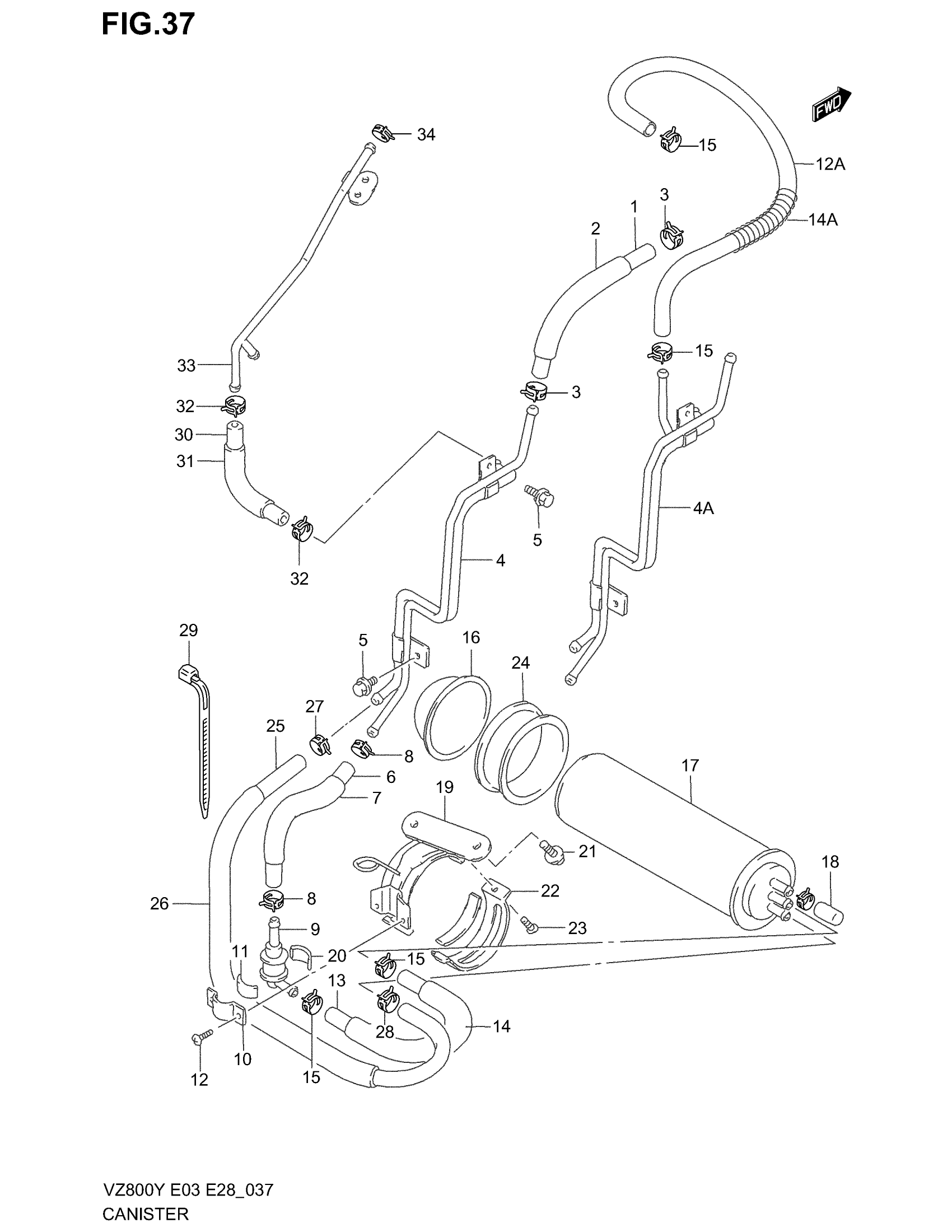

Suzuki VZ800 (2003) CANISTER (E33) Diagram

#

Description
Price

1

HOSE, VALVE & CANISTER This part replaces 44434-48E10.

09355-54116-600

$11.04

2

PROTECTOR

09440-13052

$7.10

3

CLIP

09401-11413

$2.24

4

PIPE, TANK & BREATHER | MODEL V/W/X

44950-48E00

Unavailable

4A

PIPE, TANK & BREATHER | MODEL Y/K1/K2/K3

44950-48E10

Unavailable

5

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

6

HOSE, PIPE & VALVE | L:600!180

09355-54116-600

$11.04

7

PROTECTOR

09440-13052

$7.10

8

CLIP

09401-11413

$2.24

9

VALVE FUEL TANK BREATHER

44240-17C00

$73.01

10

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 11

44892-24A00

$5.10

11

CUSHION (10X30X2)

44894-24A00

$1.78

12

SCREW This part replaces 02142-04083.

02142-0408B

$1.71

12A

HOSE, BREATHER & PURGE | L:2000!880

09355-54116-00B

Unavailable

13

HOSE, VALVE & CANISTER

44433-48E00

Unavailable

14

PROTECTOR

09440-13052

$7.10

14A

PROTECTOR

09440-13044

Unavailable

15

CLIP

09401-11413

$2.24

16

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$22.03

17

CANISTER ASSY CHARCOAL

17210-26E00

$360.67

18

CAP

09251-07003

$2.77

19

BRACKET, CANISTER | Includes Item(s) 20

44880-48E00

Unavailable

20

CUSHION (10X30X2)

44894-24A00

$1.78

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

22

HOLDER, CANISTER

44882-26E00

Unavailable

23

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.38

24

CUSHION CANISTER

44883-26E00

Unavailable

25

HOSE, PURGE

44434-48E00

Unavailable

26

PROTECTOR

09440-13053

Unavailable

27

CLIP This part replaces 09401-11407.

09401-11415

$2.24

28

CLIP

09401-11413

$2.24

29

CLAMP (L:125)

09407-14403

$2.24

29

CLAMP (L:16.5)

09407-18402

$2.21

30

HOSE, CARB PURGE | L:600!200

09355-54115-600

$12.71

31

PROTECTOR

09440-13052

$7.10

32

CLIP

09401-11413

$2.24

33

PIPE, CANISTER & CARB

44960-48E00

Unavailable

34

CLIP

09401-08409

$1.85
