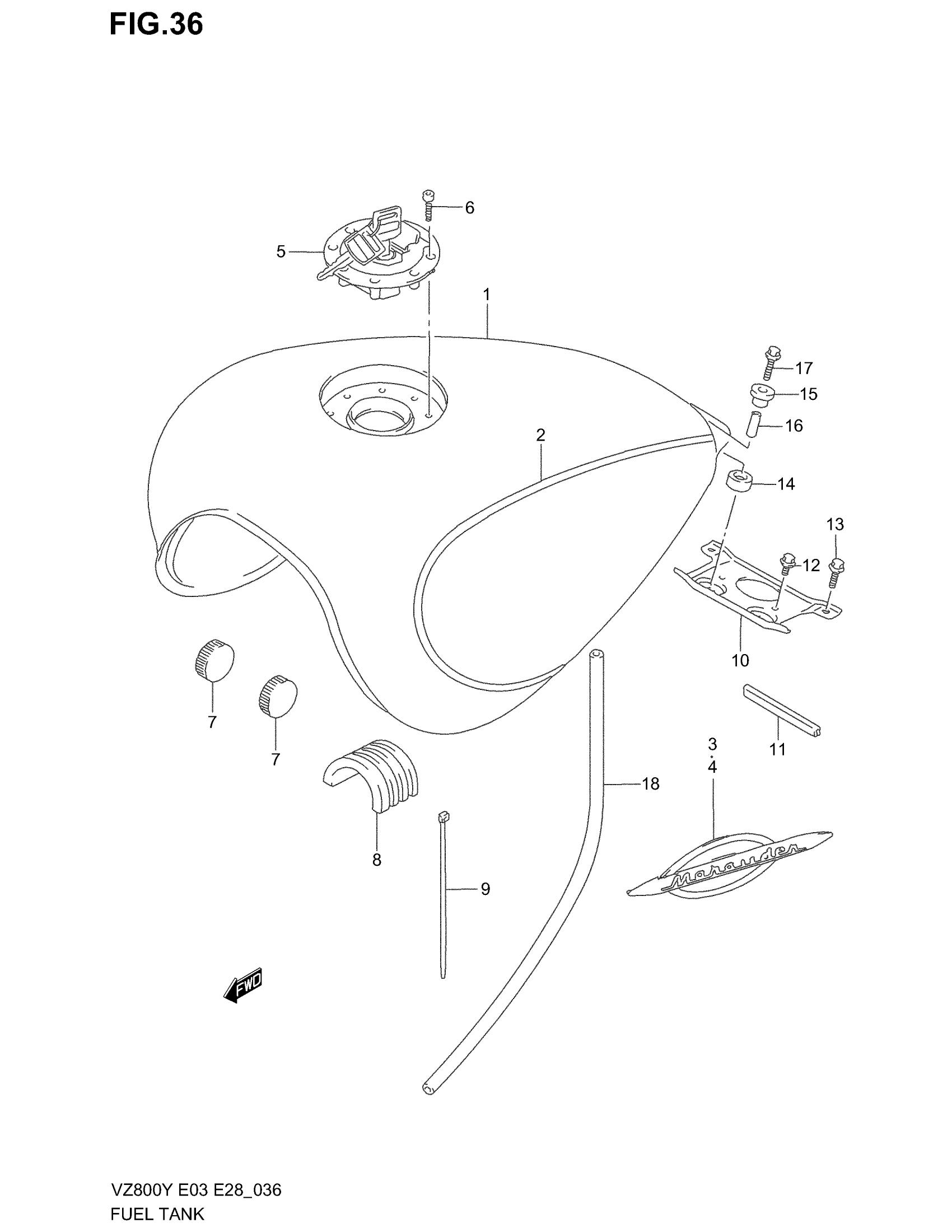

2003 Suzuki VZ800 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki VZ800 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL

44100-48E00-E9N

1
Out of stock

1

TANK ASSY, FUEL

44100-48E00-G9Y

1
Out of stock

1

TANK ASSY, FUEL | E33

44100-48E10-E9N

1
Out of stock

1

TANK ASSY, FUEL | E33; Includes Item(s) 2 - 4

44100-48E10-G9Y

1
Out of stock

2

TAPE SET, FUEL TANK | FOR E9N

68110-48E01-H0G

1
Out of stock

2

TAPE SET, FUEL TANK | FOR G9Y

68110-48E01-H0H

1
Out of stock

3

EMBLEM, FUEL TANK RH

68111-48E20

1
Out of stock

4

EMBLEM, FUEL TANK LH

68121-48E20

1
Out of stock

5

CAP SET,FUEL TA This part replaces 44200-33850.

44200-33851

1
Out of stock

5

CAP SET, FUEL TANK | E33

44200-33860

1
Out of stock

6

BOLT (L:20)

09106-05017

4
Out of stock

7

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

8

CUSHION, FUEL TANK UPPER

44541-13E00

2
Out of stock

9

CLAMP (L:248)

09407-25402

2
Out of stock

10

BRACKET, FUEL TANK REAR This part replaces 44550-48E00.

44550-48E01

1
Out of stock

11

PROTECTOR This part replaces 47512-47D00.

47512-47D01

1
Out of stock

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

13

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

14

CUSHION, FUEL TANK REAR LOWER

44542-48E00

2
Out of stock

15

CUSHION, UPPER

09320-10022

2
Out of stock

16

SPACER (6.5X10.5X22.5)

09180-06067

2
Out of stock

17

BOLT This part replaces 01550-06353.

01550-0635A

2
Out of stock

18

HOSE,FUEL TANK This part replaces 44423-48E00.

44423-48E02

1
Out of stock
