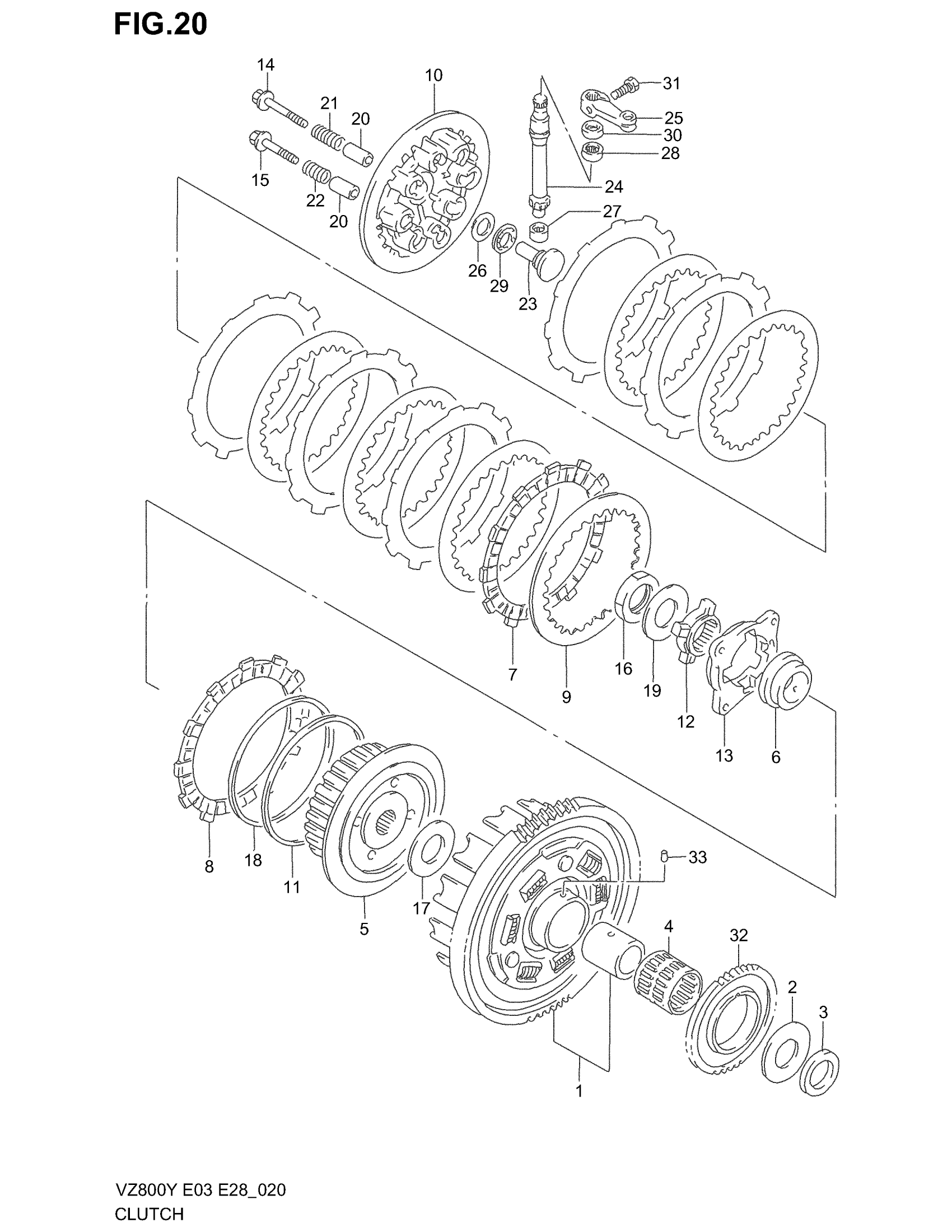

Suzuki VZ800 (2003) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:83

21200-48840

Unavailable

2

WASHER (25X54X2.5) | MODEL V

09160-25067

Unavailable

2

WASHER (25X54X2.5) | MODEL W/X/Y/K1/K2/K3

09160-25037

$9.62

3

SPACER (25X38X6.5)

09180-25077

$14.72

4

BEARING (35X40X35.8)

09263-35017

$37.12

5

HUB, CLUTCH SLEEVE

21410-45C03

$260.50

6

SPACER, CLUTCH SLEEVE

21413-45C00

Unavailable

7

PLATE, CLUTCH DRIVE NO.1 | MODEL V/W This part replaces 21441-37410.

21441-37430

$21.18

7

PLATE, CLUTCH NO.1 | MODEL X/Y/K1/K2/K3

21441-37430

$21.18

8

PLATE, CLUTCH NO.2

21442-37401

$17.09

9

PLATE, CLUTCH DRIVEN

21451-14A00

$8.71

10

DISK, CLUTCH PRESSURE

21462-45C00

Unavailable

11

SEAT, WAVE WASHER

21471-37400

$8.95

12

CAM, CLUTCH NO.1

21611-45C02

Unavailable

13

CAM, CLUTCH NO.2

21613-45C02

$150.83

14

BOLT NO.1 (6X40)

09116-06135

$2.87

15

BOLT NO.2 (6X32.5)

09116-06148

$2.90

16

NUT

09140-22011

Unavailable

17

WASHER (25X60X2.5)

09160-25065

$20.32

18

WASHER (110.5X119X0.9)

09164-00004

$10.39

19

WASHER (22.4X45X2.5)

09164-22008

$8.96

20

SPACER (6.5X9X24.1)

09180-06276

$5.52

21

SPRING, NO.1

09440-14038

$4.31

22

SPRING, NO.2

09440-14039

$6.15

23

RACK, CLUTCH RELEASE

23165-21A12

Unavailable

24

PINION

23261-32E10

$67.57

25

ARM, RELEASE | MODEL V/W/X This part replaces 23271-44B00.

23271-31D00

$47.90

25

ARM, CLUTCH RELEASE | MODEL Y/K1/K2/K3

23271-31D00

$47.90

26

WASHER (15.5X28X1)

09160-15045

$3.52

27

BEARING (9X13X10)

09263-09001

$15.80

28

BEARING (12X16X10)

09263-12024

$11.44

29

BEARING (15X28X2)

09263-15003

$7.49

30

SEAL (10X17X5)

09285-10004

$3.04

31

BOLT | MODEL V This part replaces 01500-06163.

01500-0616A

$1.77

31

BOLT, CLUTCH RELEASE | MODEL W/X/Y/K1/K2/K3

01547-06167

$1.64

32

GEAR, OIL PUMP DRIVEN (NT:47)

16321-48E00

Unavailable

33

PIN (OD:6,L:6)

09261-06002

$1.61
