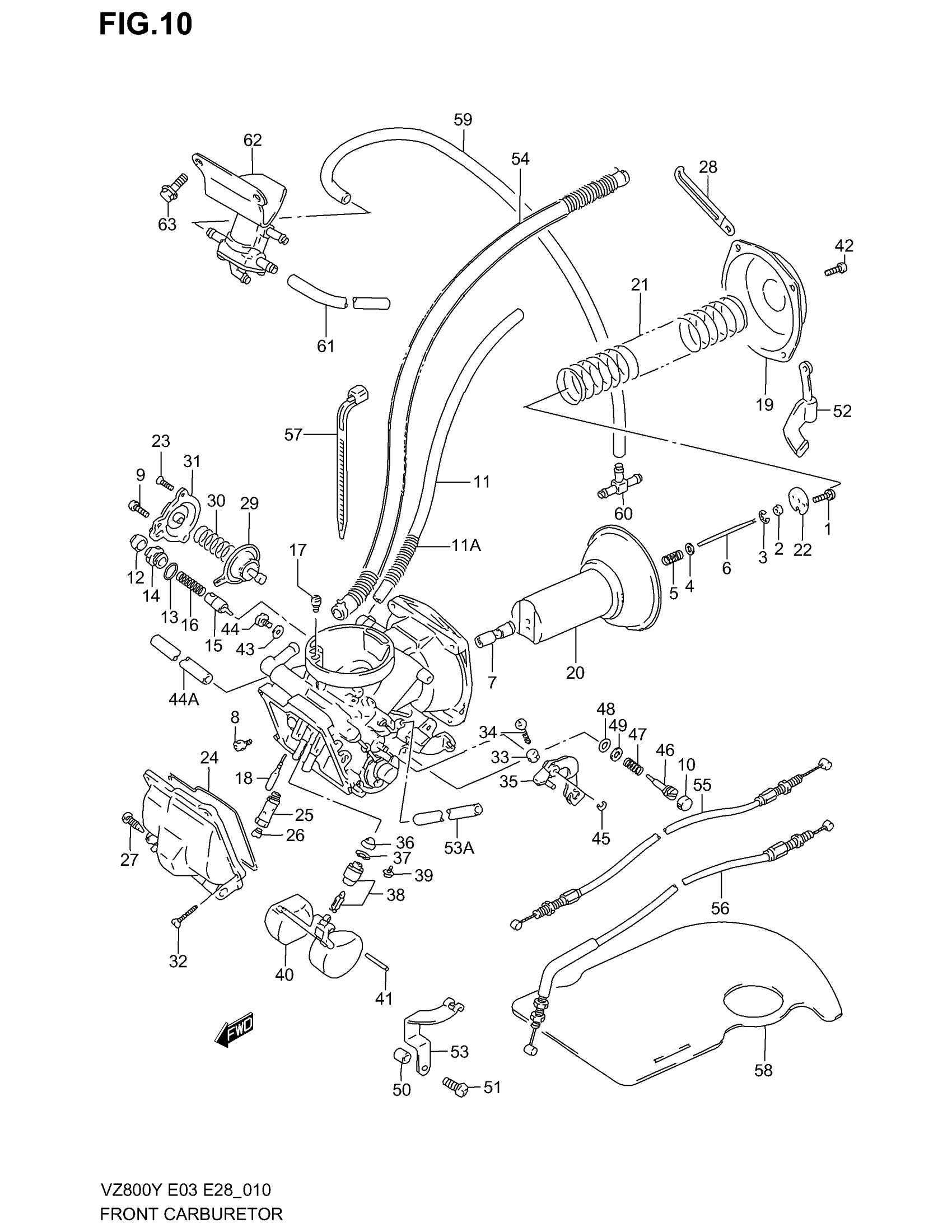

Suzuki VZ800 (2003) FRONT CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY, FR | MODEL V/W

13210-48E70

Unavailable

CARBURETOR ASSY, FR | MODEL V/W E33

13210-48EB0

Unavailable

CARBURETOR ASSY, FR | MODEL X/Y/K1/K2/K3

13210-48EF0

Unavailable

CARBURETOR ASSY, FR | MODEL X/Y/K1/K2/K3 E33; Includes Item(s) 1 - 53A

13210-48EG0

Unavailable

1

SCREW

02112-33073

$2.71

2

RING

13387-47010

$7.11

3

CLIP

13394-10010

$6.15

4

WASHER | MODEL V

13382-44030

$3.66

4

WASHER | MODEL W/X/Y/K1/K2/K3

13382-03110

$2.80

5

SPRING

13388-44030

$9.17

6

NEEDLE, JET (5C43-1)

13383-48E80

$21.98

7

JET, NEEDLE (P-4M)

09494-00901

Unavailable

8

SCREW

13605-38B00

$7.60

9

SCREW

02112-04107

$1.61

10

PLUG

13281-05A00

$4.40

11

HOSE | MODEL V/W/X E3,E28 This part replaces 13684-48E00.

13683-19B81

$19.60

11

HOSE | MODEL Y/K1/K2/K3 E3,E28 L:650!160 This part replaces 13683-19B80.

13683-19B81

$19.60

11

HOSE (5X8X675) | MODEL V/W E33

13684-48EA0

Unavailable

11

HOSE (5X8X80) | MODEL X E33

13683-33C20

Unavailable

11

HOSE | MODEL Y/K1/K2/K3 E33,L:650!80 This part replaces 13683-19B80.

13683-19B81

$19.60

11A

SPRING | MODEL X/Y/K1/K2/K3 E33

13689-38A00

$10.35

12

.CAP This part replaces 13681-04010.

13681-04011

$4.71

13

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.98

14

HOLDER

13418-38A00

$10.07

15

PLUNGER

13411-01400

$12.73

16

SPRING

13417-08210

$3.51

17

JET, AIR (65)

09492-65005

$12.38

18

JET, PILOT (40)

09492-40021

$18.23

19

COVER | MODEL V/W/X This part replaces 13502-45C10.

13502-38A00

$42.37

19

COVER | MODEL Y/K1/K2/K3

13502-38A00

$42.37

20

DIAPHRAGM ASSY This part replaces 13500-05A10.

13500-05A11

$111.68

21

SPRING

13503-38B00

$14.18

22

PLATE

13389-37400

$7.98

23

SCREW This part replaces 02122-04103.

02122-0410A

$1.25

24

O RING

13251-38A00

$6.50

25

HOLDER

13385-05A11

$16.77

26

JET, MAIN (90) | MODEL V/W This part replaces 09491-90008.

09491-90011

$18.95

26

JET, MAIN (90) | MODEL X/Y/K1/K2/K3

09491-90011

$18.95

27

SCREW, DRAIN | MODEL V/W/X This part replaces 13247-13A00.

13247-02340

$4.77

27

SCREW, DRAIN | MODEL Y/K1/K2/K3

13247-02340

$4.77

28

CLAMP | MODEL V This part replaces 09404-06431.

09404-06039

$1.79

28

CLAMP | MODEL W/X/Y/K1/K2/K3 This part replaces 09404-06432.

09404-06039

$1.79

29

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$50.93

30

SPRING

13481-45C10

$6.28

31

COVER

13484-38A00

$25.55

32

SCREW

13602-48B10

$3.37

33

NUT

08310-00047

$2.43

34

SCREW

02112-04307

Unavailable

35

LEVER ASSY | MODEL V This part replaces 13554-45C00.

13554-45C20

$46.98

35

LEVER ASSY | MODEL W/X/Y/K1/K2/K3

13554-45C20

$46.98

36

FILTER | MODEL V/W/X This part replaces 13376-84110.

13376-19F00

$9.84

36

FILTER | MODEL Y/K1/K2/K3

13376-19F00

$9.84

37

O RING | MODEL V/W/X This part replaces 13374-44080.

13374-35C00

$5.73

37

O RING | MODEL Y/K1/K2/K3

13374-35C00

$5.73

38

VALVE ASSY, NEEDLE

13370-39A00

$57.78

39

SCREW

13602-05A10

$3.41

40

FLOAT

13250-38B00

$26.54

41

PIN

13254-20010

$4.83

42

SCREW

02112-05127

$2.01

43

GASKET | EXCEPT MODEL X/Y/K1/K2/K3 E33

13523-46110

$2.80

44

SCREW | EXCEPT MODEL X/Y/K1/K2/K3 E33

09125-05122

$2.14

44A

HOSE | MODEL X/Y E33 This part replaces 13683-48EG0.

13683-19B81

$19.60

44A

HOSE | MODEL K1/K2/K3 E33,L:650!450 This part replaces 13683-19B80.

13683-19B81

$19.60

45

E RING

13415-38300

$1.95

46

SCREW, PILOT (1 3/4)

13279-47070

$12.79

47

.SPRING (NT:45)

13268-47070

$4.15

48

O-RING This part replaces 13295-29900.

13295-29901

$4.15

49

WASHER

13291-29900

$1.87

50

RING

13331-33E00

Unavailable

51

SCREW

13602-48E00

Unavailable

52

BRACKET, NO.1

13627-48E00

Unavailable

53

BRACKET, NO.2

13627-48E10

Unavailable

53A

HOSE ASSY (5X8X125) | MODEL X/Y/K1/K2/K3 E33

13683-48E10

Unavailable

54

HOSE ASSY This part replaces 13683-48E00.

13683-48E01

$46.05

54

HOSE ASSY (5X8X125) | E33

13683-48E10

Unavailable

55

CABLE, ID SYNCHRO

13641-48E00

$20.17

56

CABLE, THROTTLE RETURN,F-R

13642-48E00

$26.10

57

CLAMP | MODEL V/W E33 This part replaces 09407-18403.

09407-18402

$2.29

58

SHEET, HEAT SHIELD | MODEL V/W E33 %F.NO.V2102739 This part replaces 13840-48E00.

13840-48E01

Unavailable

58

SHEET, HEAT SHIELD | MODEL V/W E33 F.NO.V2102740%

13840-48E01

Unavailable

58

SHEET, HEAT SHIELD | MODEL X E33

13840-48E01

Unavailable

59

HOSE | MODEL X/Y E33 This part replaces 13684-48EG0.

13684-02F10

Unavailable

59

HOSE (5.3X10.5X450) | MODEL K1/K2/K3 E33

13684-02F10

Unavailable

60

.NIPPLE | MODEL X/Y/K1/K2/K3 E33

13685-48B00

$11.96

61

HOSE,5X10X600 | MODEL X/Y/K1/K2/K3 E33 L:600!500 This part replaces 09355-50105-600.

44421-13ER0

$9.48

62

VALVE, AIR VENT | MODEL X/Y/K1/K2/K3 E33

13590-48E00

Unavailable

63

BOLT, CLAMP | MODEL X/Y/K1/K2/K3 E33 This part replaces 01550-06123.

01550-0612A

$2.01
