2003 Suzuki VZ800 Fuel Cock Diagram

← All diagrams

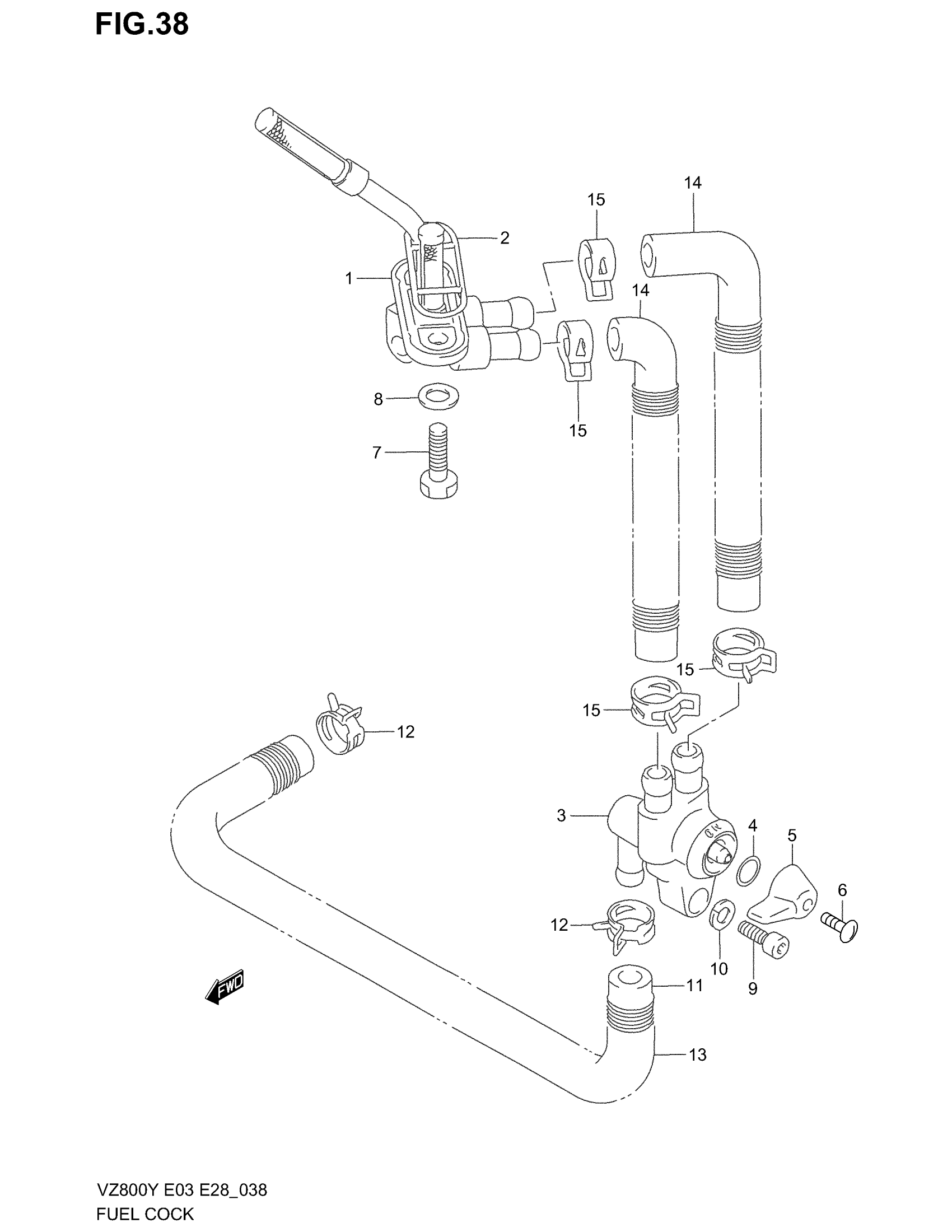

Find the part on the Fuel Cock diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki VZ800 Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FILTER UNIT, FUEL | Includes Item(s) 2

44330-48E00

1
Out of stock

2

.GASKET JOINT This part replaces 44348-87420.

44348-87421

1
Out of stock

3

COCK ASSY, FUEL | Includes Item(s) 4 - 6

44300-38B13

1
Out of stock

4

O RING

44353-12C01

1

$7.41

In stock

5

LEVER

44306-38A00

1
Out of stock

6

SCREW

44307-38A00

1
Out of stock

7

BOLT This part replaces 09128-06006.

09128-06057

2
Out of stock

8

GASKET (6.4X11.5X0.8)

09168-06026

2
Out of stock

9

BOLT | MODEL V This part replaces 07130-05123.

07130-0512B

1
Out of stock

9

BOLT | MODEL W/X/Y/K1 This part replaces 44361-48E00.

09106-05026

1
Out of stock

9

BOLT | MODEL K2/K3

09106-05026

1
Out of stock

10

LOCK WASHER This part replaces 08321-01053.

08321-0105A

1
Out of stock

11

HOSE, FUEL PUMP

44421-48E00

1
Out of stock

12

CLIP This part replaces 09401-11407.

09401-11415

2
Out of stock

13

SPRING

09440-14047

1
Out of stock

14

HOSE,FUEL FILTE This part replaces 44431-48E00.

44431-48E02

2
Out of stock

15

CLIP

09401-13417

4
Out of stock
