2001 Yamaha VX700F 8DS4 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

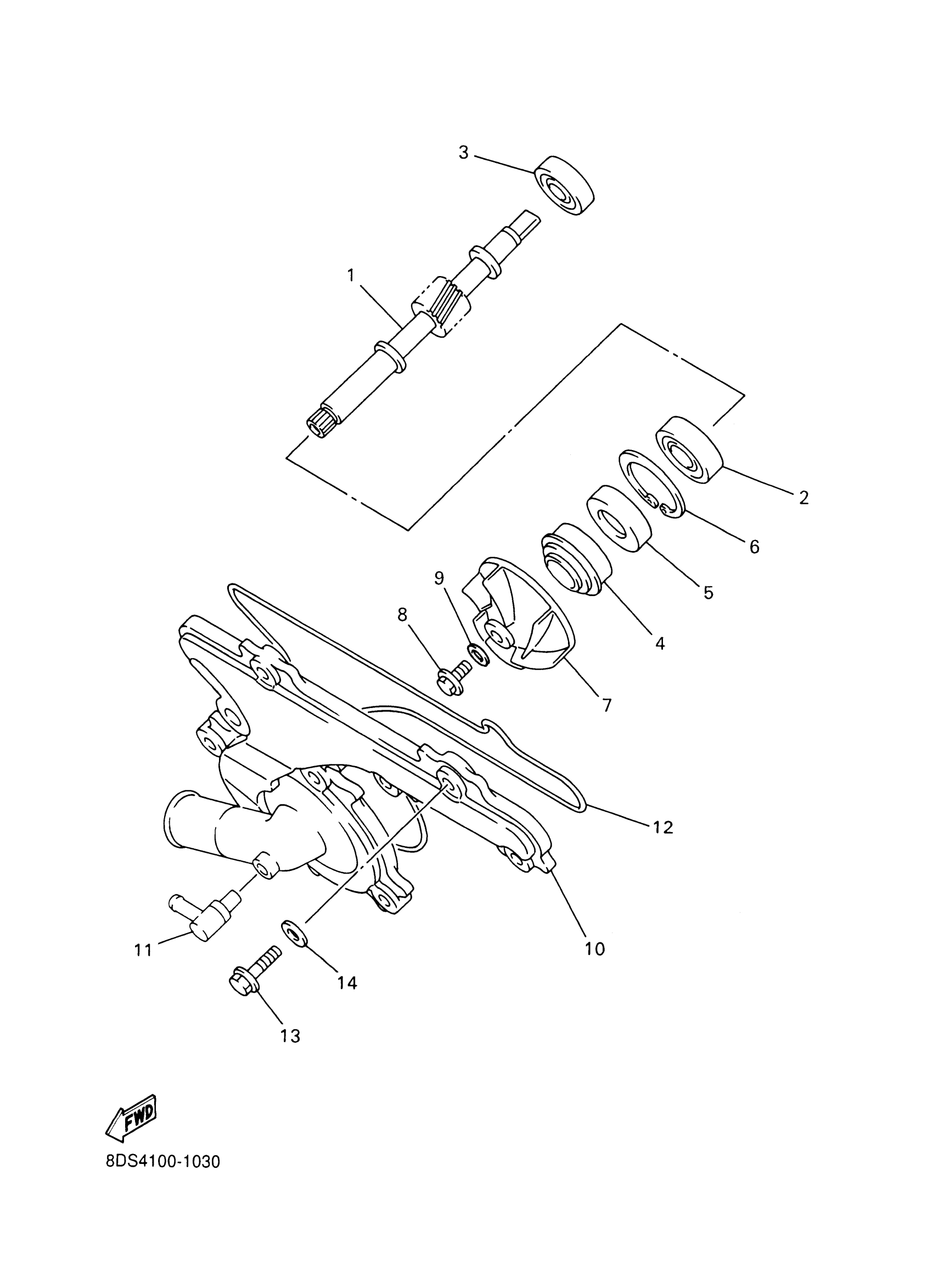

2001 Yamaha VX700F 8DS4 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, IMPELLER SHAFT

8CH-12459-01-00

1
Out of stock

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1

$25.40

In stock

3

BRG,R-B 6000 26MM 19G KY

93306-00004-00

1

$31.81

In stock

4

SEAL, MECHANICAL

11H-12438-10-00

1

$50.88

In stock

5

OIL SEAL(8CP)

93102-12461-00

1

$9.82

In stock

6

CIRCLIP (3Y1)

93420-28055-00

1

$6.89

In stock

7

IMPELLER, WATER PUMP

8CH-12451-02-00

1
Out of stock

8

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

9

WASHER, SEAL

90210-06001-00

1
Out of stock

10

COVER, HOUSING

8CH-12422-10-00

—
Out of stock

11

JOINT 1

8CH-12469-00-00

—

$31.77

In stock

12

O-RING

8CH-12439-00-00

1

$46.07

In stock

13

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

14

GASKET (4V2)

90430-06166-00

1

$3.45

In stock
