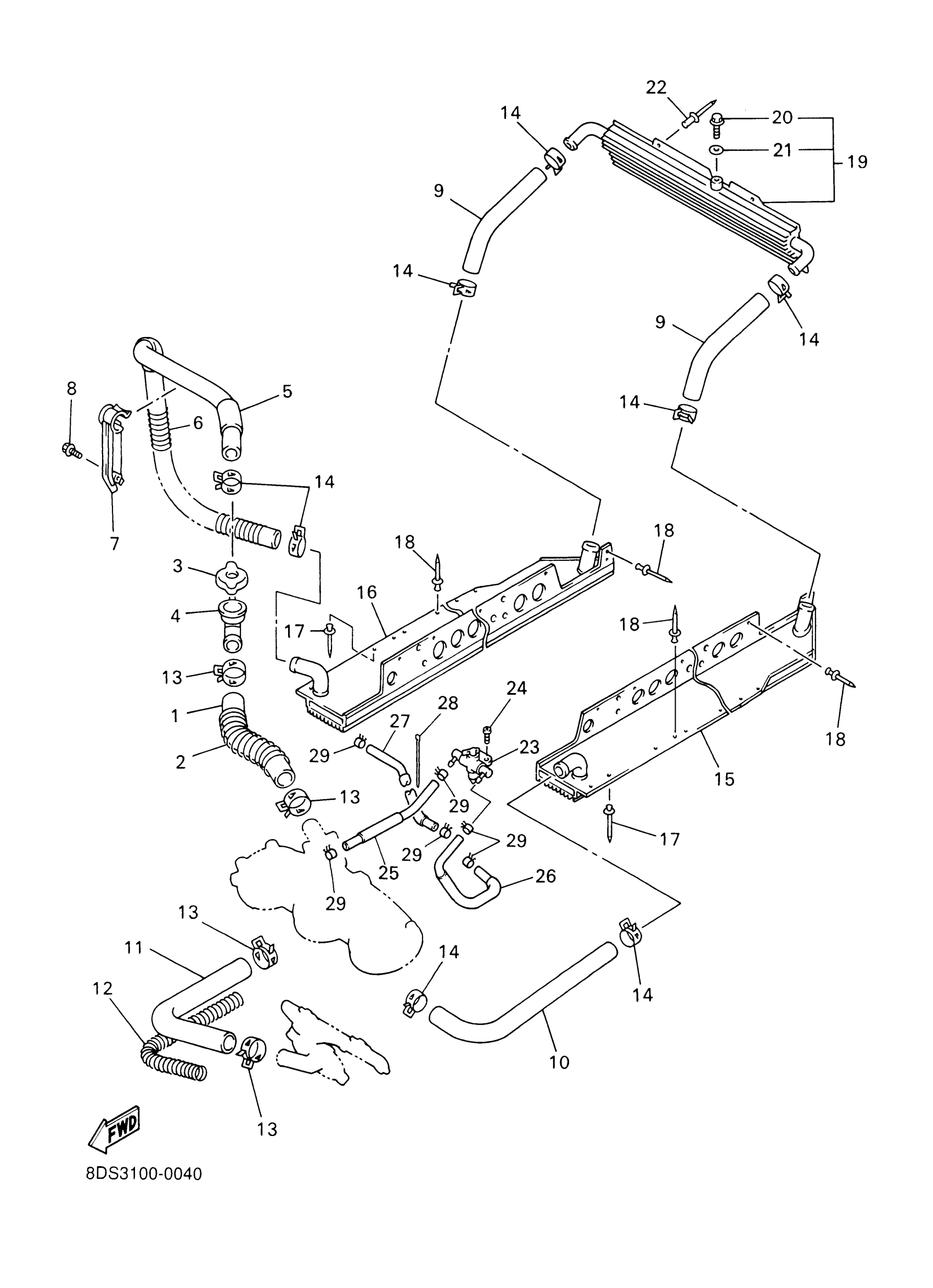

Find the part on the Radiator Hose diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VX700F 8DS4 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 2

8CH-12482-00-00

1
Out of stock

2

SPRING, COMPRESSION

90501-100K8-00

1
Out of stock

3

CAP, RADIATOR

4FL-12462-00-00

1
Out of stock

4

SUPT, FILLER NECK

8CR-12591-00-00

1
Out of stock

5

PIPE 3

8CH-12483-10-00

1
Out of stock

6

SPRING, COMPRESSION

90501-14002-00

1
Out of stock

7

CLAMP 1

8CR-12491-00-00

1
Out of stock

8

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

9

PIPE 4

8CR-12484-00-00

—

$15.52

In stock

10

PIPE 5

8CR-12485-00-00

1
Out of stock

11

PIPE 6

99999-03253-00

1
Out of stock

12

SPRING, COMPRESSION

90501-120K7-00

1
Out of stock

13

CLIP (8M6)

90467-28046-00

1

$12.43

In stock

14

CLIP (10V)

90467-23067-00

1

$3.86

In stock

15

HEAT EXCHANGER

8CR-1240E-03-00

1
Out of stock

16

HEAT EXCHANGER

8CR-1240F-03-00

1
Out of stock

17

RIVET, BLIND(8CR)

90267-47186-00

—

$2.31

In stock

18

RIVET, BLIND

90267-47195-00

—

$3.33

In stock

19

HEAT EXCHANGER ASSY 4

8CH-1241A-01-00

1
Out of stock

20

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

21

WASHER, SEAL (7G5)

90210-06006-00

—

$5.72

In stock

22

RIVET, BLIND

90267-47195-00

—

$3.33

In stock

23

COCK ASSY

8CH-1249A-03-00

1
Out of stock

24

SCREW, BINDING

98907-06020-00

—

$6.18

In stock

25

HOSE 1

8CH-1243A-01-00

1
Out of stock

26

HOSE 2

8CH-1243E-10-00

1
Out of stock

27

HOSE,3

8EX-1243F-00-00

1
Out of stock

28

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

29

CLIP

90467-11028-00

1

$5.14

In stock
