2001 Yamaha VX700F 8DS4 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

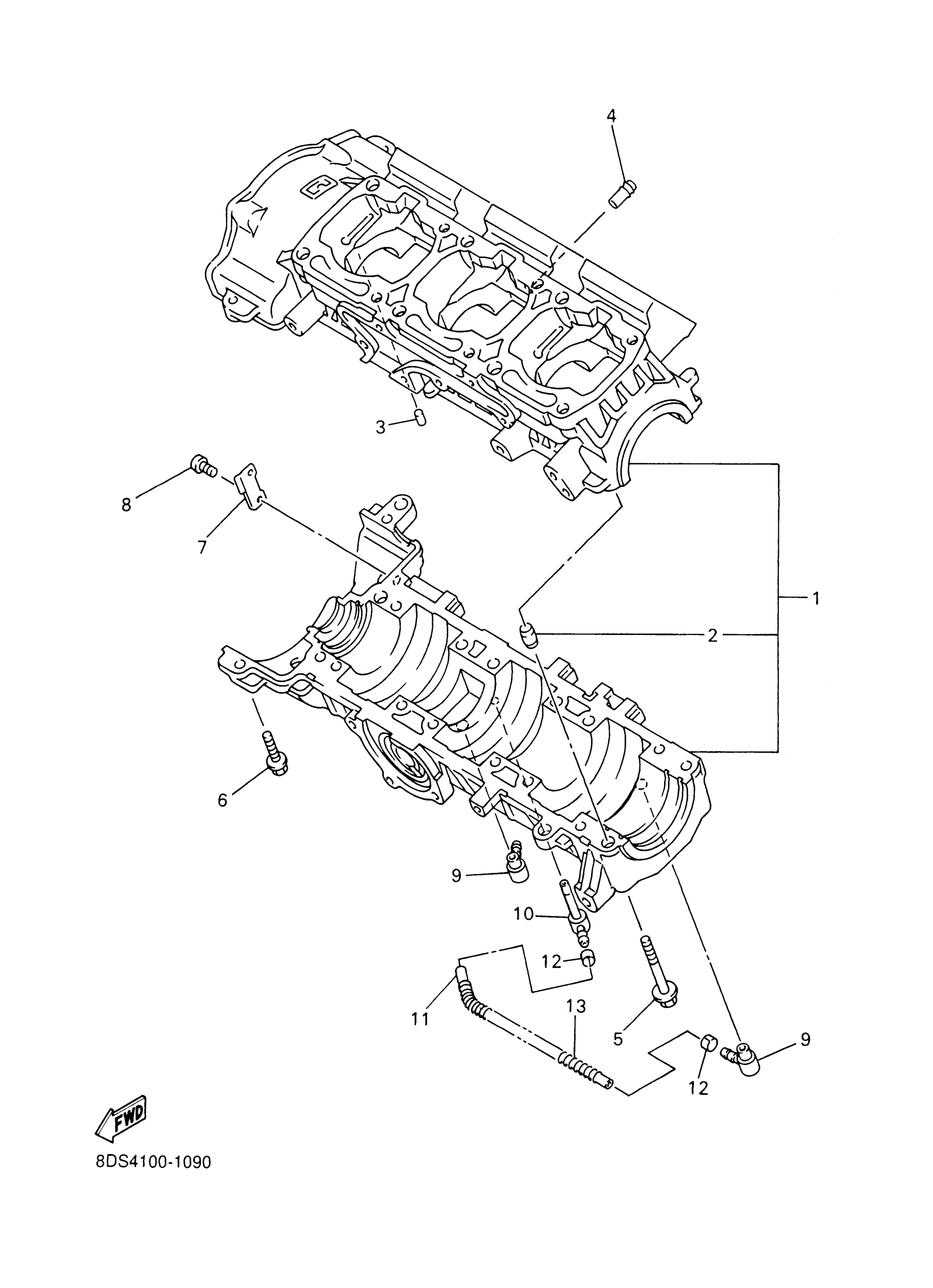

2001 Yamaha VX700F 8DS4 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8CH-15100-03-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

PIN, DOWEL (8G8)

93605-10108-00

1

$6.68

In stock

4

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

5

BOLT, FLANGE(JF2)

95817-08080-00

1

$3.37

In stock

6

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

7

CLAMP

90461-12145-00

—
Out of stock

8

SCREW, PAN

98517-06012-00

1

$3.14

In stock

9

NOZZLE

353-13552-01-00

1
Out of stock

10

NOZZLE

8CH-13552-00-00

—

$14.62

In stock

11

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1

$9.15

In stock

12

CLIP (2A6)

90468-02025-00

1

$7.02

In stock

13

SPRING, COMPRESSION(3JK)

90501-101J5-00

1
Out of stock
Crankshaft Piston →
