2001 Yamaha VX700F 8DS4 Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

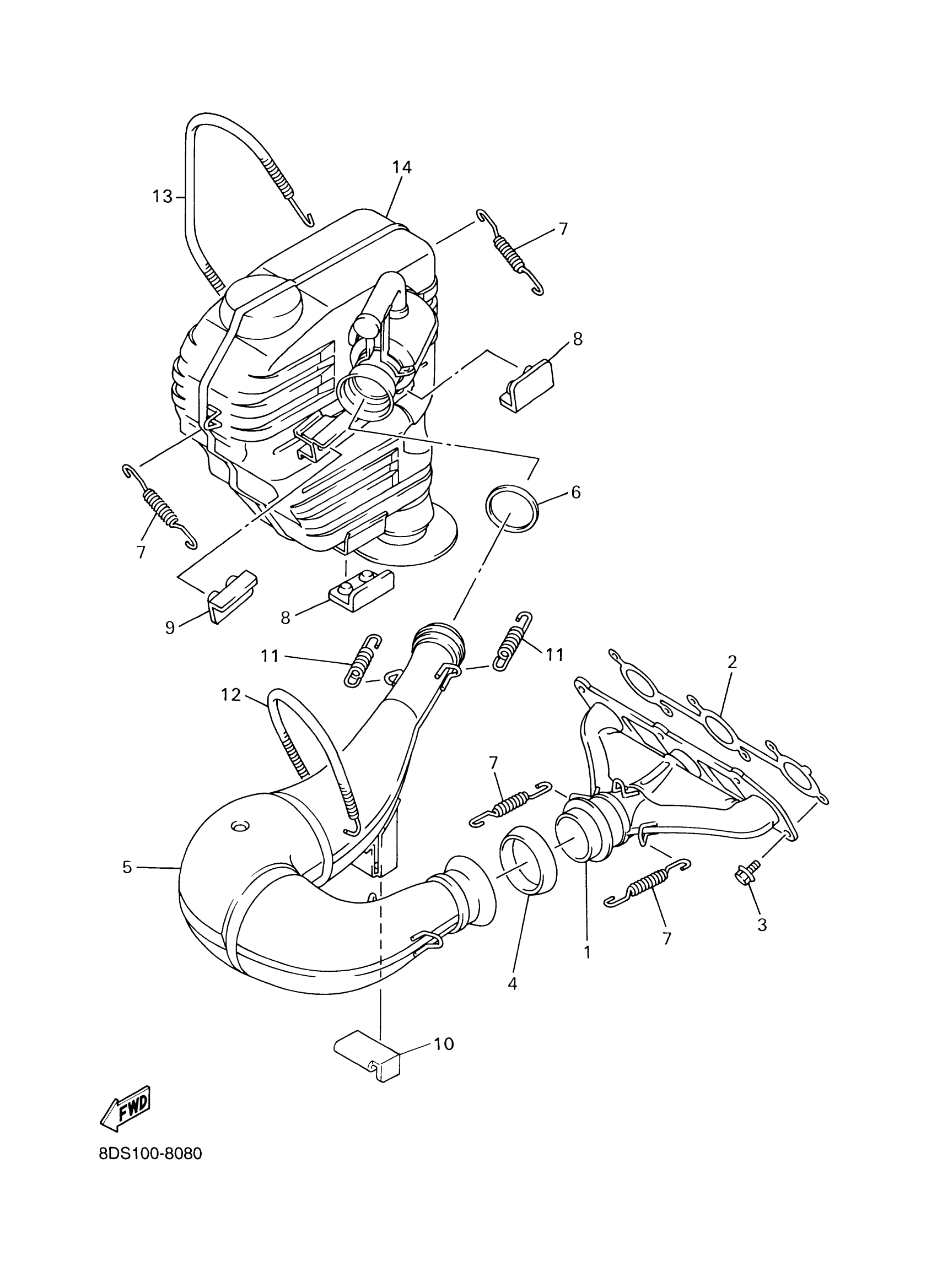

2001 Yamaha VX700F 8DS4 Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSY 1

8CH-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

8CH-14613-01-00

1

$49.09

In stock

3

BOLT, SMALL FLANGE

95027-08020-00

1
Out of stock

4

GASKET, MUFFLER

8CA-14714-00-00

1

$53.05

In stock

5

EXHAUST PIPE ASSY 2

8CH-14620-10-00

1

$566.99

In stock

6

GASKET, MUFFLER

8AB-14714-01-00

1

$63.02

In stock

7

SPRING, TENSION (8R7)

90506-20272-00

1

$9.40

In stock

8

PROTECTOR, MUFFLER 2

83R-14728-01-00

1

$29.25

In stock

9

PROTECTOR, MUFFLER 2

8CR-14728-00-00

1
Out of stock

10

PROTECTER, MUFFLER 3

8CR-14738-00-00

1
Out of stock

11

SPRING, TENSION (8M6)

90506-20093-00

1

$7.06

In stock

12

SPRING, TENSION

90506-16497-00

1
Out of stock

13

SPRING, TENSION(83R)

90507-16046-00

—

$20.97

In stock

14

SECOND SILENCER, MUFFLER

8CH-14640-20-00

1
Out of stock
