2001 Yamaha VX700F 8DS4 Cylinder Head Diagram

← All diagrams

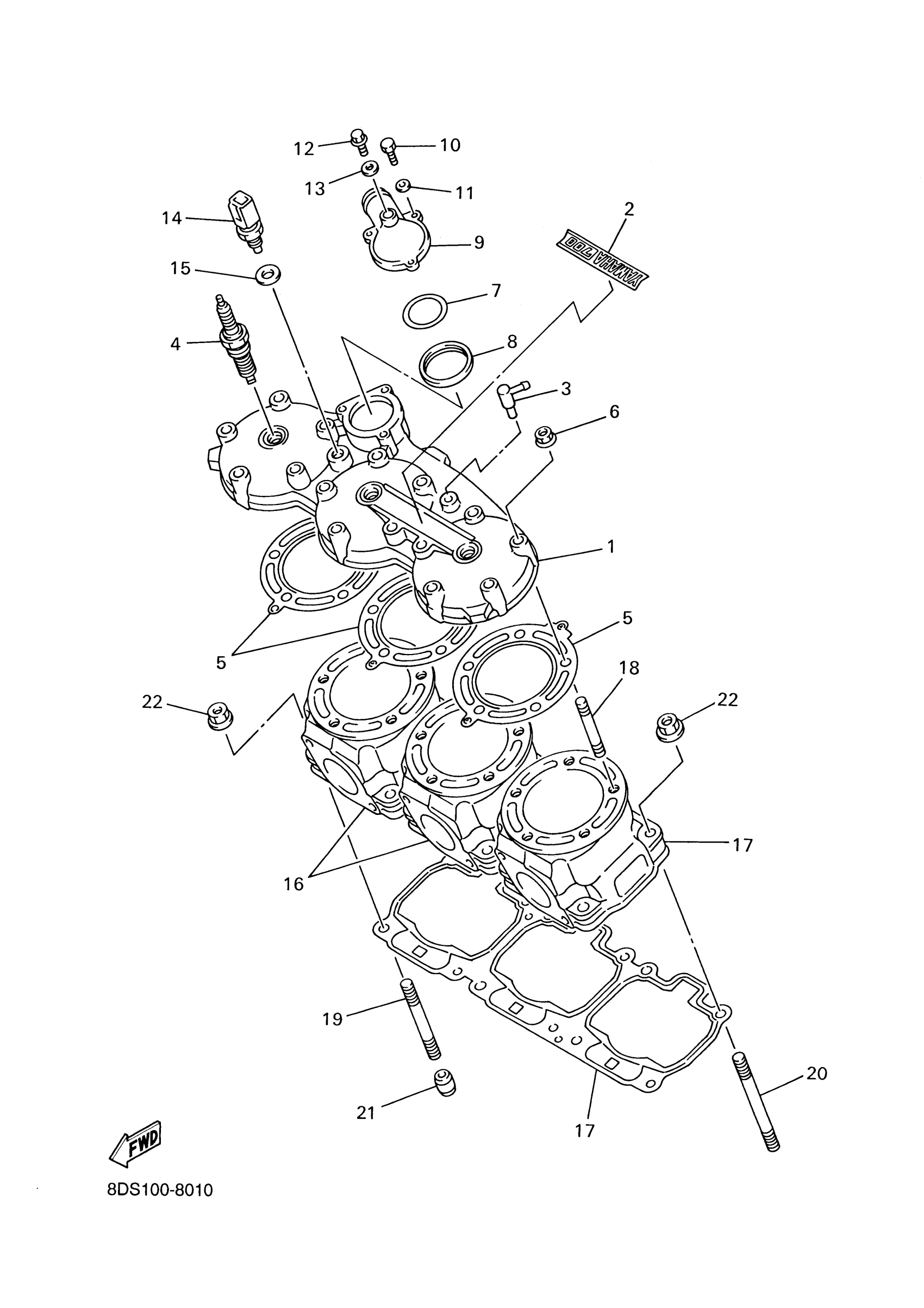

Find the part on the Cylinder Head diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VX700F 8DS4 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

8CH-11111-10-00

1
Out of stock

2

EMBLEM

8CH-1111K-00-00

1
Out of stock

3

JOINT 1

8CH-12469-00-00

—

$31.77

In stock

4

1

$3.96

In stock

5

GASKET, CYLINDER HEAD 1

8CH-11181-01-00

1

$67.12

In stock

6

NUT(55X)

90179-08491-00

1
Out of stock

7

WASHER, PLATE (8U9)

90201-345G2-00

1

$10.68

In stock

8

SEAL, THERMOSTAT

8A7-12412-01-00

1

$14.25

In stock

9

COVER, THERMOSTAT

82M-12413-00-00

1
Out of stock

10

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

11

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

12

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

13

GASKET (4V2)

90430-06166-00

1

$3.45

In stock

14

THERMOSENSOR ASSY

8CC-85790-01-00

1

$86.91

In stock

15

WASHER, PLATE

90201-12790-00

1

$6.85

In stock

16

CYLINDER 1

8CH-11311-02-00

—

$849.99

In stock

17

GASKET, CYLINDER

8CH-11351-00-00

—

$79.85

In stock

18

BOLT, STUD (5X4)

90116-08392-00

—

$3.84

In stock

19

BOLT STUD 363111790000

90116-08104-00

—

$14.38

In stock

20

BOLT, STUD (8H8)

90116-08302-00

—
Out of stock

21

PIN, DOWEL(3VD)

99530-10114-00

—

$2.23

In stock

22

NUT(55X)

90179-08491-00

1
Out of stock
