2001 Yamaha VX700F 8DS4 Crankshaft Piston Diagram

← All diagrams

Find the part on the Crankshaft Piston diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

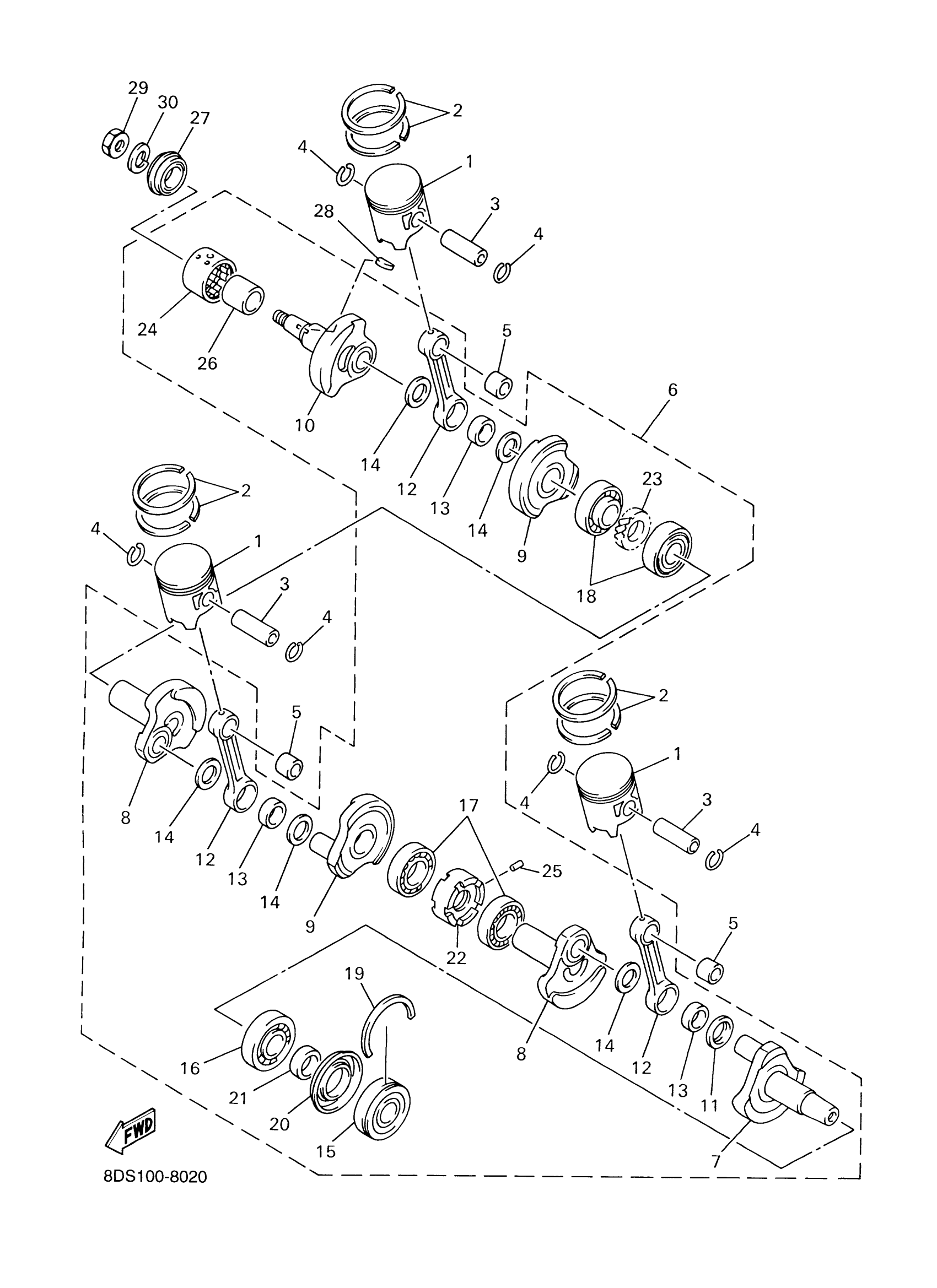

2001 Yamaha VX700F 8DS4 Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (STD)

8CH-11631-00-A0

1

$129.12

In stock

2

PISTON RING SET (STD)

8CH-11603-00-00

1

$64.37

In stock

3

PIN, PISTON

8H8-11633-00-00

1

$30.72

In stock

4

CIRCLIP (8H0)

93450-21053-00

1

$3.43

In stock

5

BEARING

93310-32009-00

1

$47.12

In stock

6

CRANKSHAFT ASSY

8CH-11400-12-00

—

$1,953.99

In stock

7

CRANK 1

8CH-11412-00-00

—

$399.78

In stock

8

CRANK 2

8CH-11422-00-00

1
Out of stock

9

. CRANK 3

8CH-11432-00-00

1
Out of stock

10

CRANK 4

8CH-11442-00-00

—

$217.34

In stock

11

WASHER, CRANK PIN

8CH-11685-00-00

1

$31.08

In stock

12

ROD, CONNECTING

8CH-11651-00-00

1
Out of stock

13

BEARING

93310-527S9-00

1

$72.14

In stock

14

WASHER, PLATE

90201-277R4-00

1
Out of stock

15

BEARING

93306-30715-00

1

$141.32

In stock

16

BEARING

93306-30716-00

—

$85.92

In stock

17

. BEARING

93306-28201-00

1
Out of stock

18

. BEARING

93306-28202-00

1
Out of stock

19

CIRCLIP (834)

93440-80023-00

—
Out of stock

20

OIL SEAL

93103-45179-00

—
Out of stock

21

. COLLAR

8CH-11478-00-00

1
Out of stock

22

. SEAL, LABYRINTH 1

8CH-11515-00-00

1
Out of stock

23

GEAR, CRANK SHAFT

8CH-11434-00-00

—
Out of stock

24

BEARING

93390-00028-00

1
Out of stock

25

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

26

BEARING

8DF-1142A-01-00

1
Out of stock

27

OIL SEAL(82M)

93103-32153-00

—

$26.02

In stock

28

KEY, WOODRUFF (8R9)

90280-05033-00

—
Out of stock

29

NUT

90170-16425-00

—
Out of stock

30

WASHER(6TD)

92907-16600-00

—

$5.86

In stock
