2001 Yamaha VX700F 8DS4 Taillight Diagram

← All diagrams

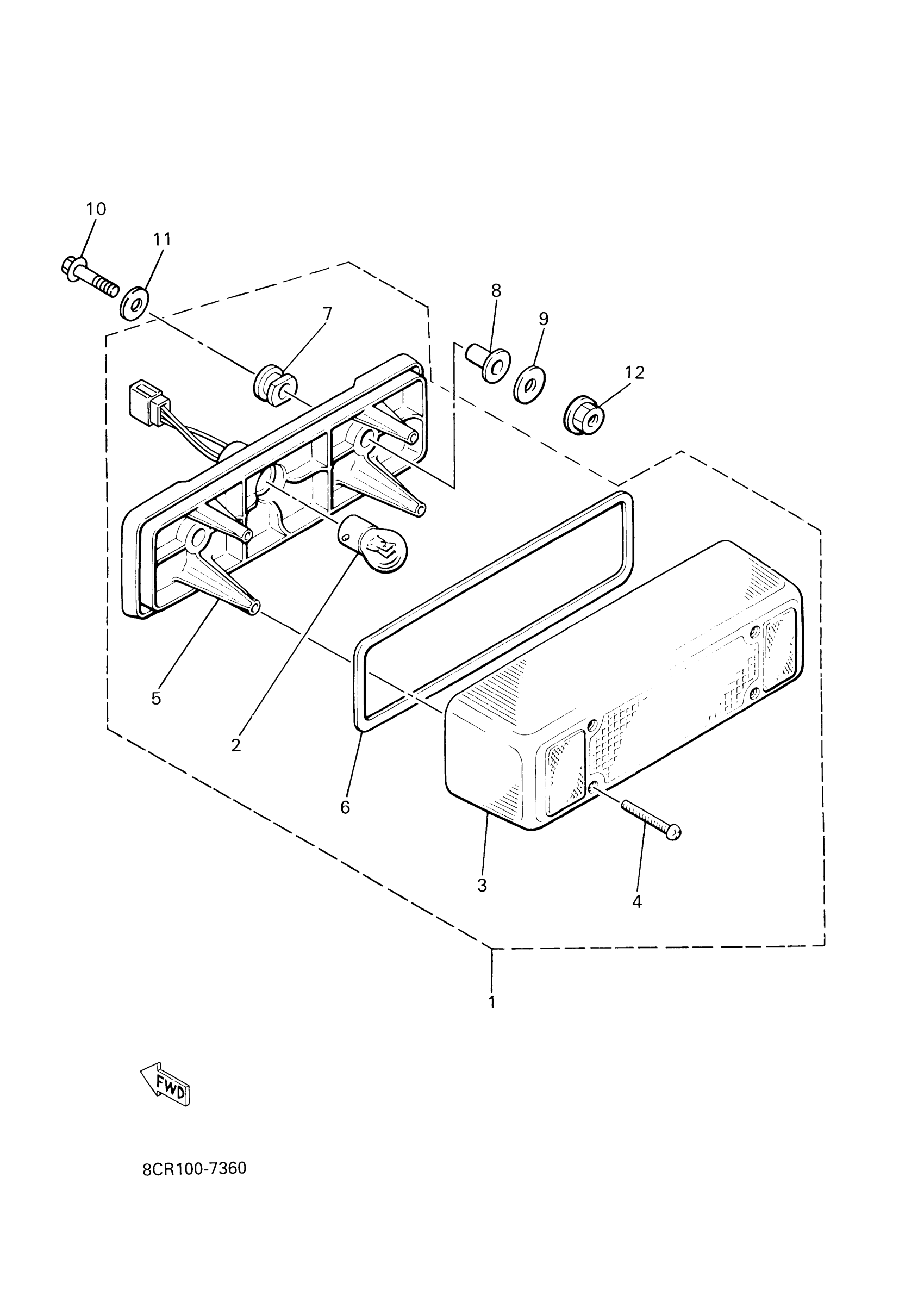

Find the part on the Taillight diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VX700F 8DS4 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

82M-84710-01-00

1
Out of stock

2

BULB(12V32/3CP)1157

137-84714-61-XX

1
Out of stock

3

LENS, TAILLIGHT

8K4-84721-01-00

1

$37.66

In stock

4

1

$5.51

In stock

5

BASE, TAILLIGHT

82M-84711-01-00

—
Out of stock

6

SEAL

3TJ-14457-00-00

—
Out of stock

7

GROMMET

8K4-84718-00-00

1
Out of stock

8

COLLAR

90387-06166-00

1
Out of stock

9

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

10

BOLT(8BC)

97017-06040-00

1
Out of stock

11

WASHER PLATE 137241870000

90201-06072-00

1
Out of stock

12

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock
