2001 Yamaha VX700F 8DS4 Alternate Starter Motor Diagram

← All diagrams

Find the part on the Alternate Starter Motor diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

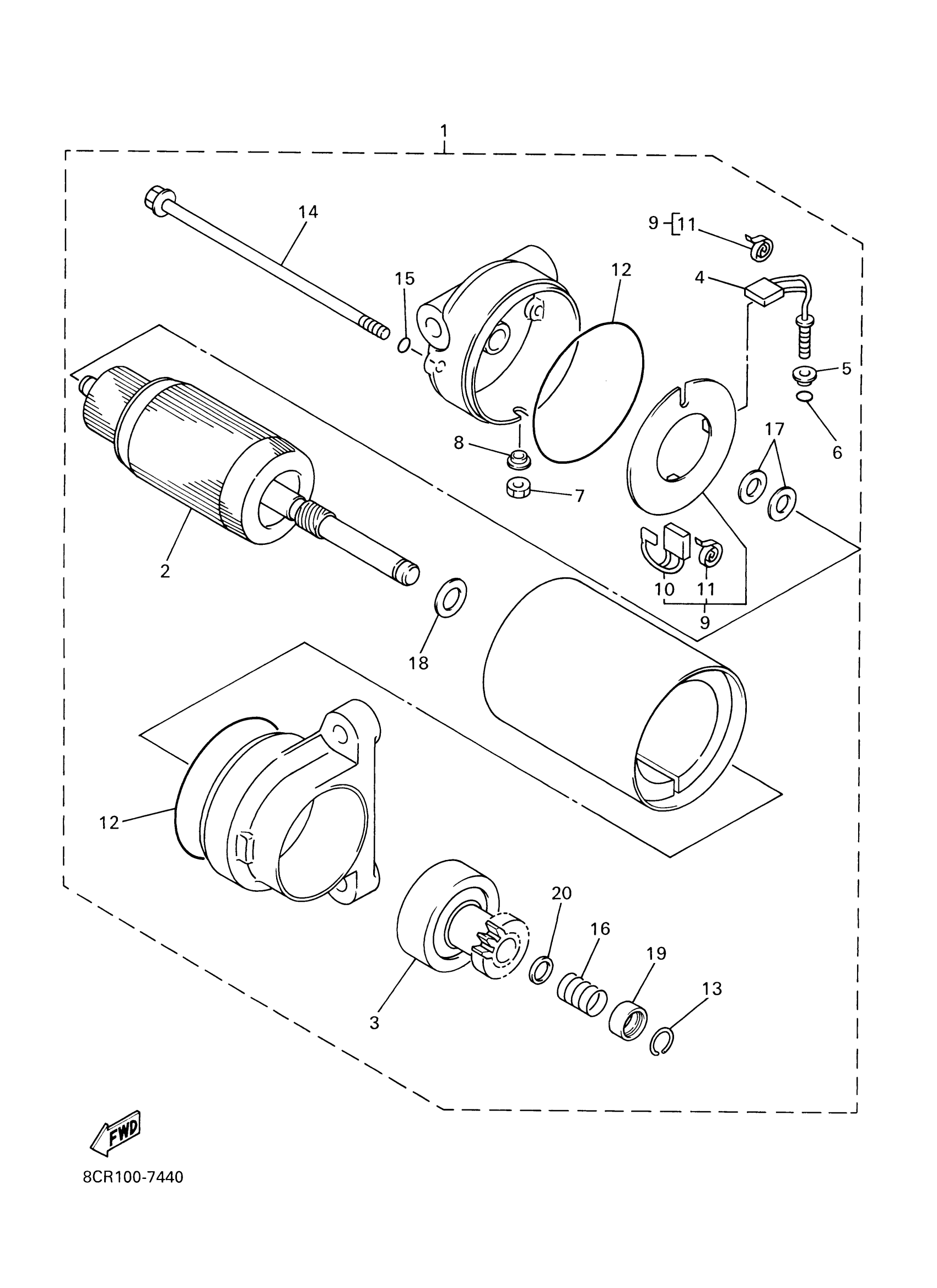

2001 Yamaha VX700F 8DS4 Alternate Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR ASSY

8CW-81800-01-00

1
Out of stock

2

. ARMATURE ASSY

8CW-81850-00-00

1
Out of stock

3

. CLUTCH, OVER RUN

8CW-81832-00-00

1
Out of stock

4

. BRUSH 1

7GA-81811-50-00

1
Out of stock

5

. GROMMET

73A-81829-50-00

1

$9.62

In stock

6

. O-RING

73A-81847-00-00

1

$8.49

In stock

7

NUT

4H7-81872-00-00

—

$4.86

In stock

8

. GROMMET

73A-81829-00-00

1

$5.49

In stock

9

BRUSH HOLDER ASSY

4H7-81840-01-00

1
Out of stock

10

.. BRUSH 2

8CW-81812-00-00

1
Out of stock

11

SPRING, BRUSH

8L6-81813-50-00

—

$3.77

In stock

12

O-RING

4H7-81844-00-00

—

$21.05

In stock

13

RING

8L6-81834-50-00

1

$3.37

In stock

14

BOLT

3GD-81826-00-00

1
Out of stock

15

O-RING

8L6-81847-50-00

1

$3.05

In stock

16

. SPRING, LEVER

8CW-81836-00-00

1
Out of stock

17

WASHER 1

4H7-81843-50-00

—

$3.74

In stock

18

WASHER

8L6-81835-50-00

—

$3.05

In stock

19

. RING, STOP

8CW-81833-00-00

1
Out of stock

20

WASHER, PLATE

8BB-8185A-00-00

—

$6.58

In stock
