2001 Yamaha VX700F 8DS4 Handle Switch Lever Diagram

← All diagrams

Find the part on the Handle Switch Lever diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

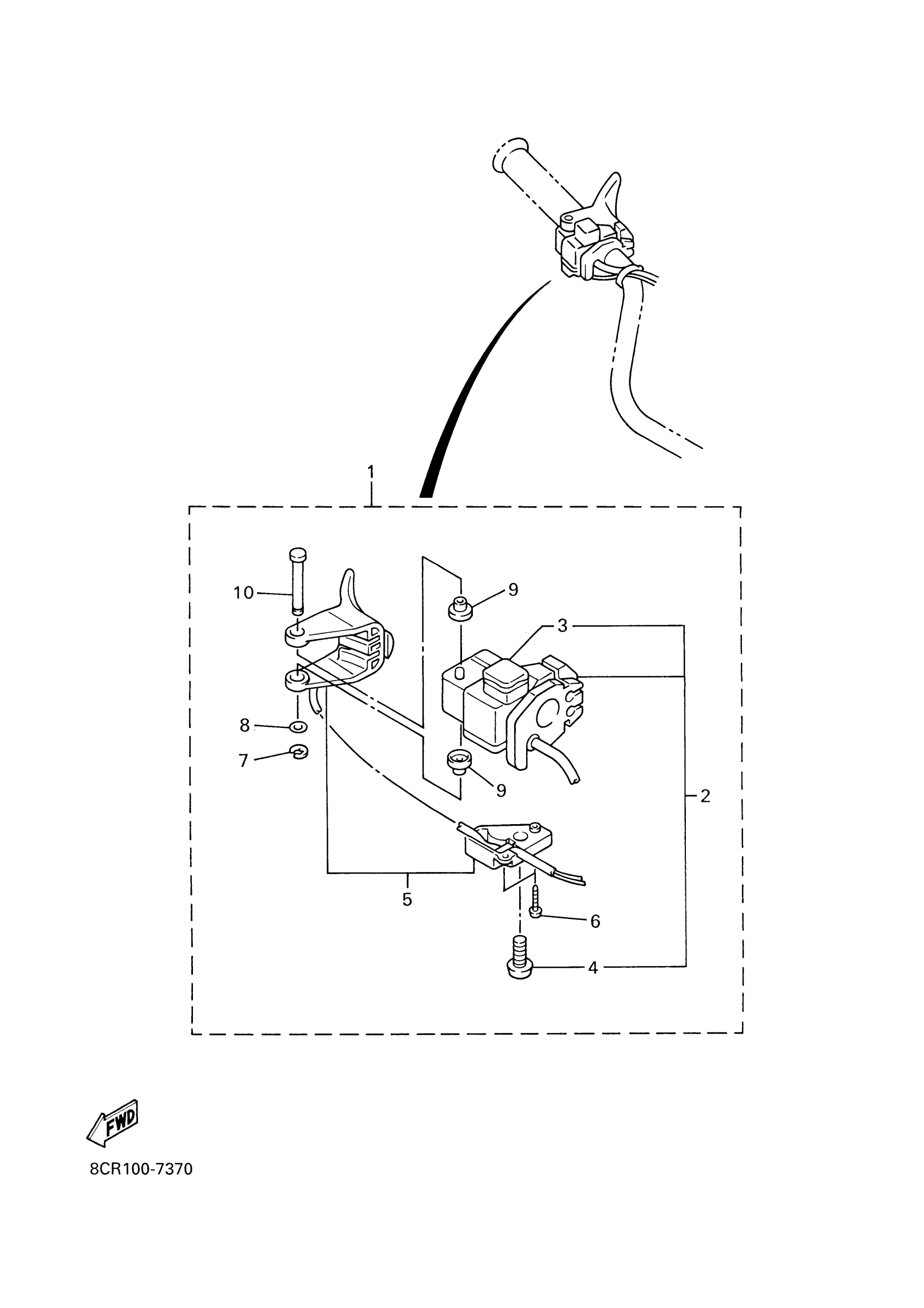

2001 Yamaha VX700F 8DS4 Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (RIGHT)

8DN-82720-00-00

—

$319.80

In stock

2

. SWITCH, HANDLE 3 (RIGHT)

8AV-83963-00-00

1
Out of stock

3

ENGINE STOP SWITCH ASSY

8AU-82575-09-00

1

$106.94

In stock

4

SCREW, ADJUSTING

84M-83928-00-00

1
Out of stock

5

. THUMB WARMER ASSY

8DN-82970-00-00

1
Out of stock

6

SCREW, TAPPING(3NX)

97707-30514-00

—
Out of stock

7

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

8

WASHER, SPECIAL

85G-83663-00-00

1

$7.22

In stock

9

CAP 1

85G-83956-00-00

1

$6.66

In stock

10

SHAFT

8R6-8399F-00-00

1

$10.85

In stock
