2001 Yamaha VX700F 8DS4 Alternate Starter KIT Diagram

← All diagrams

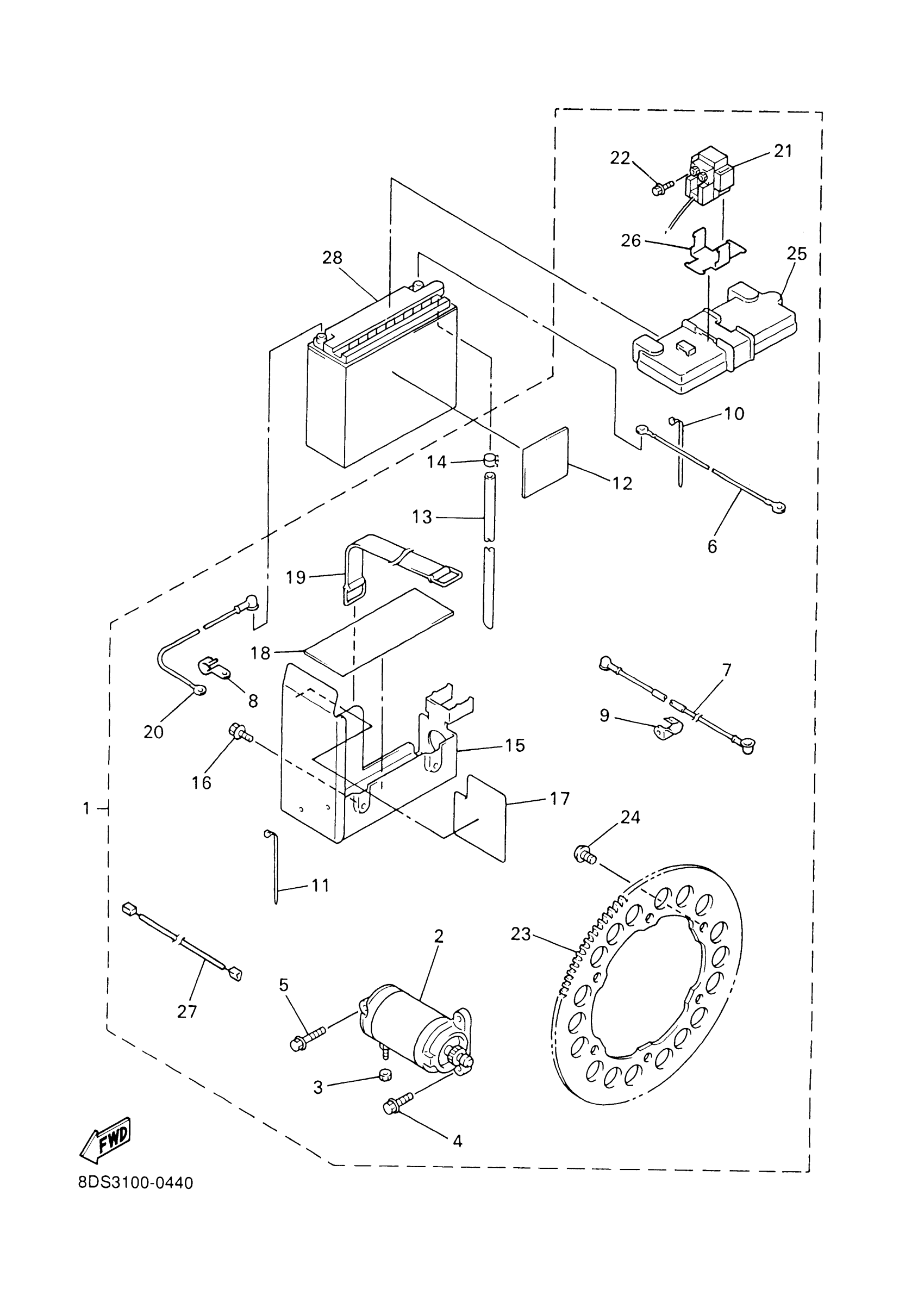

Find the part on the Alternate Starter KIT diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VX700F 8DS4 Alternate Starter KIT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ELECTRIC START KIT

8DS-W8180-21-KT

1
Out of stock

2

STARTING MOTOR ASSY

8CW-81800-01-00

1
Out of stock

3

NUT(6TA)

95317-06600-00

1

$2.69

In stock

4

BOLT, SMALL FLANGE

95027-08030-00

1
Out of stock

5

BOLT, FLANGE(4ES)

95027-08080-00

—
Out of stock

6

. WIRE, MINUS LEAD

8DY-82116-00-00

1
Out of stock

7

. WIRE, LEAD

8DY-82117-00-00

1
Out of stock

8

CLAMP

90462-08016-00

1
Out of stock

9

. CLAMP

90465-10381-00

1
Out of stock

10

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

11

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

12

DAMPER

8CW-82176-00-00

—

$6.14

In stock

13

PIPE (L320)

8CW-8235W-01-00

1
Out of stock

14

CLIP(41W)

90467-08092-00

1

$6.86

In stock

15

. BRACKET, BATTERY

8DM-2199G-00-00

1
Out of stock

16

BOLT (796)

90109-06513-00

—
Out of stock

17

. SHIELD, HEAT

8CW-2199H-00-00

1
Out of stock

18

. SEAT, BATTERY

8DM-82122-00-00

1
Out of stock

19

BAND, BATTERY

8DM-82131-10-00

—

$12.75

In stock

20

WIRE, PLUS LEAD

8DY-82115-00-00

—

$21.60

In stock

21

—

$99.43

In stock

22

BOLT, SMALL FLANGE

95027-06008-00

—

$5.60

In stock

23

GEAR 1

8DM-1760A-18-00

—

$377.09

In stock

24

—

$2.75

In stock

25

COVER, BATTERY

8DM-82129-01-00

—

$51.09

In stock

26

. HOLDER, RELAY

8CY-81952-00-00

1
Out of stock

27

. WIRE, SUB LEAD

8DS-82309-00-00

1
Out of stock

28

. FUSE BOX ASSY

8DS-82170-00-00

1
Out of stock

29

Y50N18LA YUASA BATTERY

Y50-N18LA-00-00

1
Out of stock
