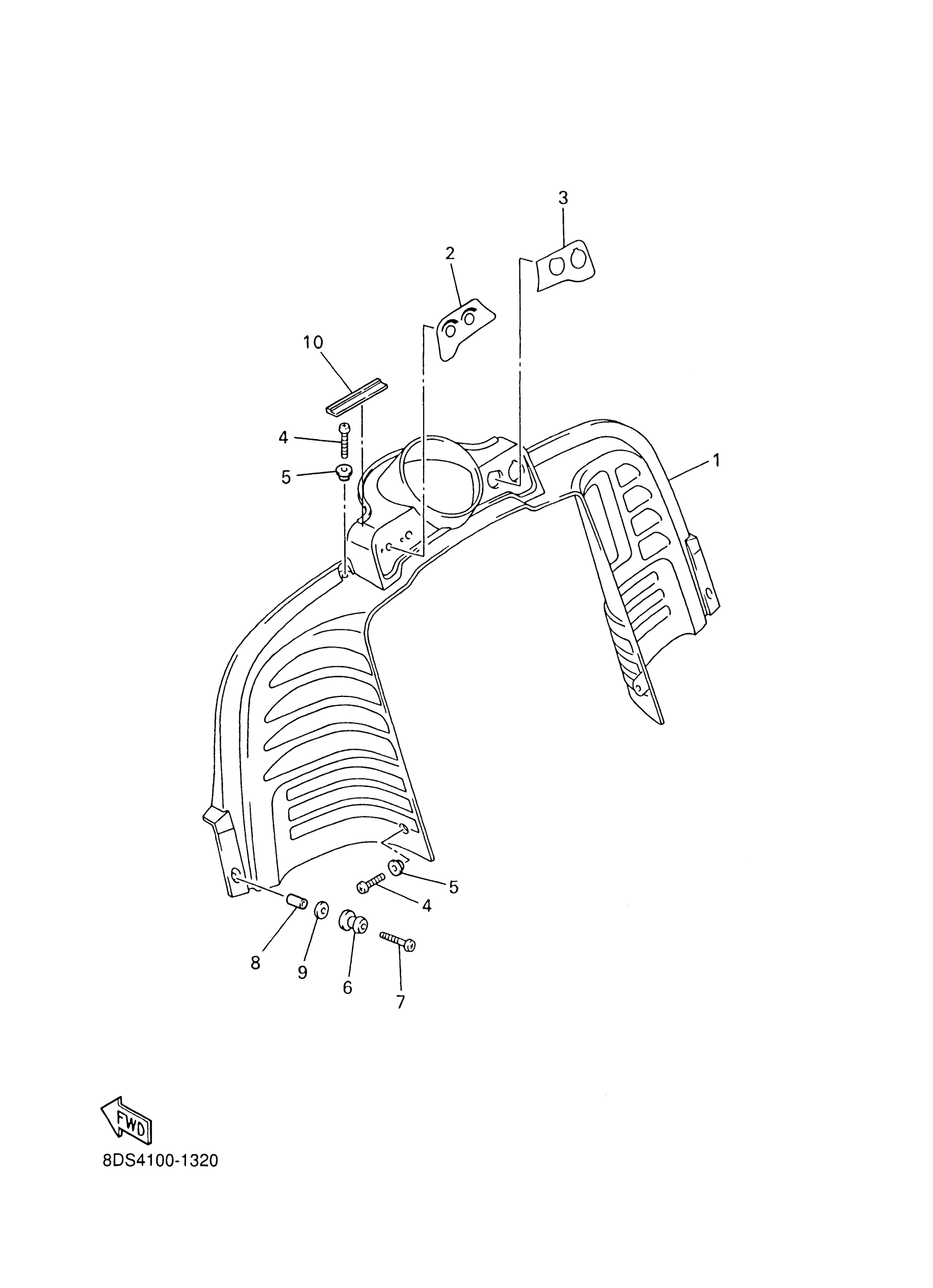

Find the part on the Instrument Panel diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VX700F 8DS4 Instrument Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, INSTRUMENT

8DM-77711-00-00

1
Out of stock

2

INDICATOR 1

8DM-77741-00-00

1
Out of stock

3

INDICATOR 2

8DM-77742-00-00

1
Out of stock

4

SCREW, BINDING

98907-06012-00

1
Out of stock

5

COLLAR

90387-0611K-00

1
Out of stock

6

. HOLDER, LATCH

8M6-77175-00-00

1

$12.72

In stock

7

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

8

COLLAR

90387-06144-00

1

$5.28

In stock

9

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

10

TRIM 1

8CR-2196T-00-00

1
Out of stock
