2009 Kawasaki Vulcan® 900 Custom Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

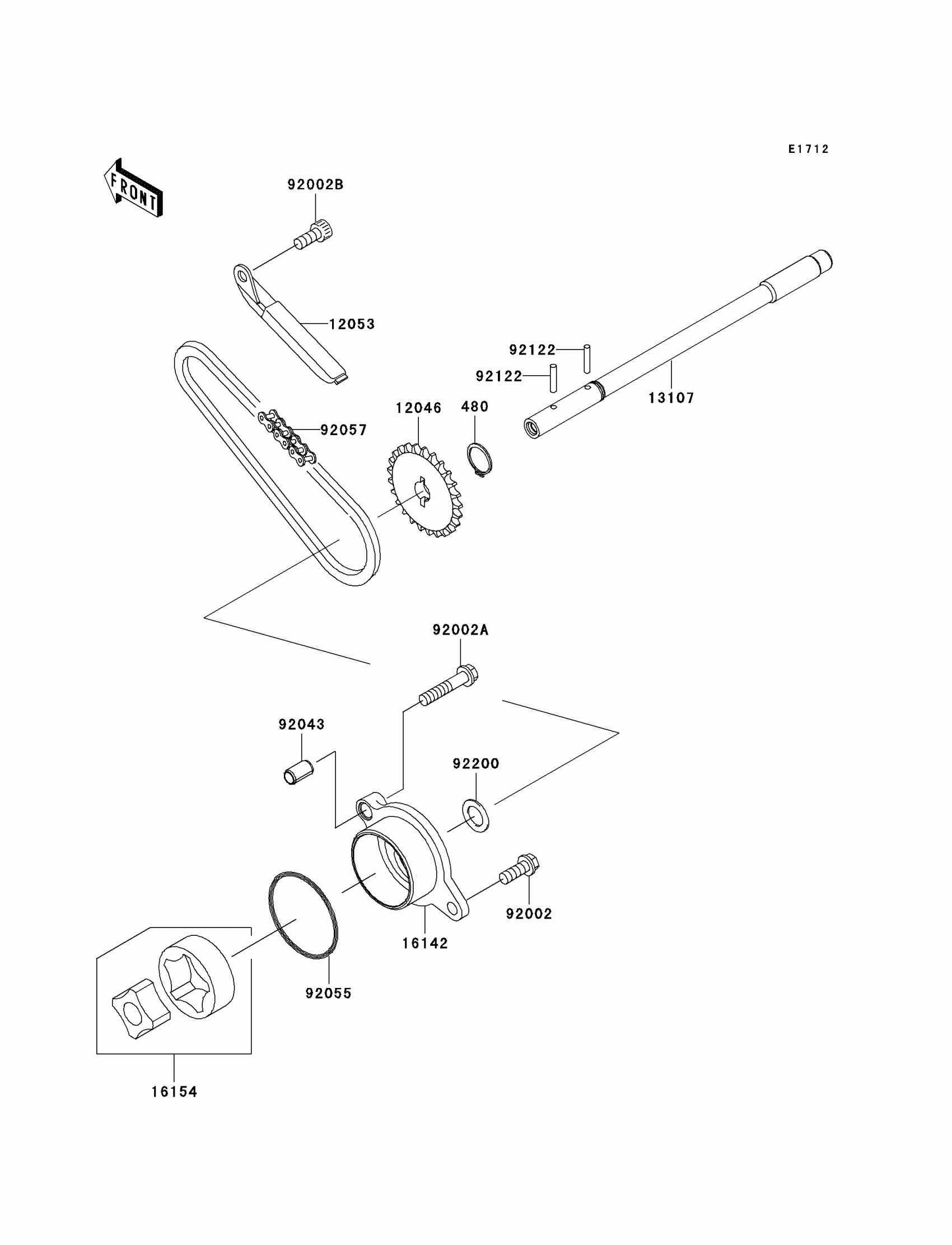

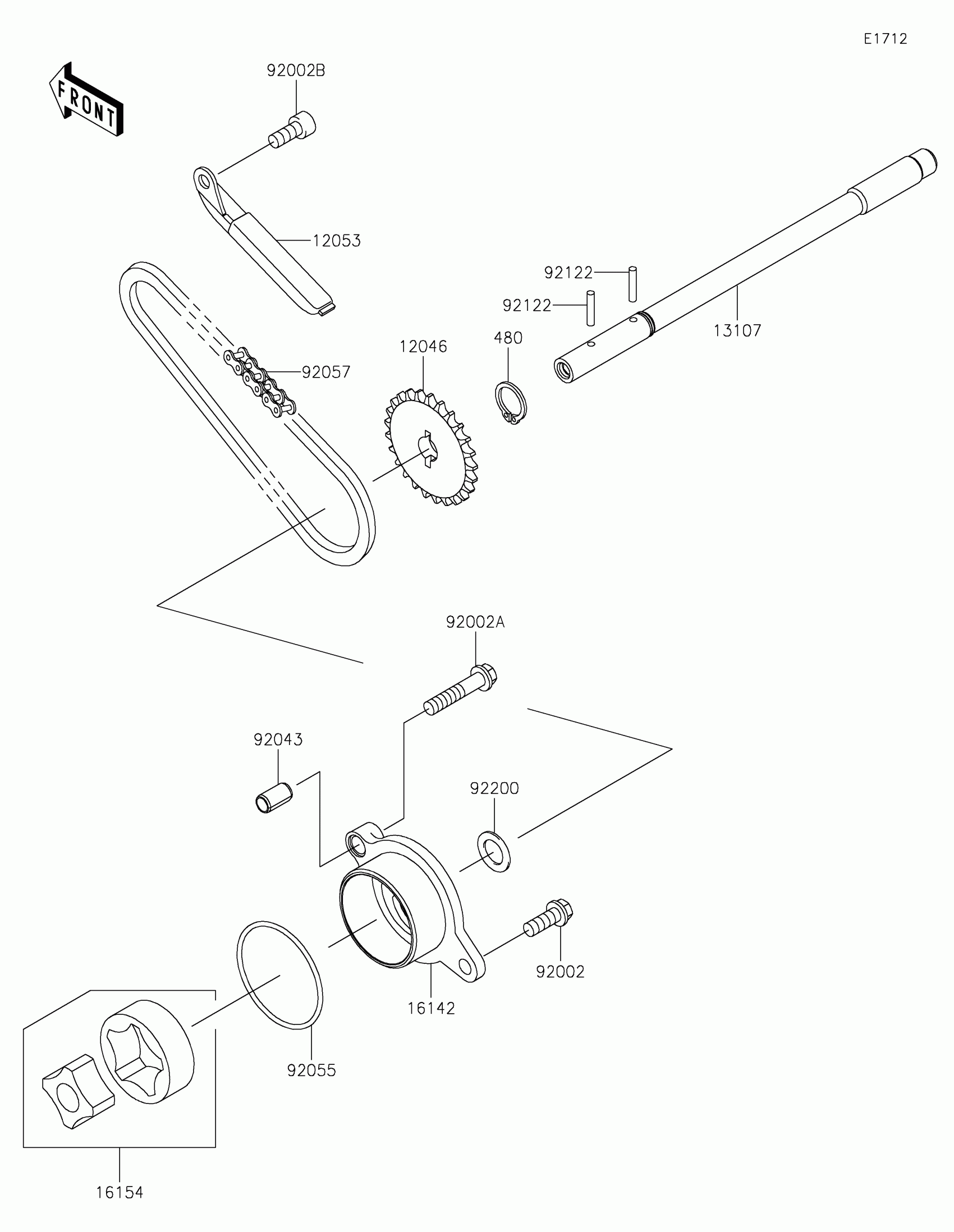

2009 Kawasaki Vulcan® 900 Custom Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

1

$0.99

In stock

12046

SPROCKET,24T

12046-0045

1

$37.40

In stock

12053

GUIDE-CHAIN

12053-0070

1

$40.61

In stock

13107

SHAFT

13107-0116

1

$47.69

In stock

16142

COVER-PUMP,OIL

16142-0028

1

$49.52

In stock

16154

ROTOR-PUMP,40.56X18

16154-1056

1

$69.01

In stock

92002

BOLT,6X16

92002-1439

1

$3.72

In stock

92002A

BOLT,6X30

92002-1534

1
Out of stock

92002B

BOLT,SOCKET,6X14

92002-1592

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92055

RING-O,44.7X2.4

92055-1279

1

$5.84

In stock

92057

CHAIN,DID 25H,54LE

92057-0113

1

$12.14

In stock

92122

ROLLER,3X15.8

92122-1126

1

$3.53

In stock

92200

WASHER

92200-1009

1
Out of stock
