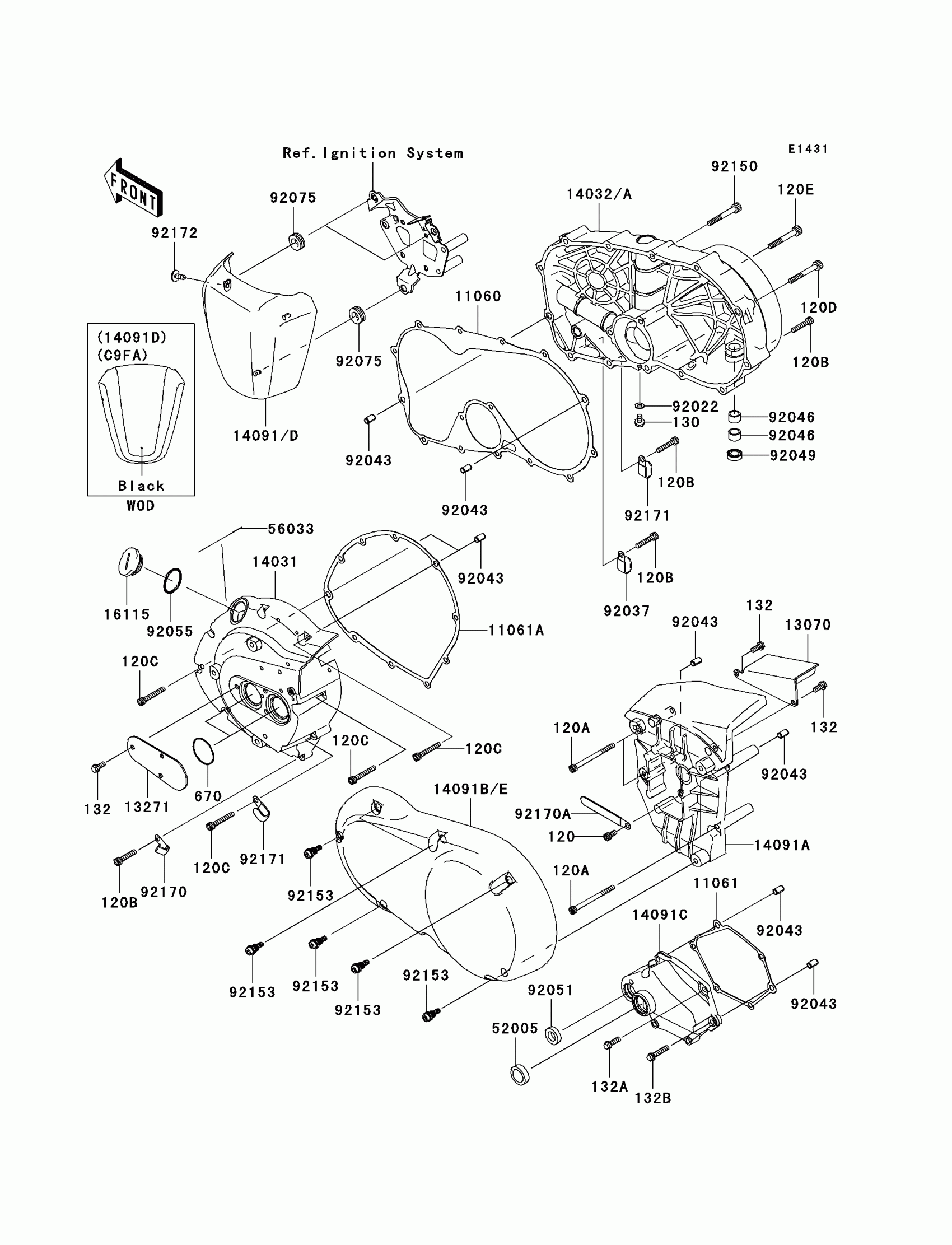

Find the part on the Engine Cover diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,CLUTCH COVER

11060-1926

1

$37.22

In stock

11061

1

$6.12

In stock

11061A

1

$26.42

In stock

13070

GUIDE,BELT

13070-0055

1

$40.04

In stock

13271

PLATE

13271-0700

1
Out of stock

14031

COVER-GENERATOR

14031-0056

1

$258.18

In stock

14032

COVER-CLUTCH

14032-0076

1

$515.56

In stock

14091

COVER

14091-0289

1

$95.13

In stock

14091A

COVER,PULLEY

14091-0510

1

$128.84

In stock

14091B

COVER,OUTER,LH

14091-0511

1

$175.66

In stock

14091C

1

$142.46

In stock

16115

CAP-OIL FILLER

16115-1063

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

56033

1

$7.31

In stock

92022

1

$3.13

In stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92075

DAMPER

92075-1629

1

$3.97

In stock

92150

BOLT,SOCKET,6X50

92150-1436

1

$5.37

In stock

92153

BOLT,SOCKET,6X22

92153-1331

1
Out of stock

92170

CLAMP,HARNESS

92170-1900

1

$5.46

In stock

92170A

CLAMP

92170-1925

1

$1.98

In stock

92171

CLAMP

92171-0739

1

$4.95

In stock

92172

SCREW,5X12

92172-0101

1

$4.46

In stock

120

BOLT-SOCKET,6X12

120CB0612

1

$2.05

In stock

120A

BOLT-SOCKET,6X75

120CB0675

1
Out of stock

120B

BOLT-SOCKET,6X30

120R0630

1

$3.49

In stock

120C

BOLT-SOCKET,6X40

120R0640

1

$4.42

In stock

120D

BOLT-SOCKET,6X50

120R0650

1

$4.68

In stock

120E

BOLT-SOCKET,6X65

120R0665

1

$8.54

In stock

130

1

$1.53

In stock

132

1

$2.05

In stock

132A

1

$3.18

In stock

132B

1

$3.28

In stock

670

O RING,34MM

670B3034

1

$1.66

In stock
