2009 Kawasaki Vulcan® 900 Custom Radiator Diagram

← All diagrams

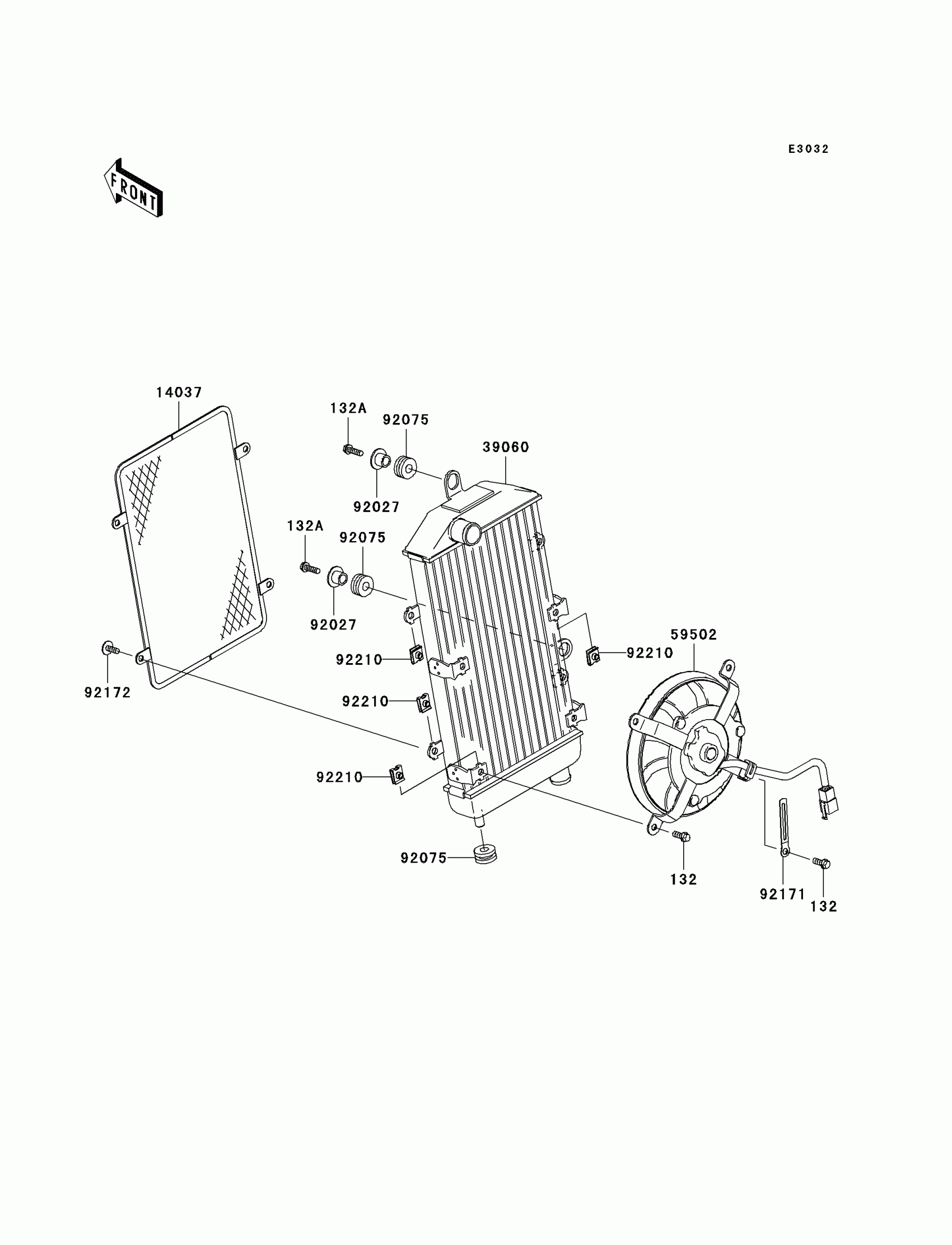

Find the part on the Radiator diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.05

In stock

132A

1

$3.18

In stock

14037

SCREEN

14037-0046

1

$65.83

In stock

39060

RADIATOR

39060-0029

1

$567.23

In stock

59502

FAN-ASSY

59502-0023

1

$484.69

In stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1

$4.93

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92171

CLAMP

92171-0791

1

$5.56

In stock

92172

SCREW,6X14

92172-0004

1

$2.29

In stock

92210

NUT

92210-1323

1
Out of stock
