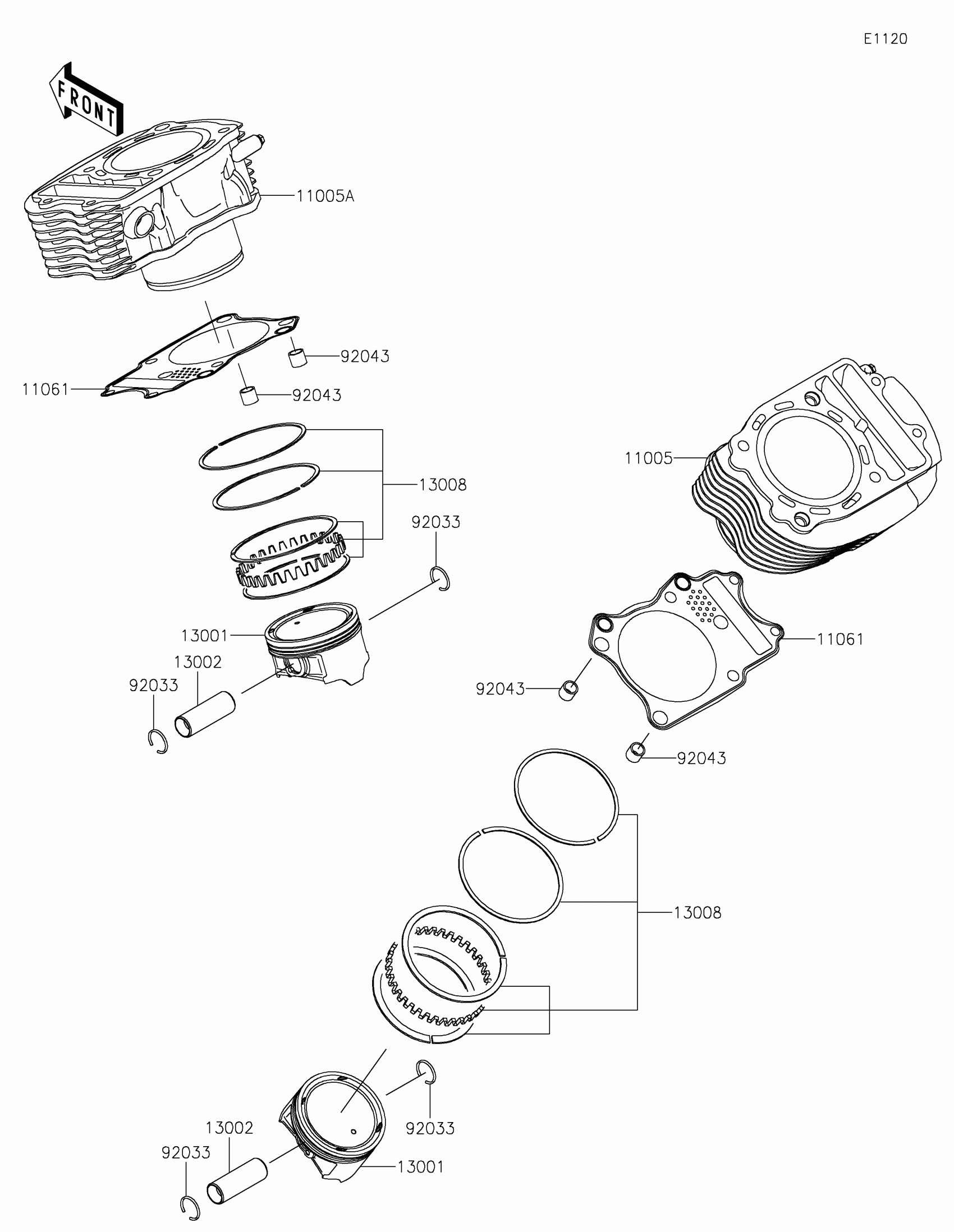

Find the part on the Cylinder/piston diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE,RR

11005-0062

1
Out of stock

11005A

CYLINDER-ENGINE,FR

11005-0085

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-0284

1
Out of stock

13001

PISTON-ENGINE

13001-0067

1
Out of stock

13002

PIN-PISTON

13002-0011

1
Out of stock

13008

RING-SET-PISTON

13008-0021

1
Out of stock

92033

RING-SNAP

92033-1188

1
Out of stock

92043

PIN,11X14X12.3

92043-1266

1
Out of stock
