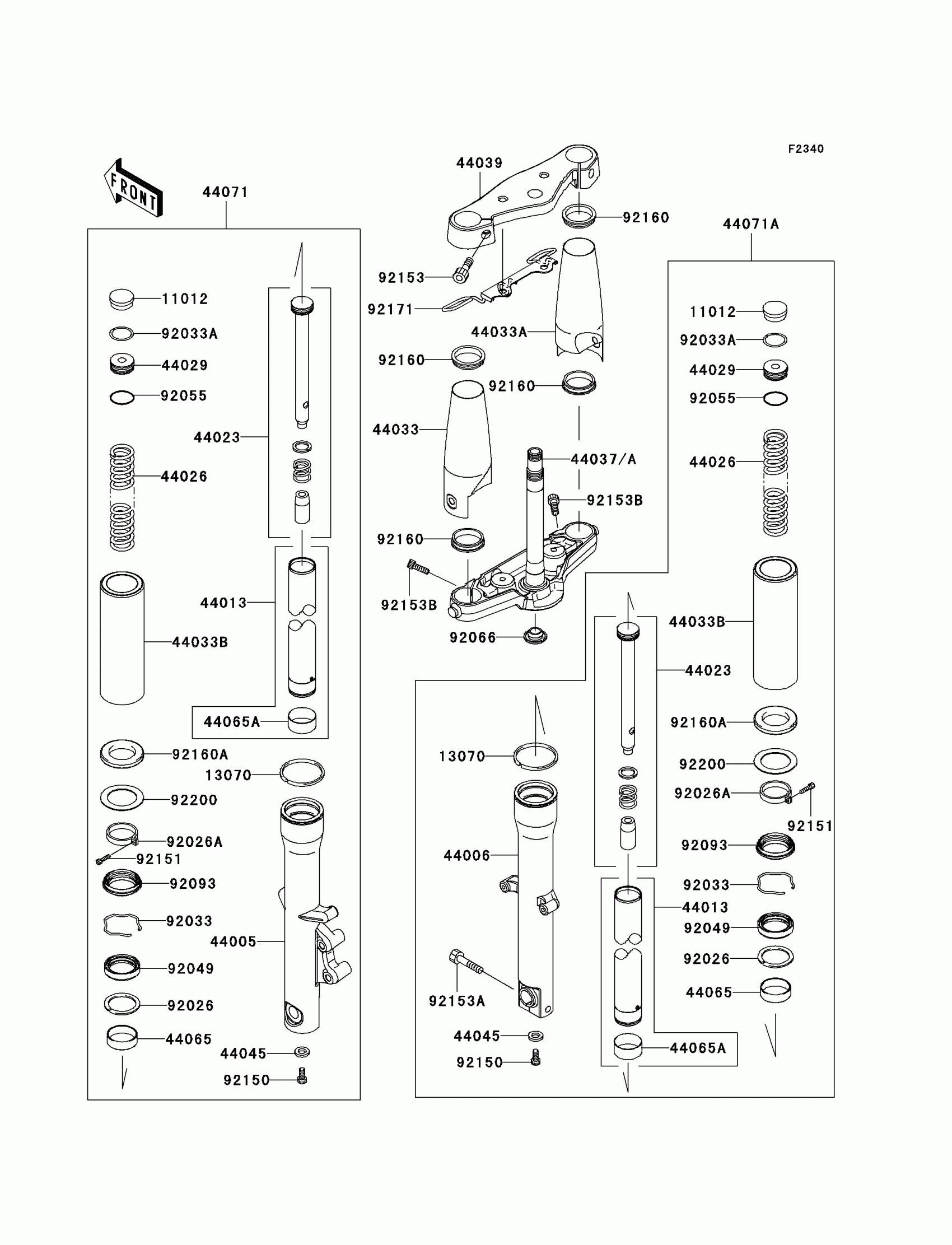

Kawasaki Vulcan 900 Classic Front Fork(-JKAVN2B1 7A015508) Diagram

#

Description
Price

11012

CAP,FORK TOP

11012-1618

$20.38

13070

GUIDE

13070-0056

$11.32

44005

PIPE-LEFT FORK OUTER

44005-0043

$398.80

44006

PIPE-RIGHT FORK OUTER

44006-0043

Unavailable

44013

PIPE-FORK INNER

44013-0049

Unavailable

44023

CYLINDER-SET-FORK

44023-0042

Unavailable

44026

SPRING-FRONT FORK

44026-0074

$78.83

44029

SEAT-FORK SPRING

44029-0008

$29.62

44033

COVER-FORK,LH

44033-0035

$119.02

44033A

COVER-FORK,RH

44033-0037

$119.02

44033B

COVER-FORK

44033-0039

$118.89

44037A

HOLDER-FORK UNDER

44037-0065

Unavailable

44039

HOLDER-FORK UPPER

44039-0039

$320.12

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-0019

$20.45

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1087

$26.61

44071

DAMPER-ASSY,FORK,LH

44071-0316

Unavailable

44071A

DAMPER-ASSY,FORK,RH

44071-0317

Unavailable

92026

SPACER,FORK

92026-0090

$19.42

92026A

SPACER

92026-1515

$14.97

92033

RING-SNAP

92033-1222

$4.88

92033A

RING-SNAP,SPRING SEAT

92033-1223

$5.10

92049

SEAL-OIL

92049-0058

$20.44

92055

RING-O,SPRING SEAT

92055-1363

$5.61

92066

PLUG

92066-0078

$11.66

92093

SEAL,DUST

92093-0035

$20.73

92150

BOLT,SOCKET,8X18

92150-1432

$7.54

92151

BOLT,SOCKET,4X16

92151-1356

$2.03

92153

BOLT,SOCKET,8X30

92153-0500

$10.44

92153A

BOLT

92153-0533

Unavailable

92153B

BOLT,SOCKET,10X25

92153-1376

$4.14

92160

DAMPER

92160-1892

$3.15

92160A

DAMPER

92160-1927

$7.76

92171

CLAMP

92171-0580

$53.36

92200

WASHER

92200-1417

$7.46
