2010 Kawasaki Vulcan® 900 Classic Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2010 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

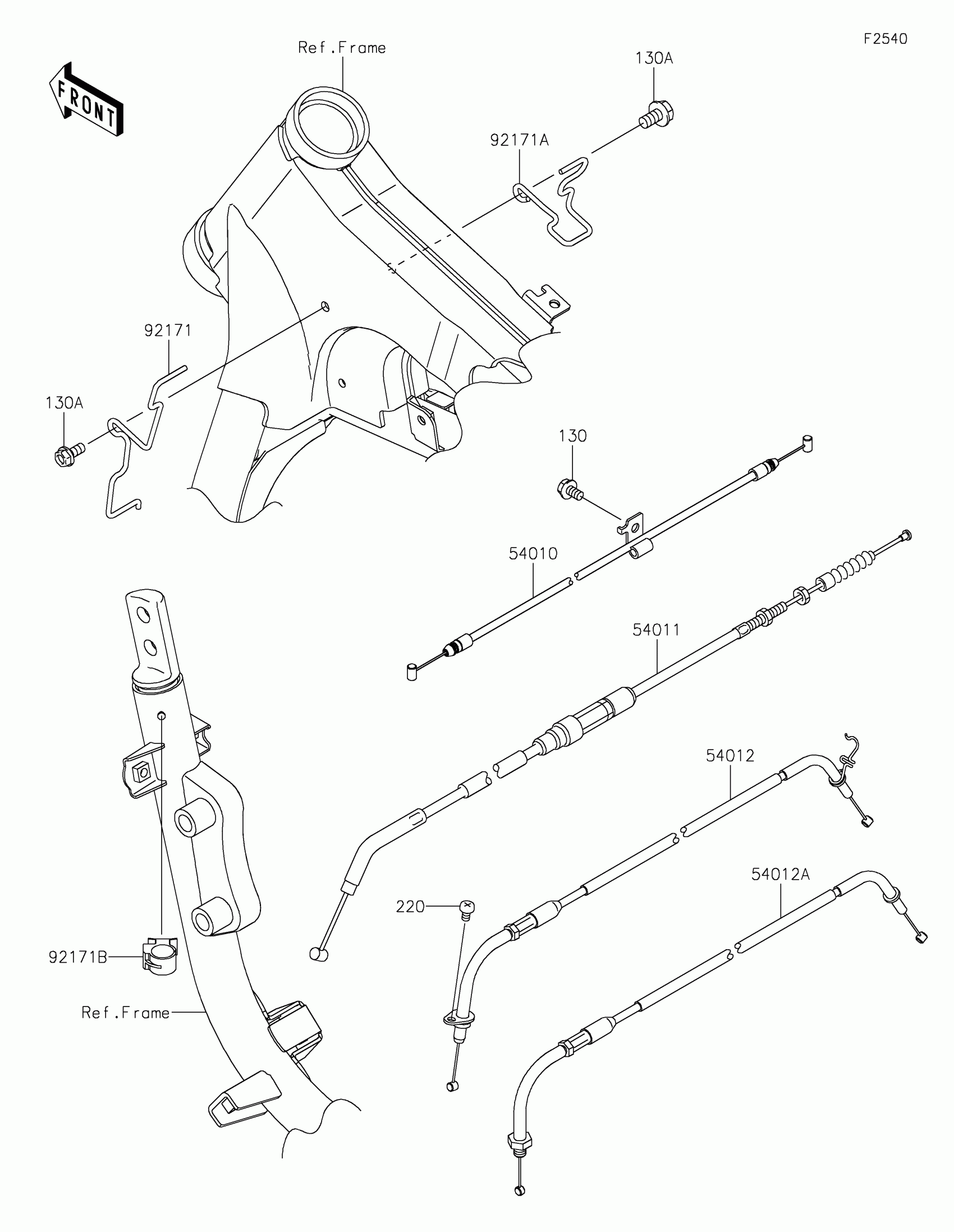

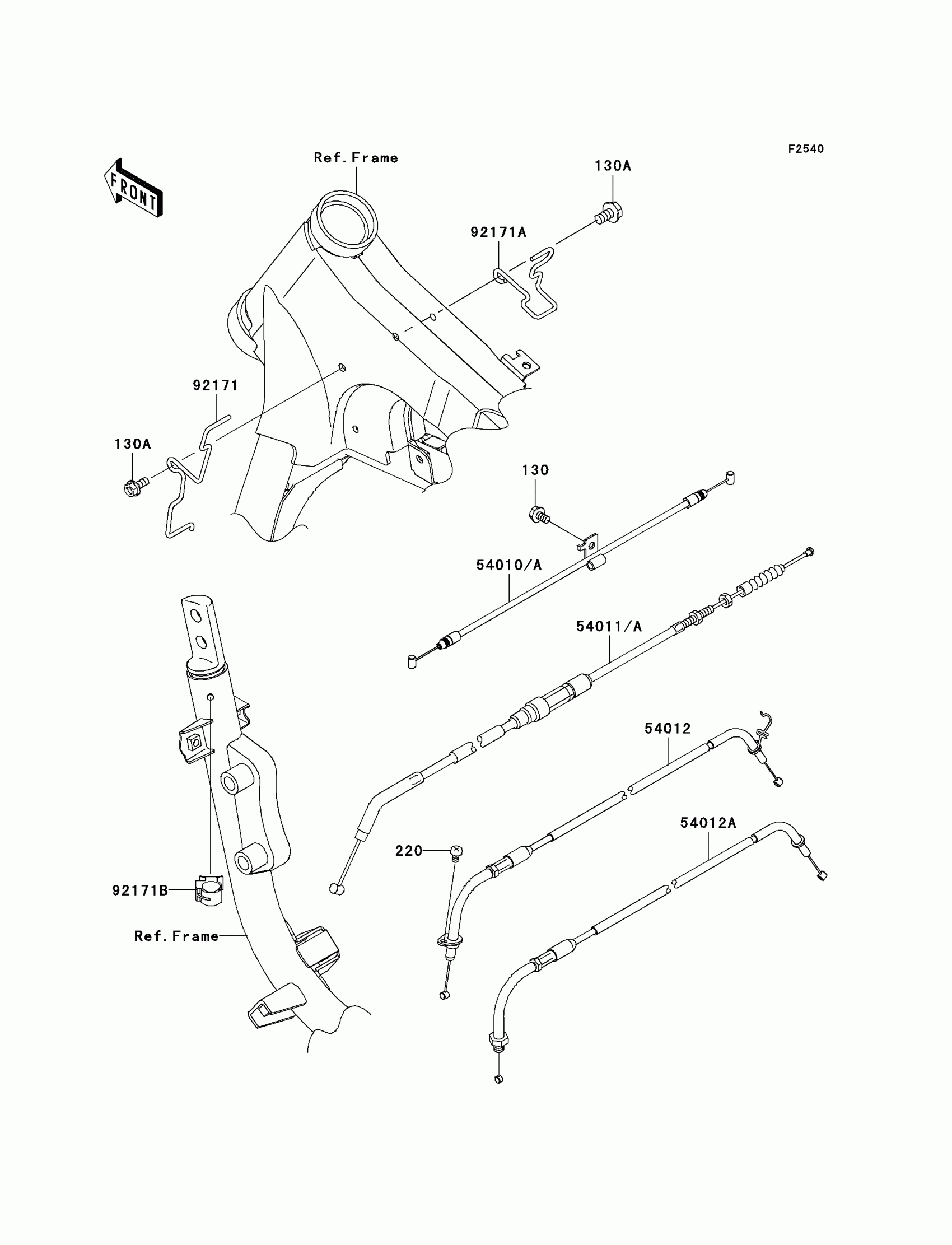

2010 Kawasaki Vulcan® 900 Classic Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

130A

BOLT-FLANGED,6X14

130BB0614

1

$1.84

In stock

220

SCREW-PAN-CROS,5X8

220AB0508

1

$0.44

In stock

54010A

CABLE,SEAT LOCK

54010-0065

1

$14.03

In stock

54011A

CABLE-CLUTCH

54011-0070

1

$27.36

In stock

54012

1

$32.66

In stock

54012A

1

$36.37

In stock

92171

CLAMP,FR,LH

92171-0597

1

$14.14

In stock

92171A

CLAMP,FR,RH

92171-0605

1

$14.14

In stock

92171B

CLAMP,DIA=15

92171-1424

1

$3.33

In stock
