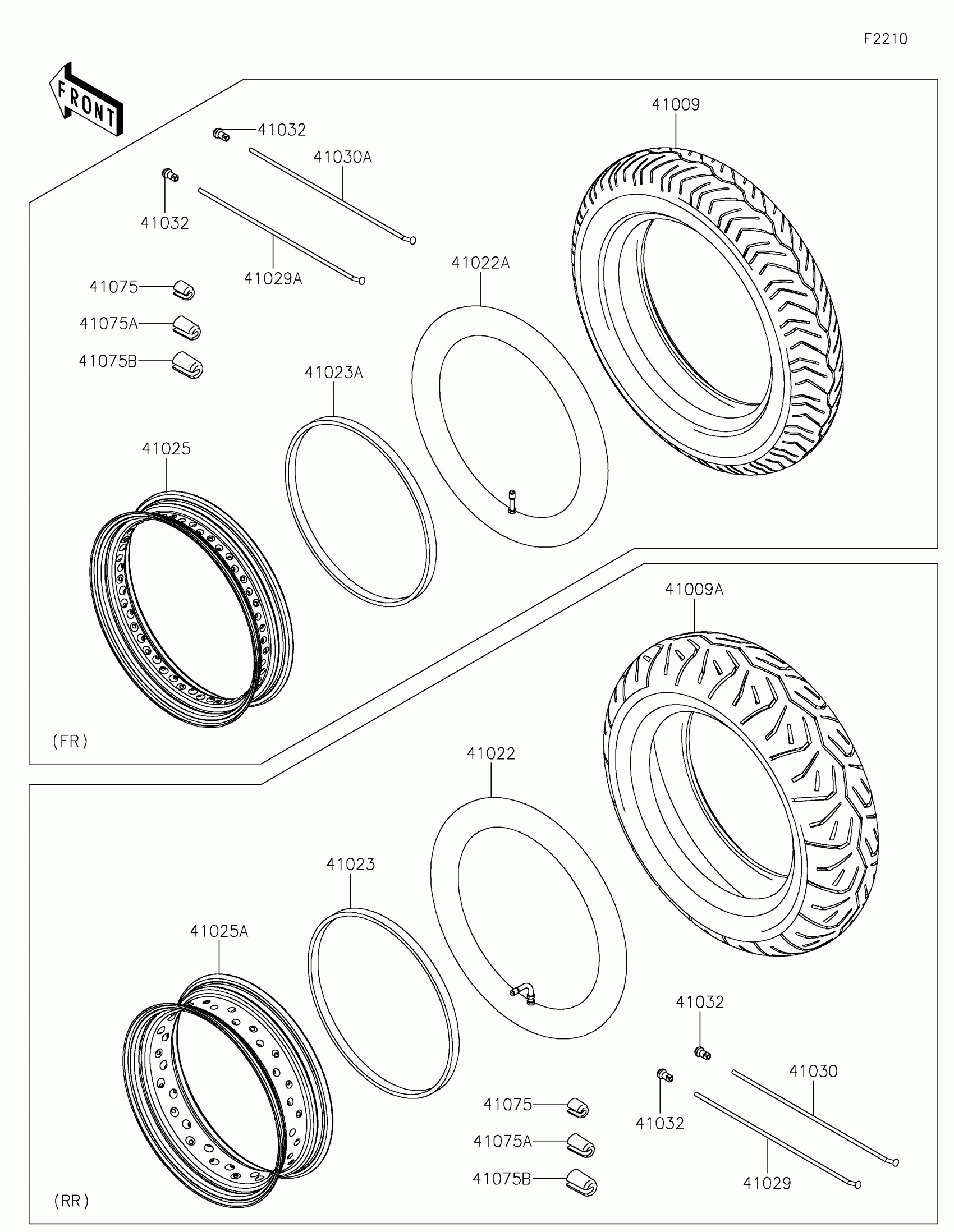

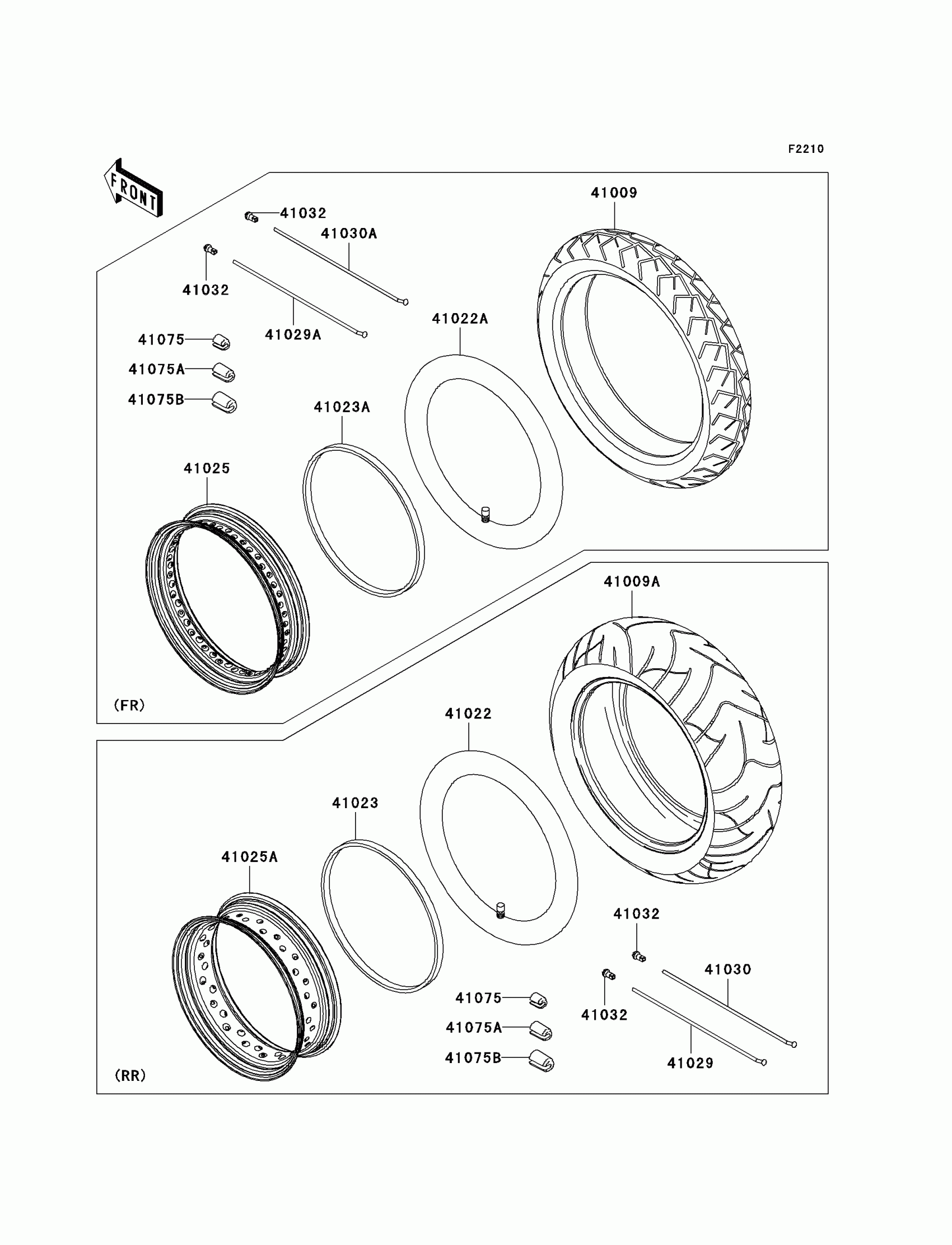

2010 Kawasaki Vulcan® 900 Classic Tires Diagram

← All diagrams

Find the part on the Tires diagram for your 2010 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 900 Classic Tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

TIRE,FR,130/90-16 67H,D404F(D)

41009-0103

1
Out of stock

41009A

TIRE,RR,180/70-15 76H,D404(D)

41009-0104

1
Out of stock

41022

1

$52.54

In stock

41022A

1

$46.47

In stock

41023

1

$14.49

In stock

41023A

1

$13.19

In stock

41025

RIM,FR,3.00X16

41025-0046

1

$219.56

In stock

41025A

RIM,RR,4.50X15

41025-0062

1

$242.56

In stock

41029

1

$4.71

In stock

41029A

1

$4.71

In stock

41030

1

$4.71

In stock

41030A

1

$4.71

In stock

41032

NIPPLE-SPOKE

41032-0005

1

$1.92

In stock

41075

BALANCER-WHEEL,10G

41075-0011

—

$10.02

In stock

41075A

BALANCER-WHEEL,20G

41075-0012

—

$10.02

In stock

41075B

BALANCER-WHEEL,30G

41075-0013

—

$10.02

In stock
