Description

Price

112

BOLT-UPSET,10X65

112BA1065

$4.53

220

SCREW-PAN-CROS,5X25

220R0525

$4.23

13091

HOLDER,CLUTCH LEVER

13091-1632

$44.47

27010

SWITCH,CLUTCH

27010-1268

$25.31

46003A

HANDLE

46003-0155

$210.62

46012

HOLDER-HANDLE,LWR

46012-1272

Unavailable

46012A

HOLDER-HANDLE,UPP

46012-1273

$52.72

46019

GRIP-ASSY,THROTTLE

46019-1123

$72.61

46055

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

46056

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

46075

GRIP,LH

46075-1212

$26.07

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0010

Unavailable

46091

HOUSING-ASSY-CONTROL,LH

46091-0070

$341.05

46091A

HOUSING-ASSY-CONTROL,RH

46091-0071

$257.77

46092

LEVER-GRIP,CLUCTH

46092-1204

$23.22

56001

MIRROR-ASSY,LH

56001-0063

$70.13

56001A

MIRROR-ASSY,RH

56001-0064

$70.13

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92037A

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92066

PLUG

92066-1285

$5.93

92143

COLLAR

92143-1351

$16.78

92150

BOLT,SOCKET,10X23

92150-1942

$5.61

92153

BOLT,LEVER SET

92153-0716

$5.08

92153A

BOLT,6X20

92153-0721

$2.78

92172

SCREW,3X20

92172-0164

$2.47

92210

NUT,LOCK,6MM

92210-0006

$1.76

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

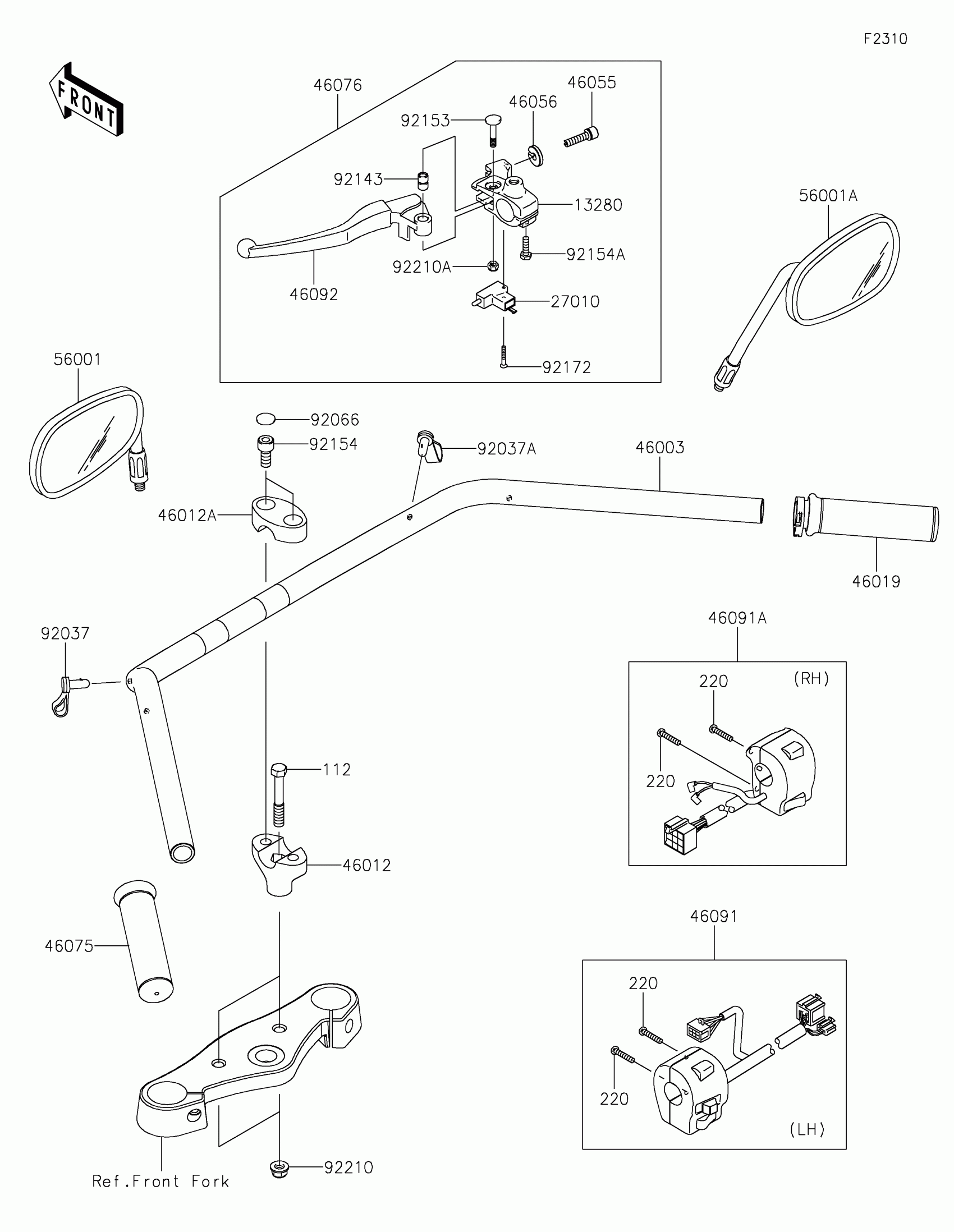

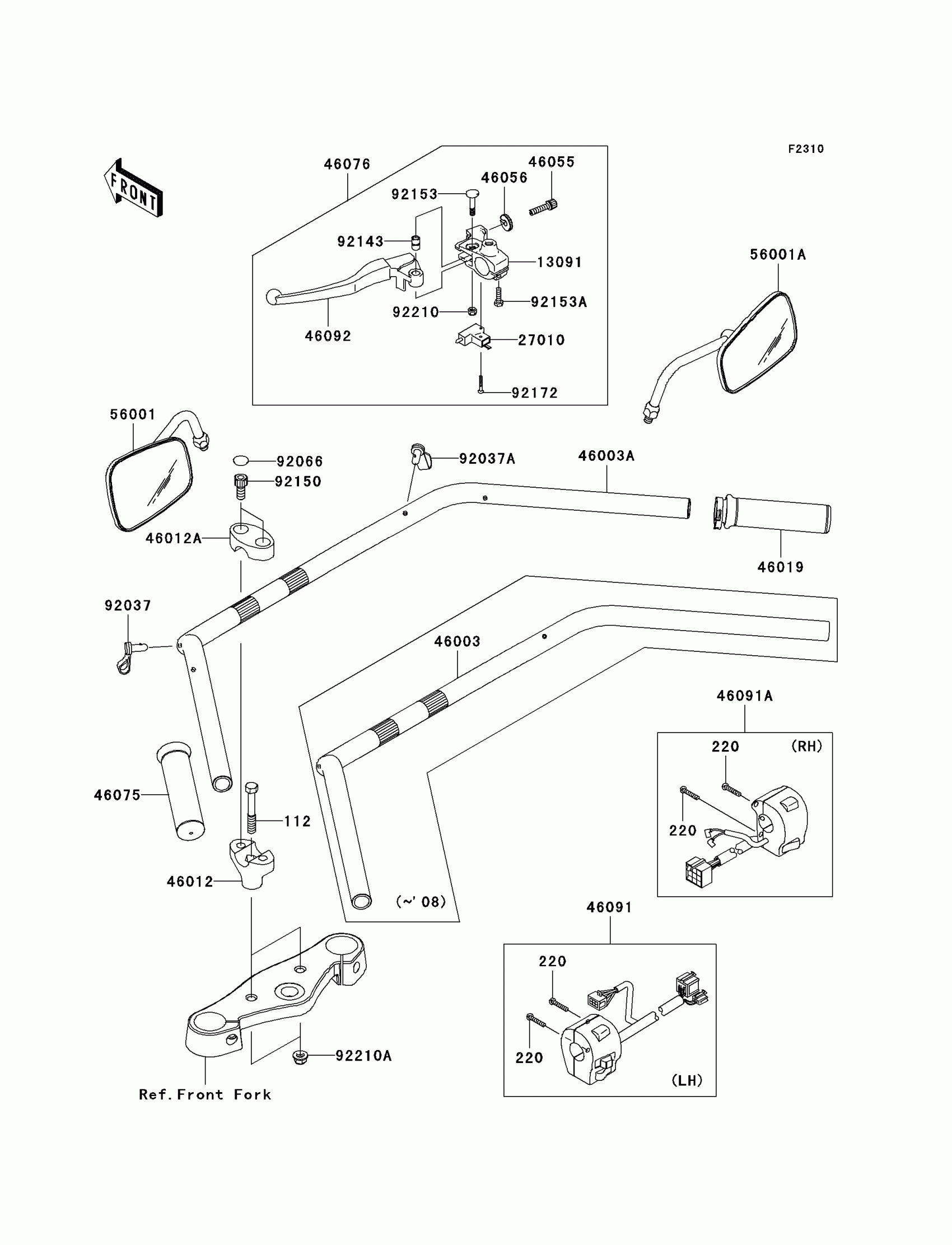

Kawasaki Vulcan® 900 Classic Handlebar Diagram
