2010 Kawasaki Vulcan® 900 Classic Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2010 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

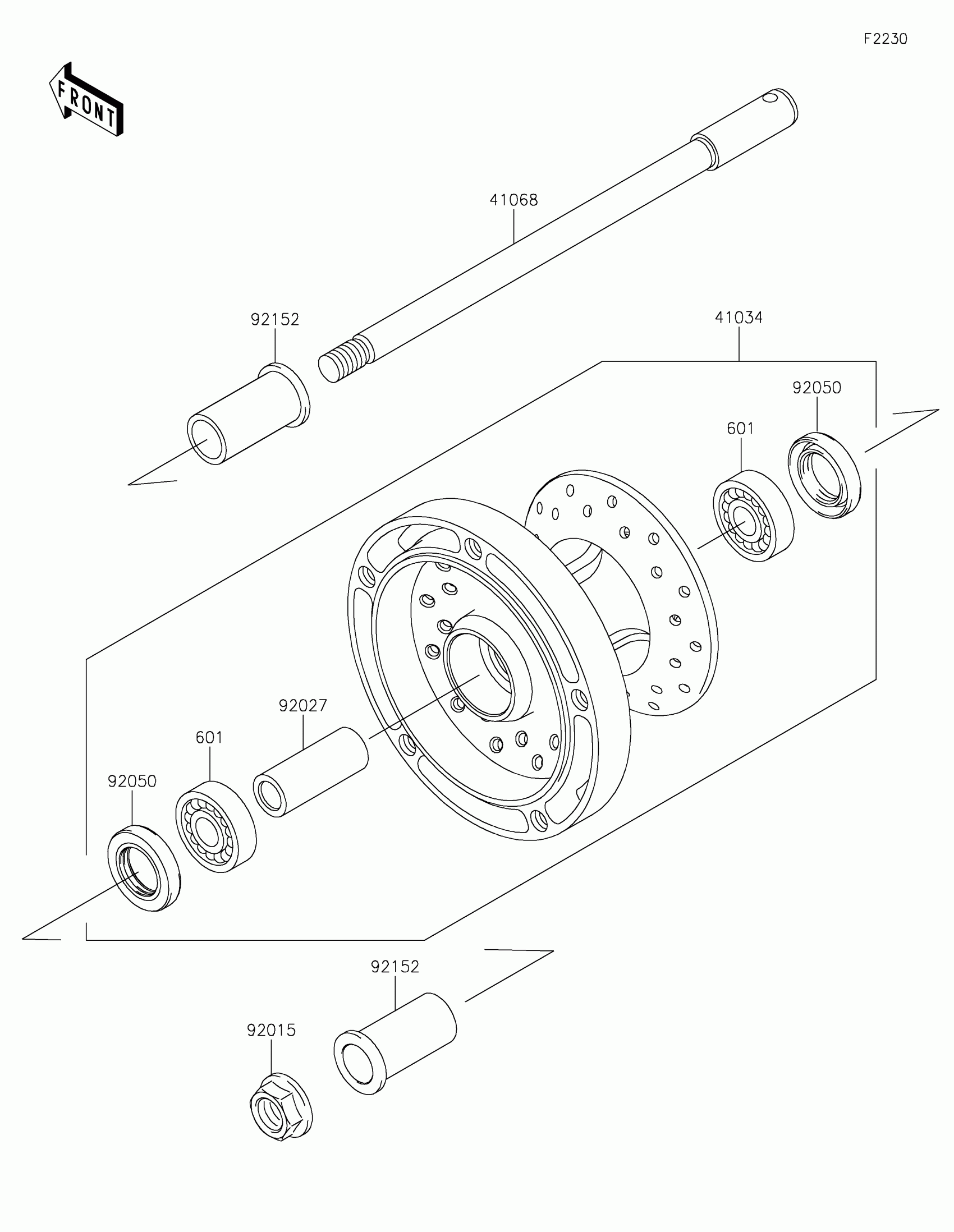

2010 Kawasaki Vulcan® 900 Classic Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

1

$33.92

In stock

41034

1

$305.29

In stock

41068

AXLE,FR

41068-0058

1

$77.00

In stock

92015

NUT,FLANGED,18MM

92015-1993

1

$7.55

In stock

92027

COLLAR,20.2X28X70

92027-1752

1

$17.39

In stock

92050

SEAL-OIL,26X42X8

92050-060

1
Out of stock

92152

COLLAR,FR AXLE,L=53

92152-0349

1

$64.91

In stock
