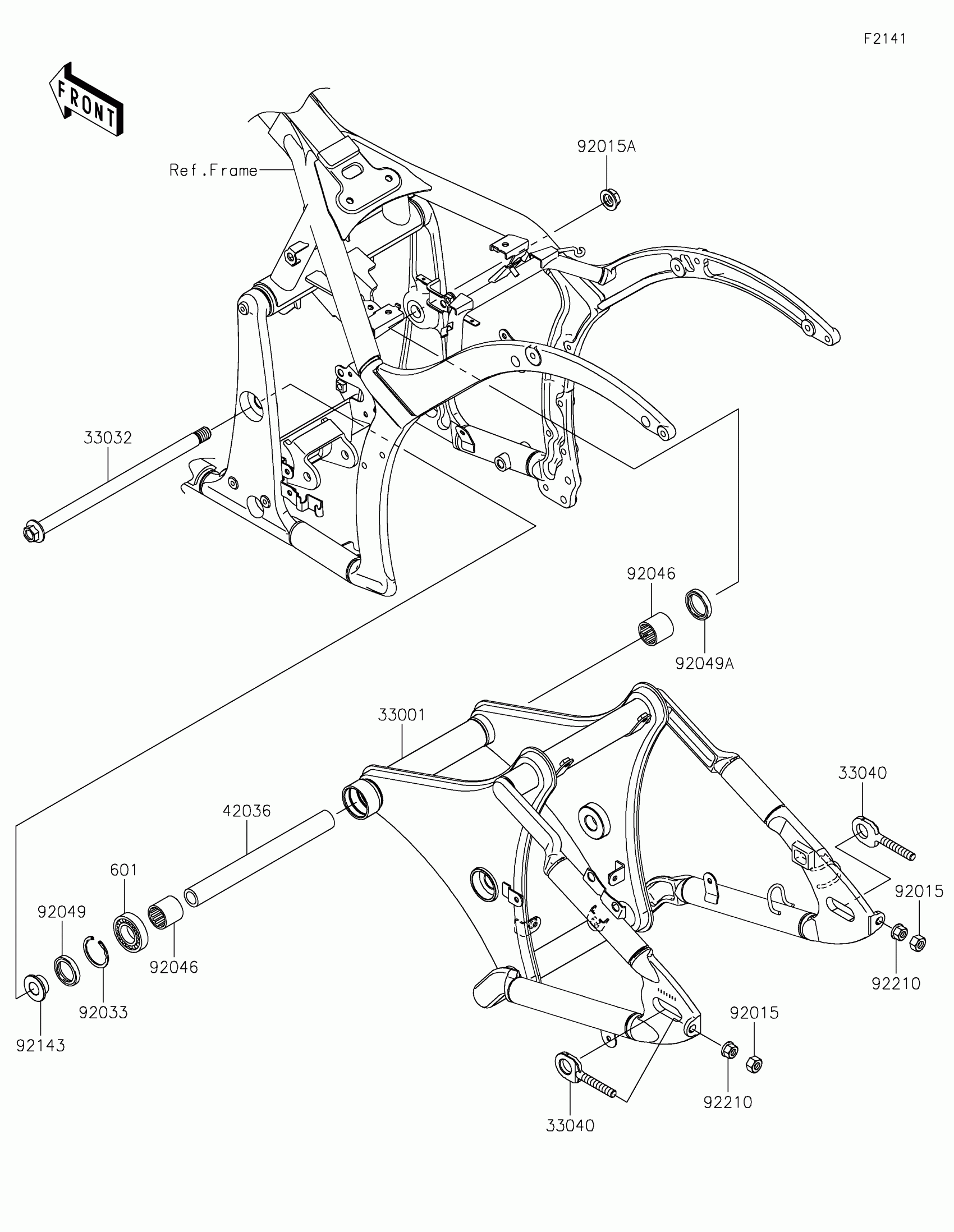

Kawasaki Vulcan® 900 Classic Swingarm Diagram

Description

Price

601

BEARING-BALL,#6203

601A6203

$10.67

33001B

ARM-COMP-SWING,BLACK

33001-0100-18R

Unavailable

33032

SHAFT-SWING ARM

33032-0018

$62.32

33040

ADJUSTER-CHAIN

33040-0005

$41.80

42036

SLEEVE,SWING ARM,L=246

42036-0031

$51.39

92015

NUT,LOCK,10MM

92015-1494

$5.42

92015B

NUT,FLANGED,16MM

92015-1946

$12.17

92033

RING-SNAP,40MM

92033-1040

$4.45

92046

BEARING-NEEDLE,BHTM2530-1

92046-1035

$21.29

92049

SEAL-OIL

92049-1047

$12.40

92049A

SEAL-OIL,MH25334

92049-1060

$8.63

92143

COLLAR,RR AXLE,L=14

92143-1188

$17.66

92210

NUT,FLANGED,10MM

92210-0349

$1.81
