1995 Kawasaki Vulcan 88 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

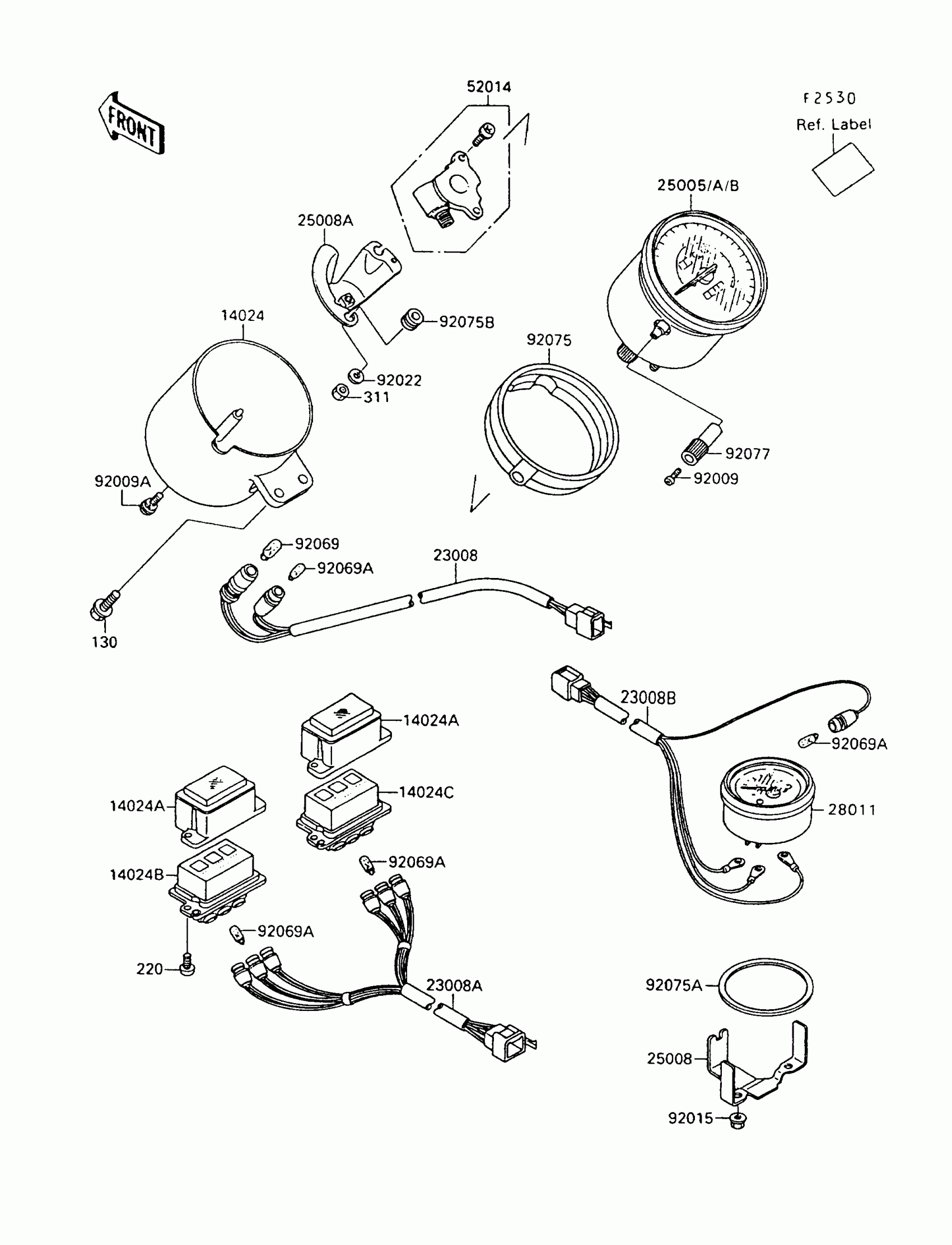

1995 Kawasaki Vulcan 88 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130B0616

1
Out of stock

220

SCREW-PAN-CROS

220B0414

1
Out of stock

311

NUT-HEX

311B0400

1
Out of stock

14024

COVER,METER,LWR

14024-1504

1
Out of stock

14024A

COVER,PILOT BOX,UPP

14024-1505

1
Out of stock

14024B

COVER,PILOT BOX,LH,LWR

14024-1506

1
Out of stock

14024C

COVER,PILOT BOX,RH,LWR

14024-1507

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1340

1
Out of stock

23008A

1

$85.48

In stock

23008B

SOCKET-ASSY,FUEL METER

23008-1342

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-1368

1
Out of stock

25005B

SPEEDOMETER,MPH

25005-1385

1

$476.90

In stock

25008

BRACKET-METER

25008-1136

1
Out of stock

25008A

BRACKET-METER

25008-1139

1
Out of stock

28011

METER,FUEL

28011-1102

1
Out of stock

52014

ELBOW

52014-1081

1

$80.32

In stock

92009

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009A

SCREW,5X10

92009-1478

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,4.3X12.5X1

92022-1888

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,14V 3W,T6.5

92069-1068

1

$3.97

In stock

92075

DAMPER,SHOCK,METER

92075-1953

1

$25.71

In stock

92075A

DAMPER,SHOCK,FUEL METER

92075-1954

1
Out of stock

92075B

DAMPER,METER FITTING

92075-1956

1
Out of stock

92077

KNOB,METER

92077-1077

1
Out of stock
