1995 Kawasaki Vulcan 88 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

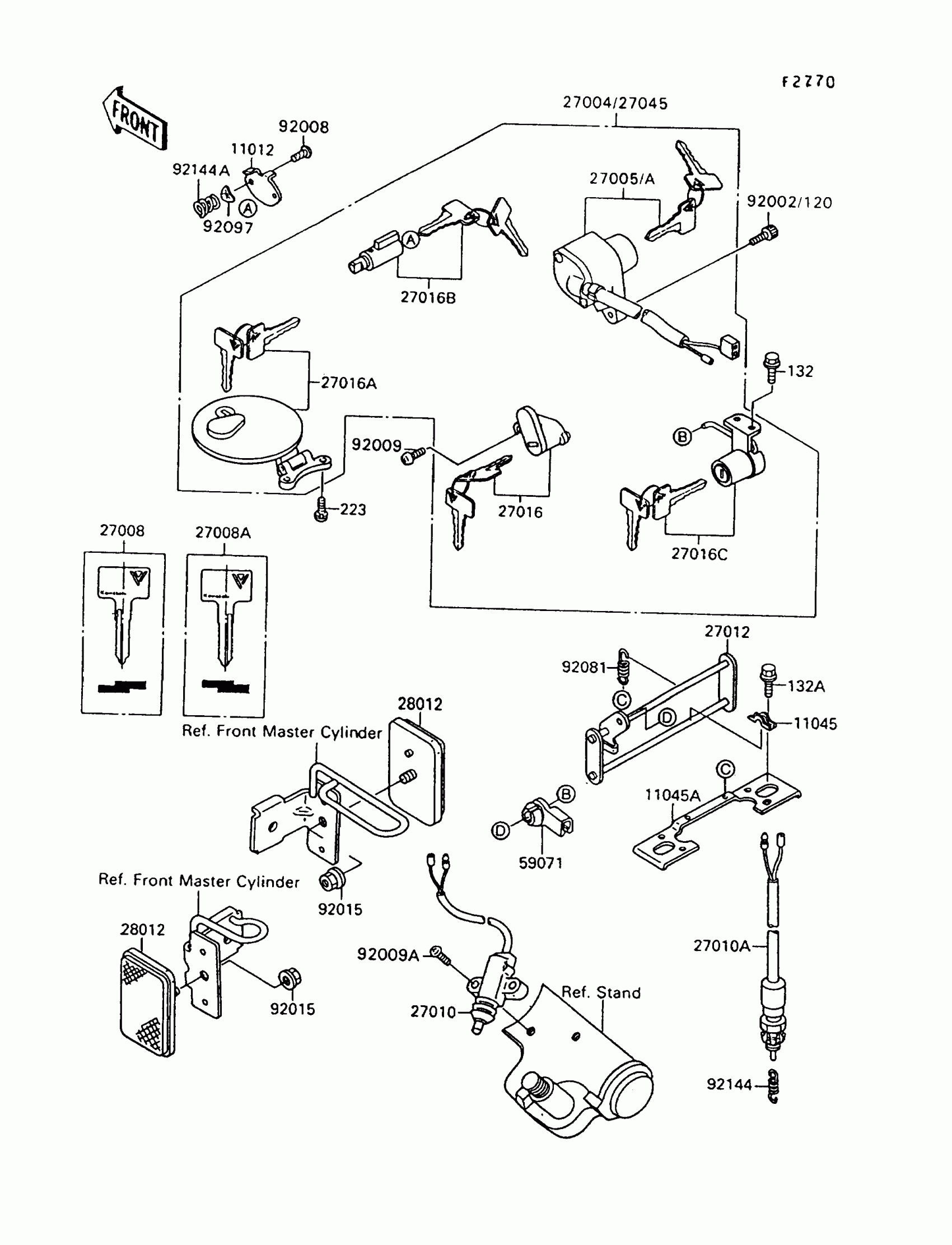

1995 Kawasaki Vulcan 88 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X8

132G0608

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

223

SCREW-PAN-WS-CROS

223B0410

1
Out of stock

11012

CAP,STEERING LOCK

11012-1586

1
Out of stock

11045

BRACKET,SEAT HOOK

11045-1700

1

$5.92

In stock

11045A

BRACKET,SEAT HOOK

11045-1701

1
Out of stock

27005A

1

$175.70

In stock

27008

KEY-LOCK,BLANK,#A

27008-1138

1

$19.58

In stock

27008A

KEY-LOCK,BLANK,#B

27008-1139

1

$19.34

In stock

27010

SWITCH,SIDE STAND

27010-1223

1

$73.52

In stock

27010A

SWITCH,REAR BRAKE

27010-1238

1

$35.81

In stock

27012

HOOK,SEAT

27012-1371

1
Out of stock

27016

LOCK-ASSY,HELMET

27016-5129

1

$69.10

In stock

27016A

LOCK-ASSY,FUEL TANK COVER

27016-5130

1
Out of stock

27016B

LOCK-ASSY,STEERING

27016-5131

1

$87.55

In stock

27016C

LOCK-ASSY,SEAT

27016-5132

1
Out of stock

27045

SWITCH-ASSY

27045-5001

1

$503.80

In stock

28012

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

59071

JOINT

59071-1103

1

$6.90

In stock

92002

BOLT,SOCKET,5X12

92002-1173

1
Out of stock

92008

SCREW,3.51MM

92008-007

1
Out of stock

92009

SCREW,5X12

92009-1296

1
Out of stock

92009A

SCREW,5X20

92009-1459

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1656

1

$2.59

In stock

92081

SPRING,HOOK RETURN

92081-1466

1

$6.75

In stock

92097

WASHER,WAVE

92097-003

1

$3.57

In stock

92144

1

$4.34

In stock

92144A

1

$3.98

In stock
