1995 Kawasaki Vulcan 88 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

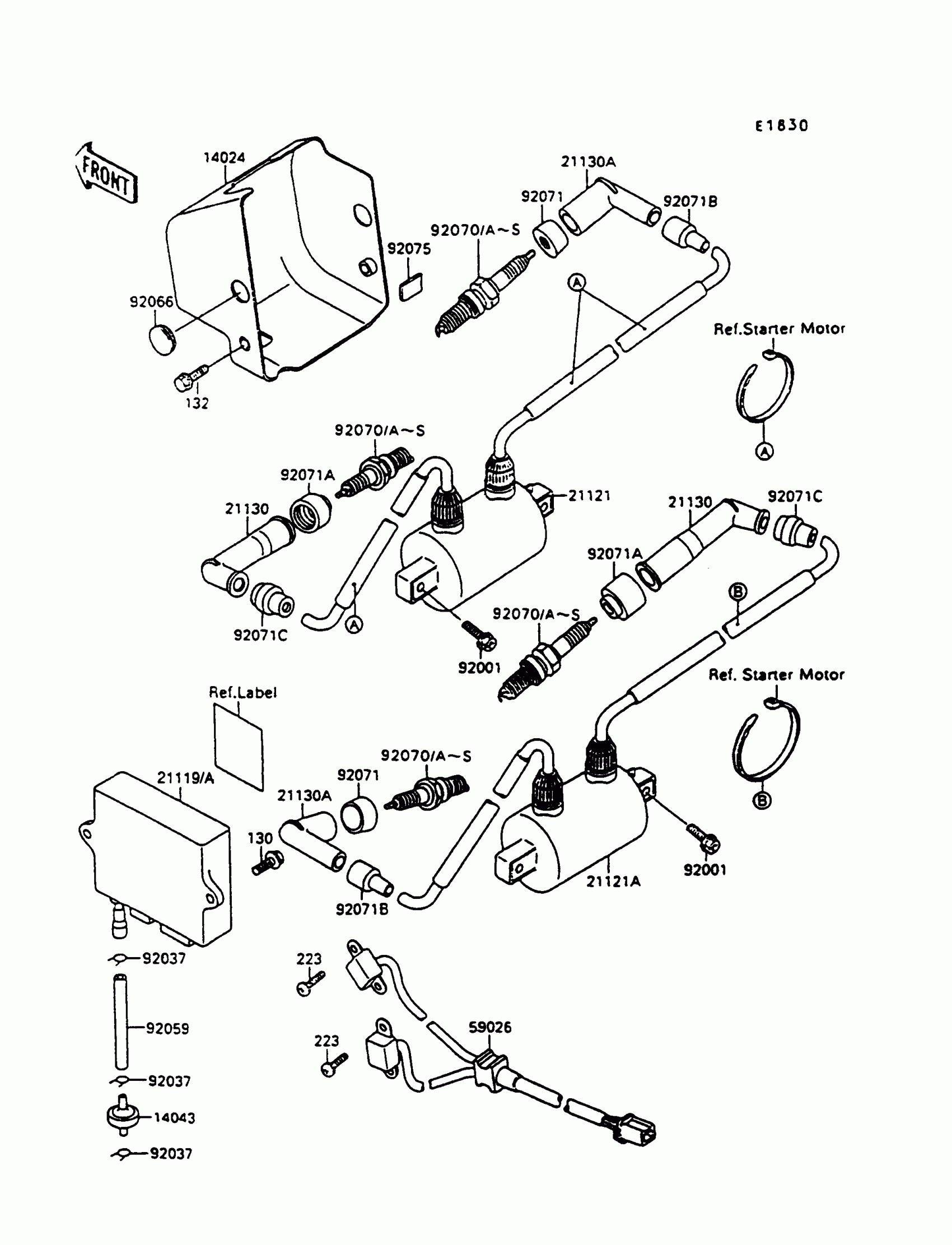

1995 Kawasaki Vulcan 88 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,IGNITION COIL

14024-1527

1
Out of stock

14043

FILTER

14043-1060

1

$47.82

In stock

21119A

IGNITER

21119-1417

1
Out of stock

21121

COIL-IGNITION,FR

21121-1154

1

$170.68

In stock

21121A

COIL-IGNITION,RR

21121-1155

1

$170.68

In stock

21130

CAP-SPARK PLUG

21130-1002

1

$52.70

In stock

21130A

CAP-SPARK PLUG

21130-1003

1

$26.75

In stock

59026

COIL-PULSING

59026-1085

1

$185.62

In stock

92001

BOLT,6X20

92001-1091

1

$3.12

In stock

92037

CLAMP,TUBE

92037-1482

1
Out of stock

92059

TUBE,3X7X140

92059-1687

1

$4.53

In stock

92066

PLUG

92066-1286

1
Out of stock

92070

—

$2.92

In stock

92070B

—

$2.92

In stock

92070D

Not Available As Spare Part - Friction Washer

—
Out of stock

92070F

Not Available As Spare Part - Friction Washer

—
Out of stock

92070H

Not Available As Spare Part - Friction Washer

1
Out of stock

130

BOLT,FLANGED,6X14

130G0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132J0616

1
Out of stock

223

SCREW-PAN-WS-CROS,5X16

223B0516

1
Out of stock

92070I

Not Available As Spare Part - Friction Washer

1
Out of stock

92070J

1

$2.74

In stock

92070K

1

$2.74

In stock

92070L

—

$3.66

In stock

92070N

Not Available As Spare Part - Friction Washer

—
Out of stock

92070P

—

$2.92

In stock

92070R

Not Available As Spare Part - Friction Washer

—
Out of stock

92071

1

$3.81

In stock

92071A

GROMMET,PLUG CAP

92071-1124

1

$9.14

In stock

92071B

GROMMET,HIGH TENSION

92071-1154

1
Out of stock

92071C

GROMMET,HIGH TENSION

92071-1155

1
Out of stock

92075

DAMPER

92075-1982

1

$3.92

In stock
