1991 Kawasaki Vulcan 88 Generator Diagram

← All diagrams

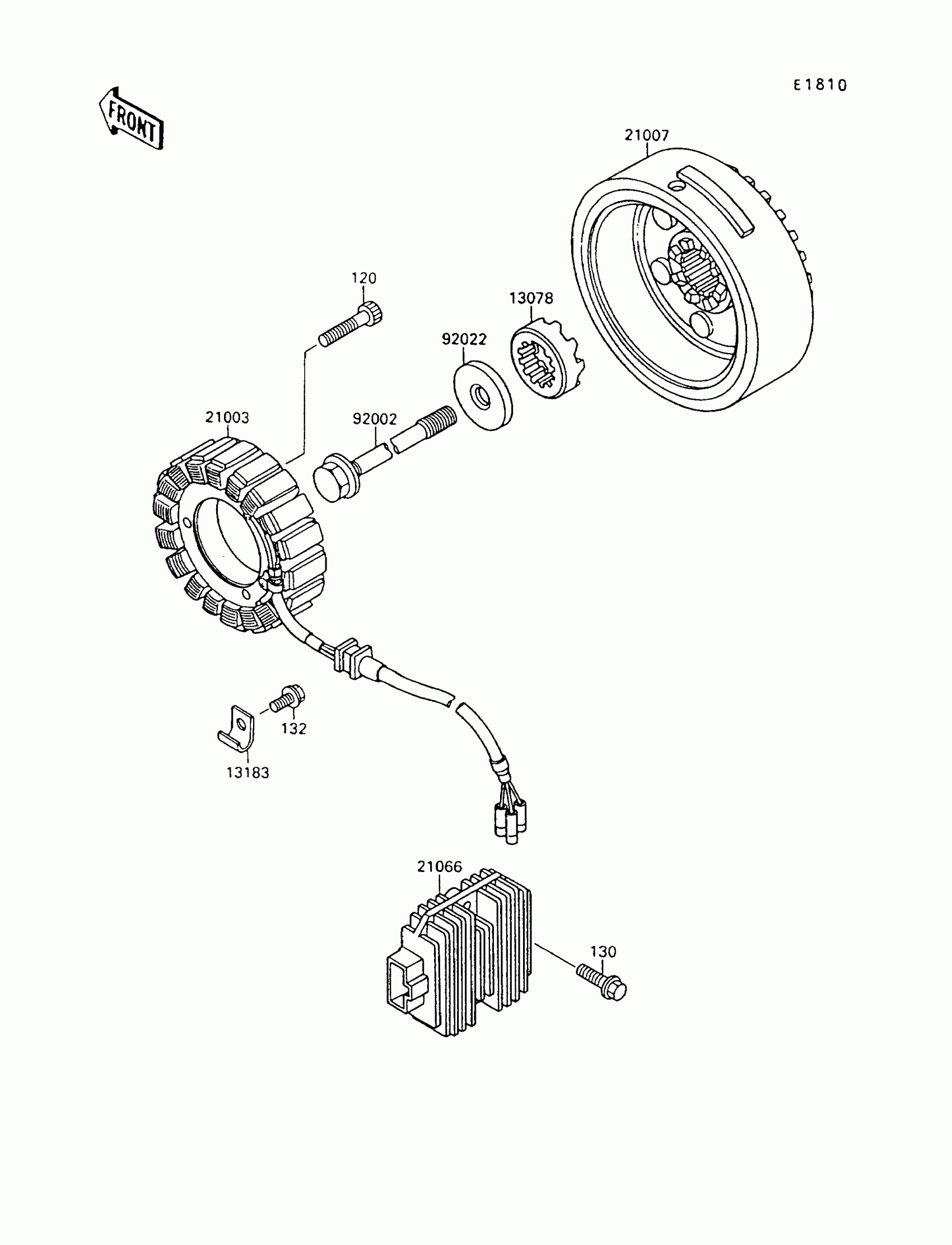

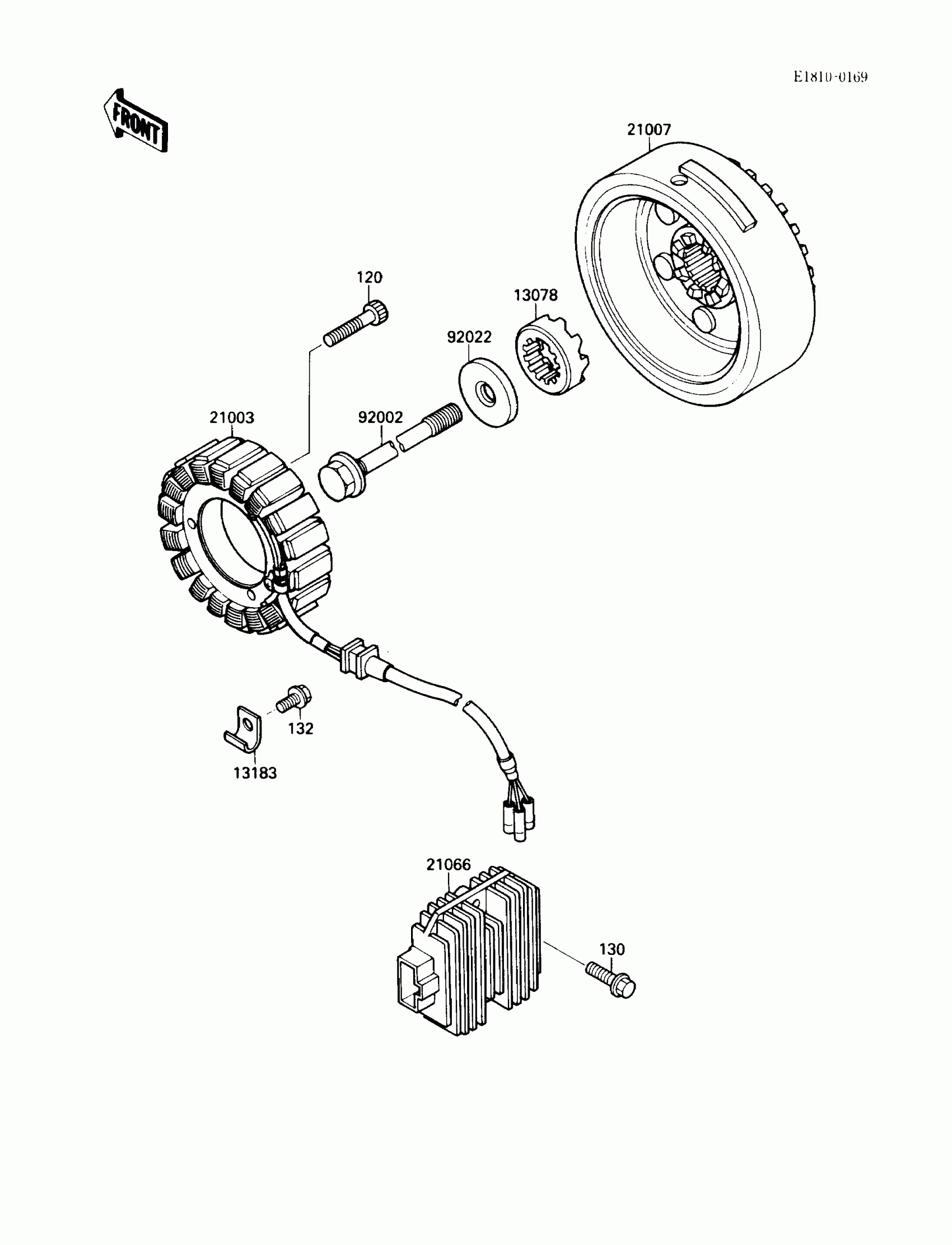

Find the part on the Generator diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Vulcan 88 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13078

RATCHET

13078-1056

1

$67.67

In stock

13183

PLATE

13183-1072

1
Out of stock

21003

STATOR

21003-1164

1

$639.48

In stock

21007

ROTOR

21007-1154

1

$533.88

In stock

21066

REGULATOR-VOLTAGE

21066-1055

1

$245.39

In stock

92002

BOLT,GENERATOR,12X112

92002-1901

1
Out of stock

92022

WASHER,12X40X6

92022-1904

1
Out of stock

120

BOLT-SOCKET,6X35

120P0635

1
Out of stock

130

BOLT,FLANGED,6X20

130B0620

1
Out of stock

132

1

$3.72

In stock
