1991 Kawasaki Vulcan 88 Starter Motor Diagram

← All diagrams

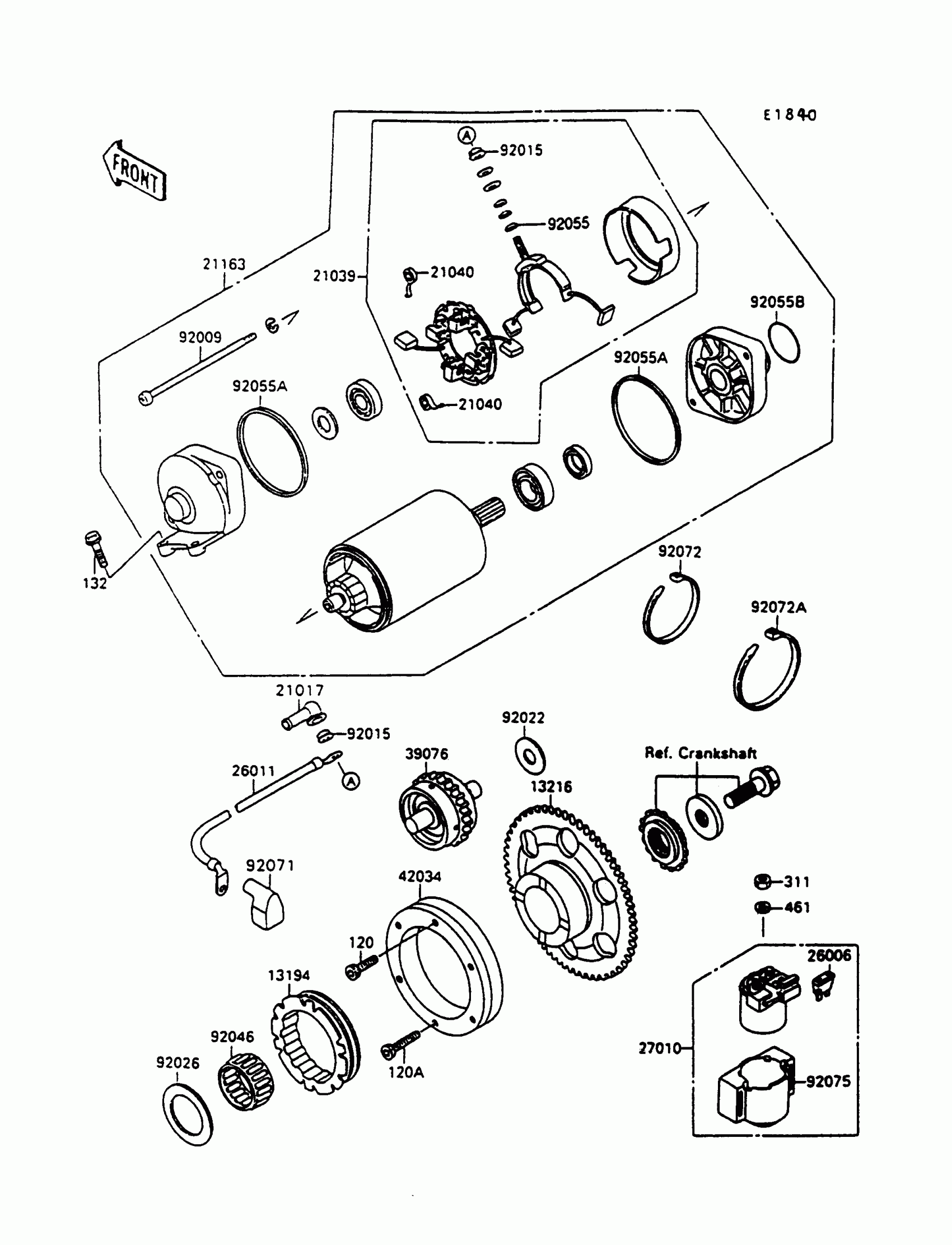

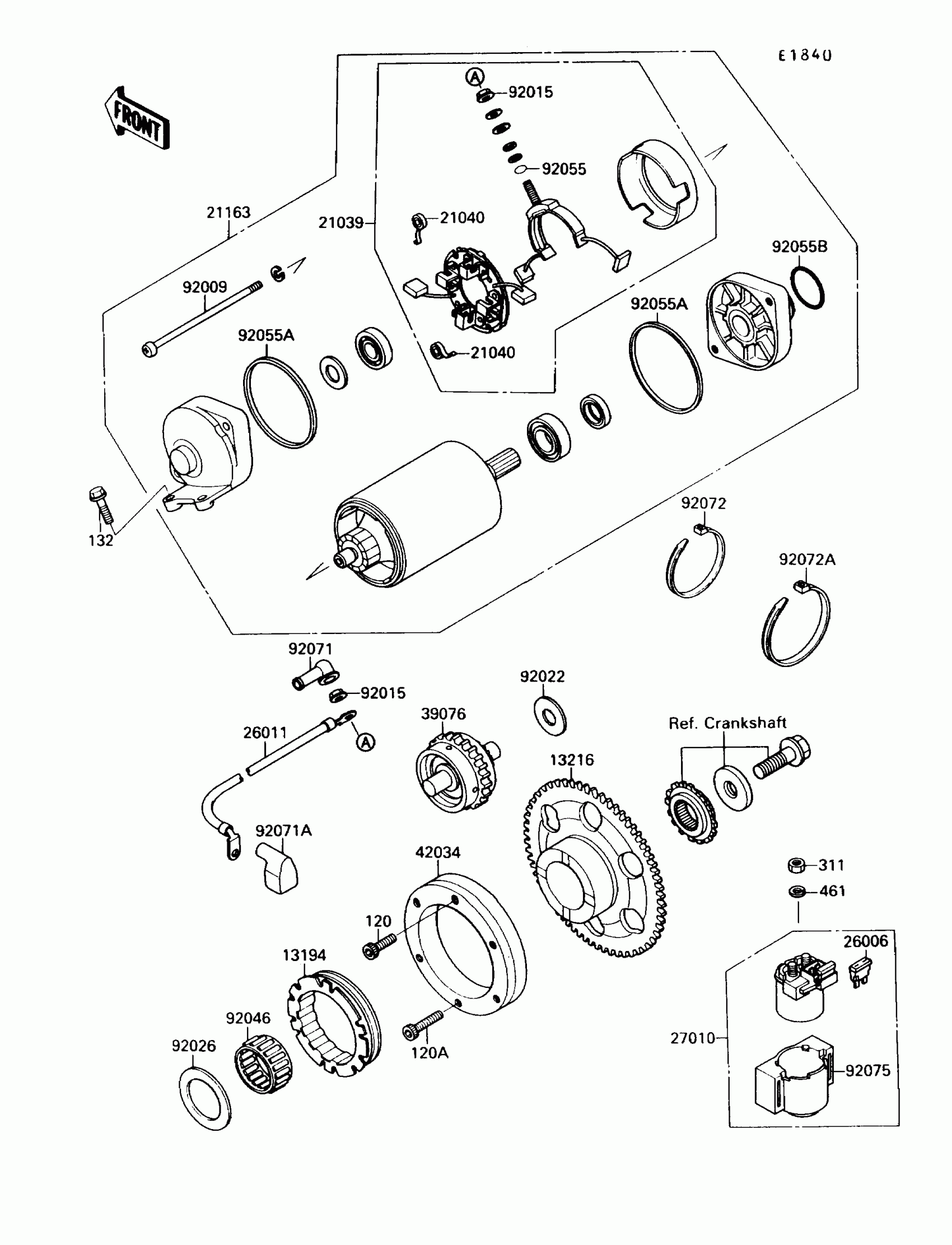

Find the part on the Starter Motor diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Vulcan 88 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13194

CLUTCH-ONEWAY

13194-1070

1
Out of stock

13216

GEAR-COMP,FREE WHEEL

13216-1115

1
Out of stock

21039

BRUSH,CARBON

21039-1060

1

$85.95

In stock

21040

SPRING-BRUSH

21040-1055

1

$8.24

In stock

21163

STARTER-ELECTRIC

21163-1109

1

$719.24

In stock

26006

1

$4.39

In stock

26011

WIRE-LEAD,STARTER MOTOR

26011-1403

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1213

1
Out of stock

39076

1

$294.64

In stock

42034

COUPLING

42034-1093

1

$103.55

In stock

92009

SCREW

92009-1443

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,12X27.5X1.0

92022-1852

1
Out of stock

92026

SPACER

92026-1070

1

$10.92

In stock

92046

BEARING-NEEDLE,K30X35X20

92046-1171

1
Out of stock

92055

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055A

1

$9.58

In stock

92055B

RING-O,37MM

92055-1393

1
Out of stock

92071

1

$7.48

In stock

92071A

GROMMET,TERMINAL

92071-1130

1

$10.85

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92072A

BAND,L=365

92072-1197

1

$7.71

In stock

92075

DAMPER,MAGNETIC SWITCH

92075-1863

1
Out of stock

120

BOLT-SOCKET,6X20

120S0620

1
Out of stock

120A

BOLT-SOCKET,6X30

120S0630

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132E0625

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
